A/C Heater Control: Description

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Both the manual temperature control (MTC) and the automatic temperature control (ATC) heating-A/C systems use electrical controls. These controls provide the vehicle operator with a number of setting options to help control the climate and comfort within the vehicle.

The A/C-heater control for the MTC system or ATC system is located to the right of the instrument cluster on the instrument panel. See Fig 1 and Fig 2.

The MTC A/C-heater control panel contains a rotary-type temperature control switch, a rotary-type mode control switch and a rotary-type blower motor speed switch. The A/C-heater control also has a push button to activate the rear window defogger (EBL) system and to turn the A/C on.

Fig 1: MTC Control Head

Courtesy of DAIMLERCHRYSLER CORP.

The ATC A/C-heater control panel contains push-button mode and temperature control switches and a rotary-type blower motor speed switch. The A/C-heater control also has a push button to activate the rear window defogger (EBL) system and to turn the A/C on.

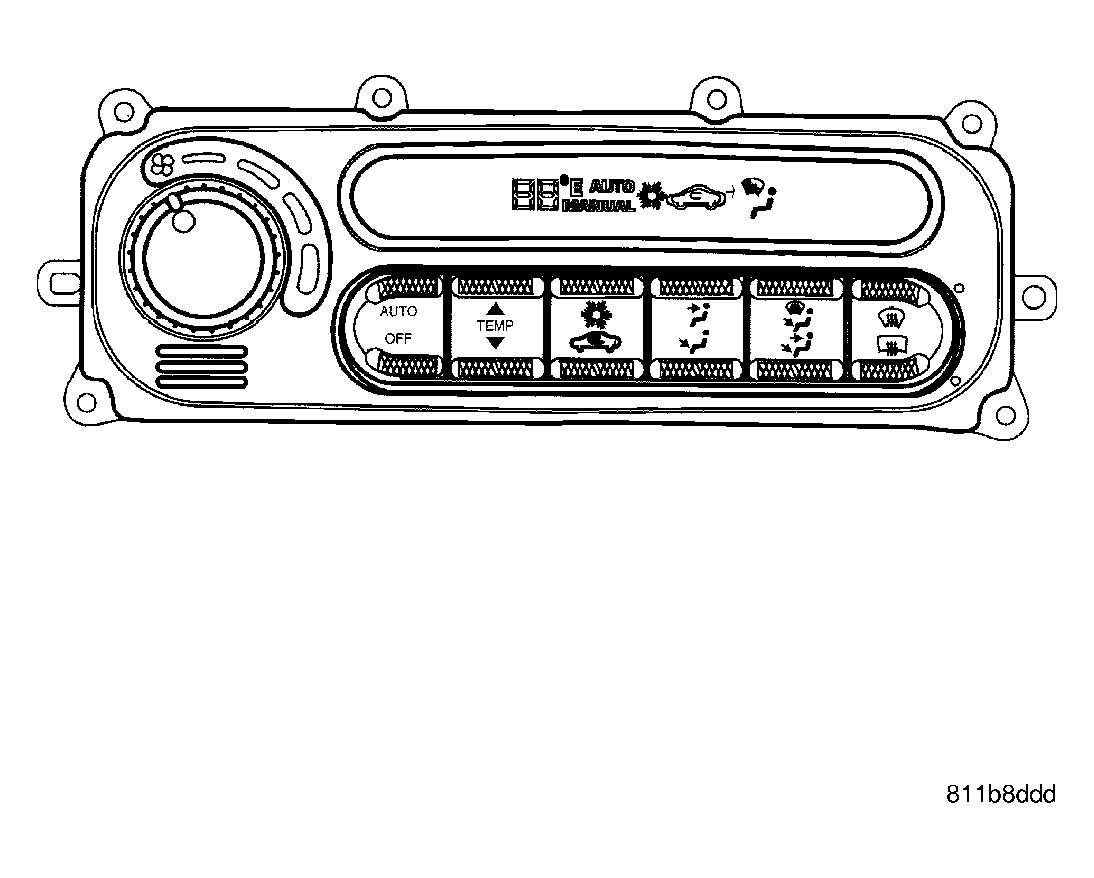

Fig 2: Automatic A/C-Heater Control

Courtesy of DAIMLERCHRYSLER CORP.

The A/C-heater control cannot be repaired and, if faulty or damaged, it must be replaced. The illumination lamps for the A/C-heater control are available for service replacement.
