A/C Clutch Relay: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable.
  2. Open the cover of the power distribution center (PDC) located in the engine compartment. See Fig 1.
    NOTE: Refer to the fuse and relay layout map on the inner surface of the PDC cover for A/C clutch relay identification and location.
  3. Remove the A/C clutch relay from the PDC.

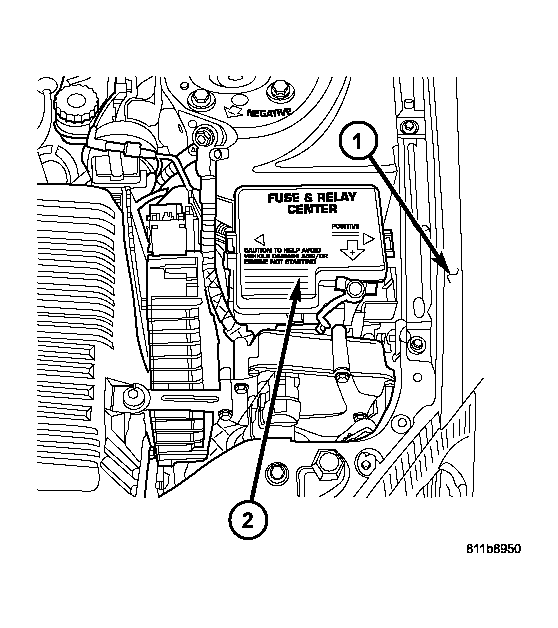

Fig 1: A/C Compressor Clutch Relay
GC0031831Courtesy of DAIMLERCHRYSLER CORP.
1 - FRONT FENDER
2 - POWER DISTRIBUTION CENTER (PDC)
