Master Cylinder: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove vehicle wiring harness connector from brake fluid level switch in side of master cylinder brake fluid reservoir. See Fig 1.

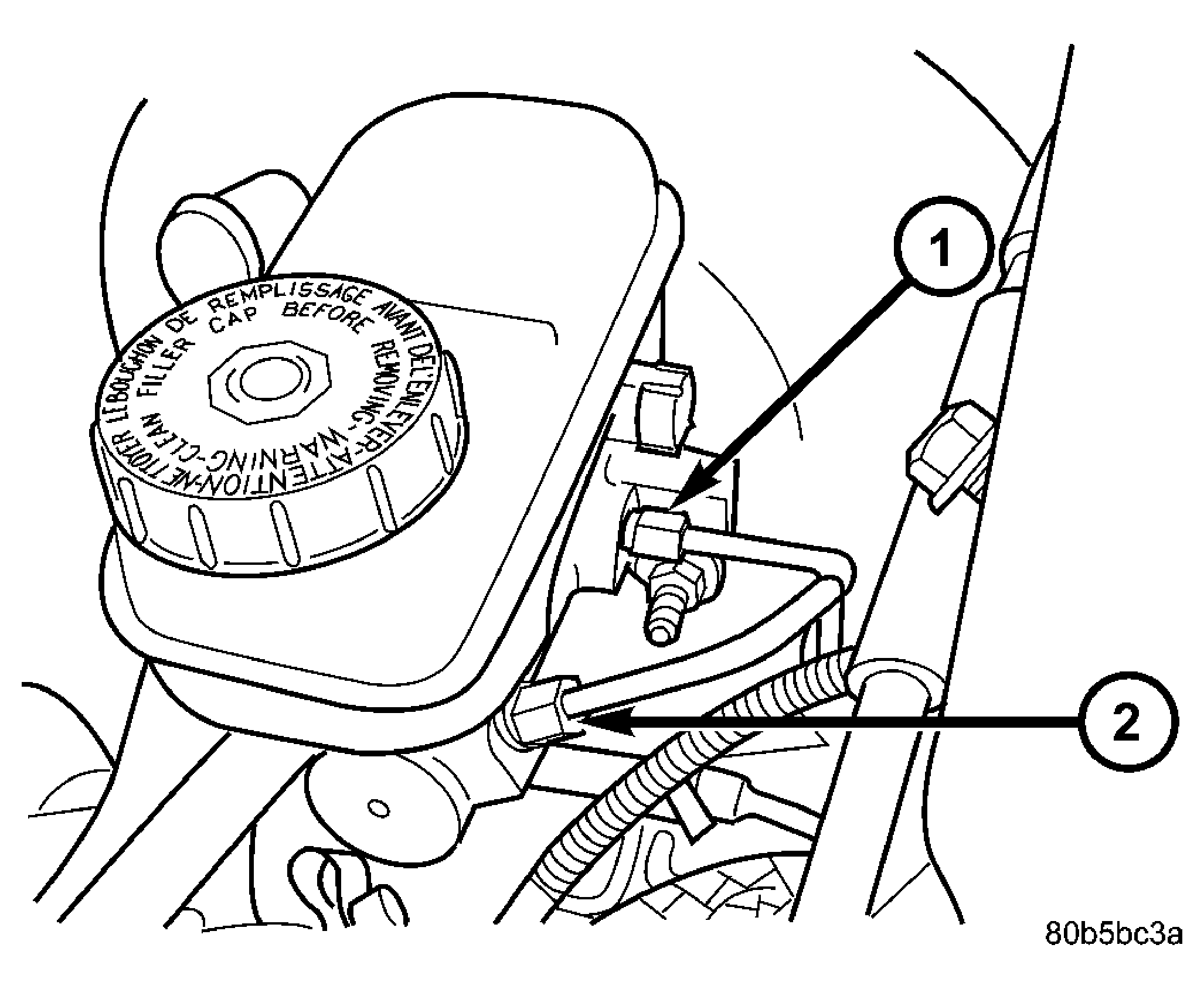

    Fig 1: Brake Fluid Level Switch
    GC0019177Courtesy of DAIMLERCHRYSLER CORP.
    1 - BRAKE FLUID LEVEL SWITCH
    2 - WIRING CONNECTOR
    3 - FLUID RESERVOIR
  2. Disconnect the primary and secondary brake tubes from master cylinder outlet ports. See Fig 2. Install plugs at open brake tube outlets on master cylinder assembly.
    Fig 2: Primary And Secondary Brake Tubes
    GC0019225Courtesy of DAIMLERCHRYSLER CORP.
    1 - PRIMARY BRAKE TUBE
    2 - SECONDARY BRAKE TUBE
  3. Using Mopar(R) Brake Parts Cleaner or equivalent, clean area where master cylinder attaches to booster.
  4. Remove the 2 nuts attaching master cylinder assembly to power brake vacuum booster.
  5. Slide master cylinder assembly straight off its mounting studs on power brake vacuum booster.
