Junction Block: Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the junction block with mounting bracket onto the lower radiator support. Install and tighten the mounting bolts to 38 N.m (28 ft. lbs.) torque.

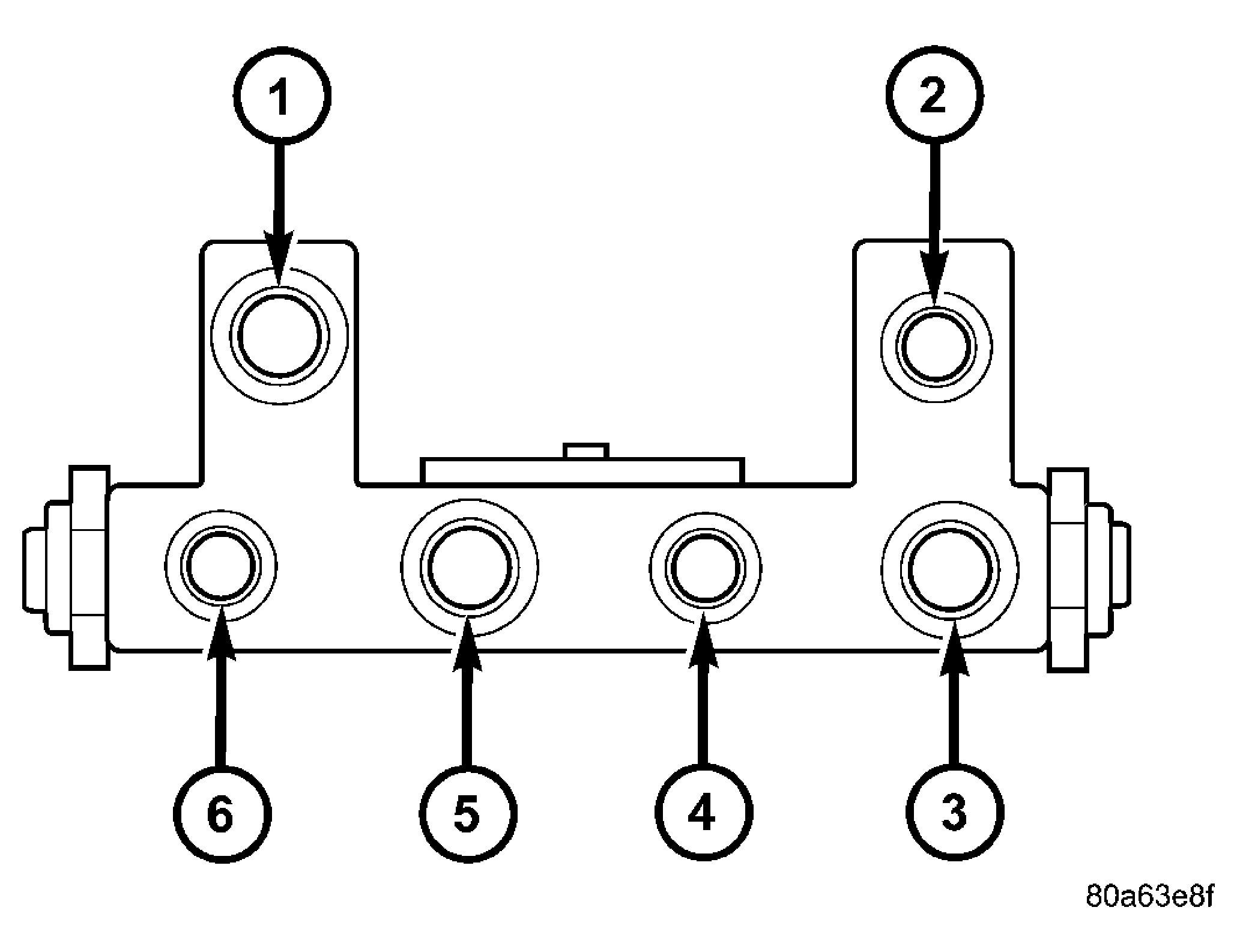

  2. Install the four chassis brake tubes (going to each brake) to the junction block. See Figure. Tighten the tube fittings to 17 N.m (145 in. lbs.) torque with the aid of a crow foot wrench.
  3. Install the two brake tubes coming from the primary and secondary master cylinder ports to the top rear corners of the junction block. See Figure. Tighten the tube fittings to 17 N.m (145 in. lbs.) torque with the aid of a crow foot wrench.
  4. Install the air cleaner housing. Refer to appropriate engine OVERHAUL article.
  5. Remove the brake pedal holding tool.
  6. Reconnect the battery negative cable.
  7. Bleed the base brake system. (Refer to BRAKES - BASE - STANDARD PROCEDURE)
