Standard Procedure - Brake Drum Machining
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
If a brake drum is deeply scored or warped, it can be machined on a brake lathe equipped to machine brake drums. Follow the manufacturers instructions on the machining procedure.
Measure the brake drum inside diameter before machining. If machining the drum will cause the drum to exceed maximum allowable diameter, do not machine the brake drum. It needs to be replaced.
CAUTION:
Do not machine the brake drum if it will cause the drum to exceed maximum allowable diameter.

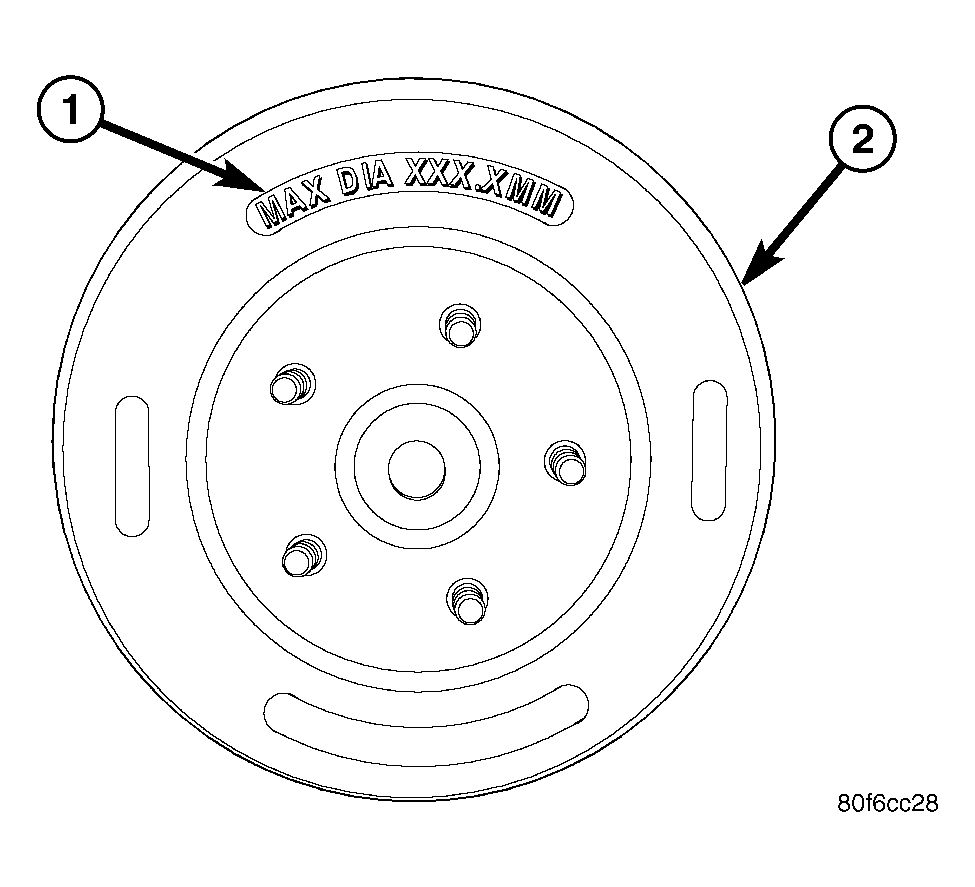

All brake drums are marked with the maximum allowable brake drum inside diameter. See Fig 1.
| 1 - MAXIMUM DIAMETER IDENTIFICATION 230.6 MM (9.079 IN.) |
| 2 - BRAKE DRUM |
When machining, make sure the final finish feed cut is set to fine in order to avoid a screw effect on the brake shoes when the brakes are applied. This final feed cut specification varies from lathe manufacturer to lathe manufacturer.
