Brake Fluid Level Switch: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Remove wiring harness connector from brake fluid reservoir level switch on the side of the reservoir. See Fig 1.

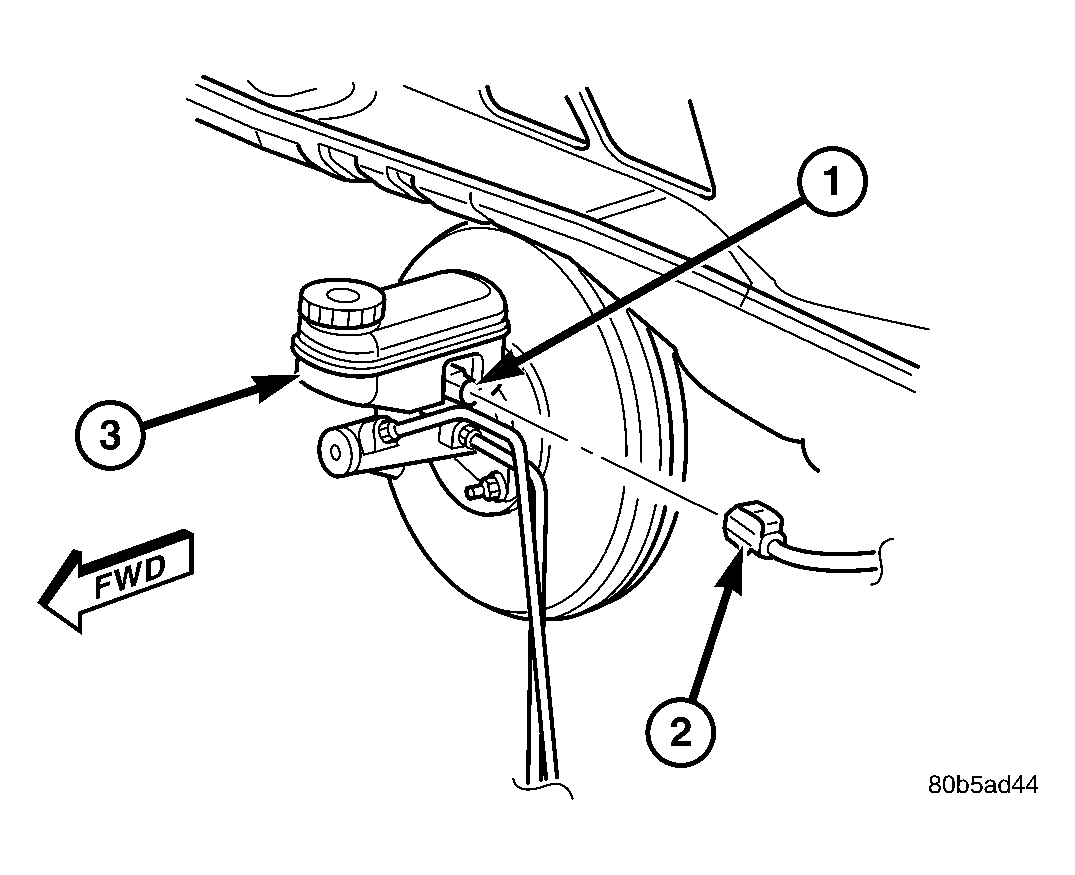

Fig 1: Brake Fluid Level Switch

Courtesy of DAIMLERCHRYSLER CORP.

1 - BRAKE FLUID LEVEL SWITCH

2 - WIRING CONNECTOR

3 - FLUID RESERVOIR

Using a small screwdriver, release the retaining tabs on the opposite end of brake fluid level switch (on right side of reservoir) securing it to the reservoir. See Fig 2.

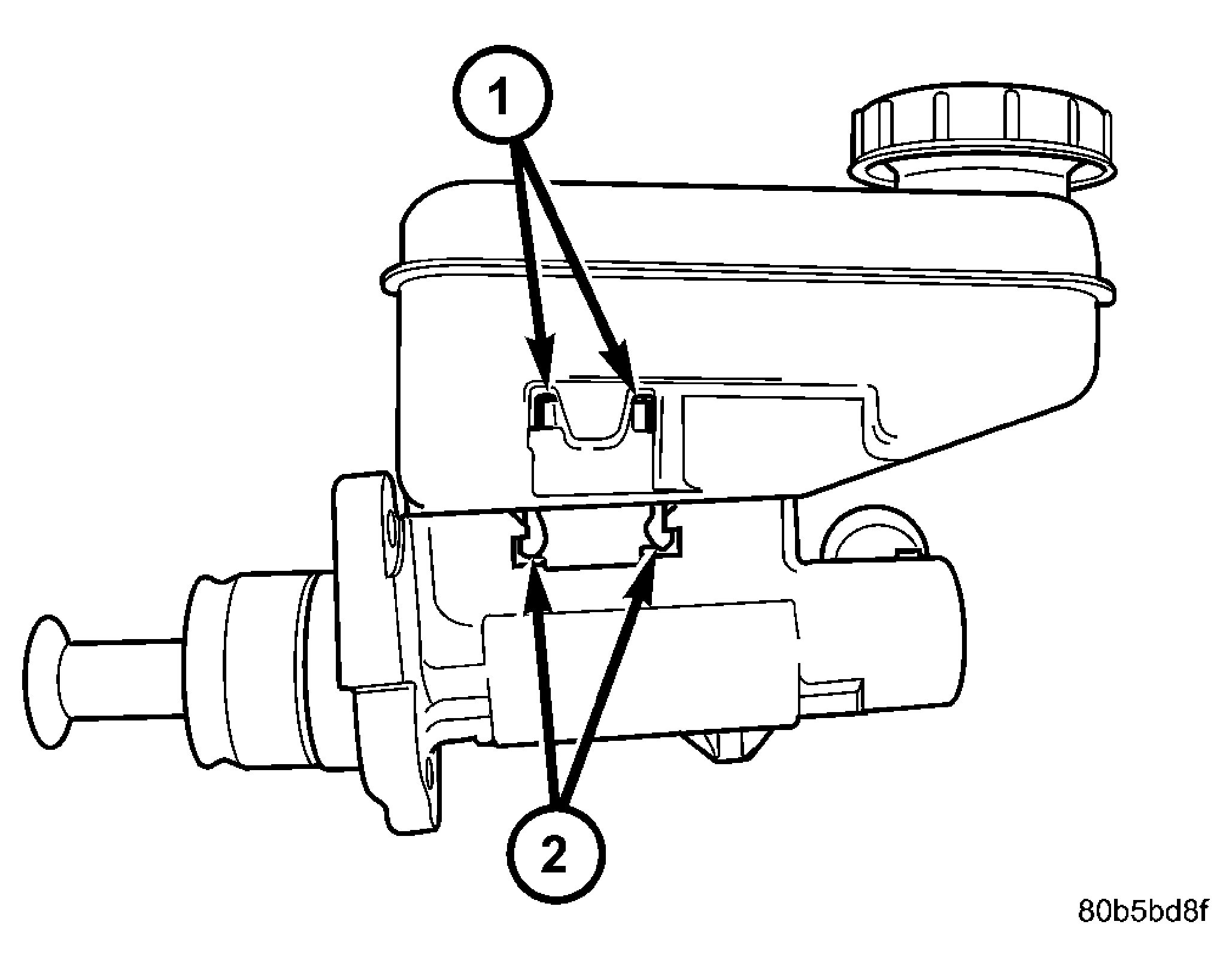

Fig 2: Retaining Tabs

Courtesy of DAIMLERCHRYSLER CORP.

1 - RETAINING TABS FOR FLUID LEVEL SWITCH

2 - RETAINING TABS FOR FLUID RESERVOIR

With retaining tabs compressed, grasp the connector end of brake fluid level switch and pull it out of master cylinder brake fluid reservoir.
