Rear Suspension CROSSMEMBER: Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear suspension crossmember, lateral arms and rear stabilizer bar back into the vehicle as an assembly.
  2. With the aid of a helper position rear suspension crossmember back in vehicle and support it using the transmission jack.

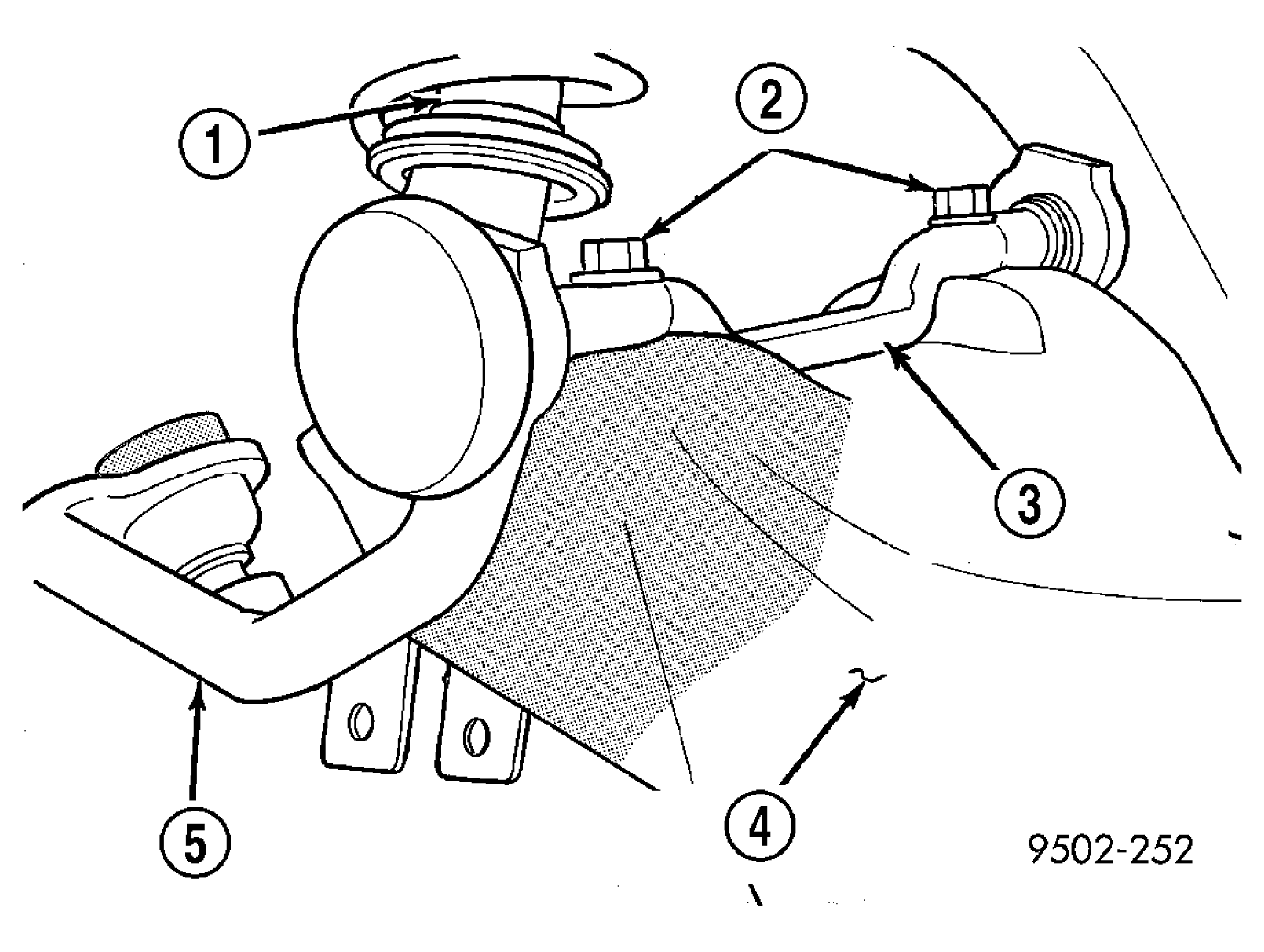

  3. Align the upper control arm pivot bars with the mounting holes in the rear suspension crossmember. Install and tighten the 4 pivot bar to crossmember attaching bolts to 107 N.m (80 ft. lbs.) torque. See Figure.
    CAUTION: While raising crossmember use care not to pinch any lines
  4. Using transmission jack, raise rear suspension crossmember up to the rear frame rails and loosely install the 4 attaching bolts.

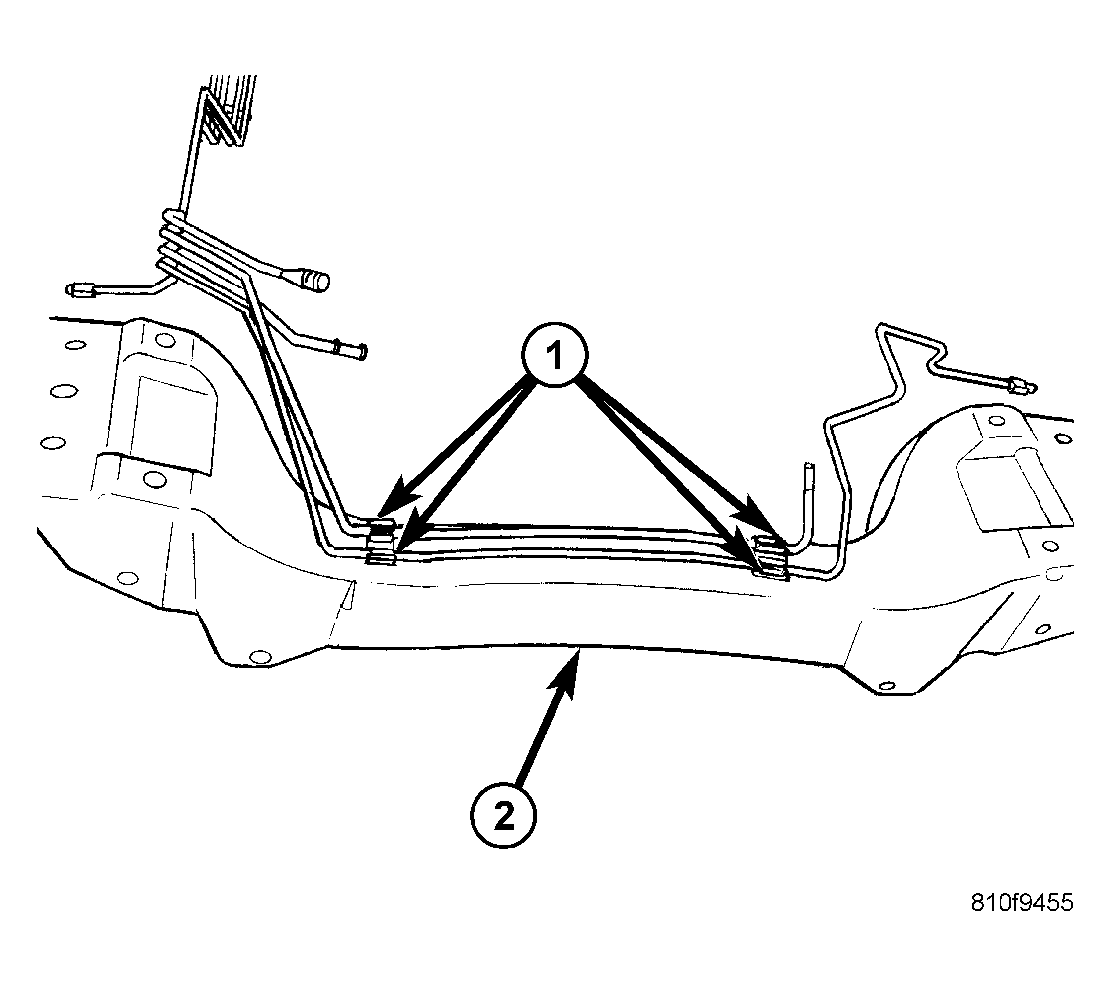

  5. Connect line bundle clips to crossmember. See Figure.
  6. Position a drift of the appropriate size into the positioning hole in each side of rear suspension crossmember and locating holes in the frame rail of the body. See Fig 1. This is required to properly position rear suspension crossmember side-to-side and front-to-rear in the body of the vehicle. Then tighten the 4 crossmember to frame rail attaching bolts to 95 N.m (70 ft. lbs.) torque. Remove drifts from rear suspension crossmember.

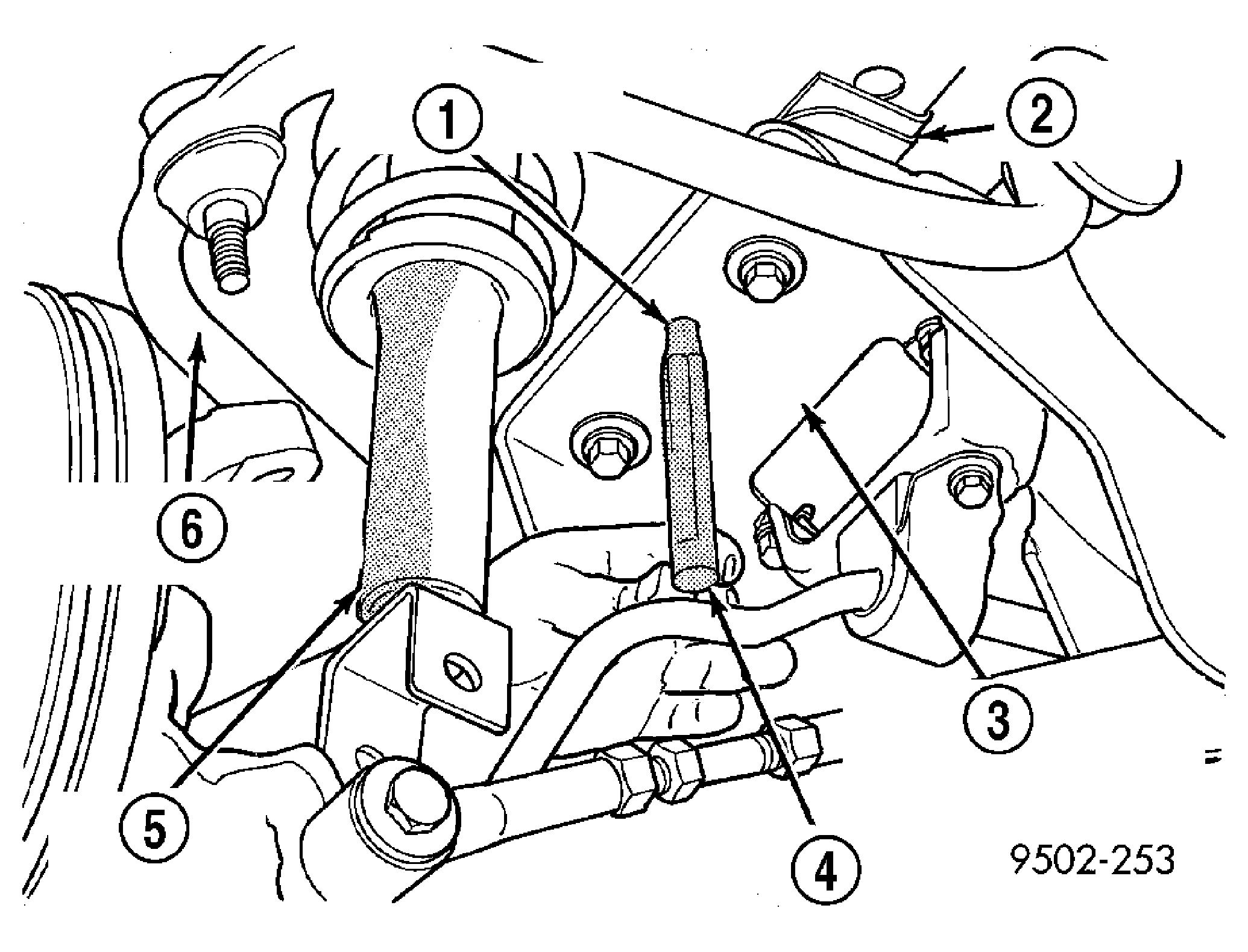

    Fig 1: Locating Rear Suspension Crossmember In Vehicle
    GC0019161Courtesy of DAIMLERCHRYSLER CORP.
    1 - POSITIONING HOLE
    2 - FRAME RAIL
    3 - REAR SUSPENSION CROSSMEMBER
    4 - DRIFT
    5 - SHOCK ABSORBER
    6 - UPPER CONTROL ARM
  7. Align lateral links with knuckles and install the lateral arm to knuckle attaching bolts. Tighten the 4 lateral arm to spindle attaching bolts to 95 N.m (70 ft. lbs.) torque.
  8. Remove transmission jack supporting rear suspension crossmember.

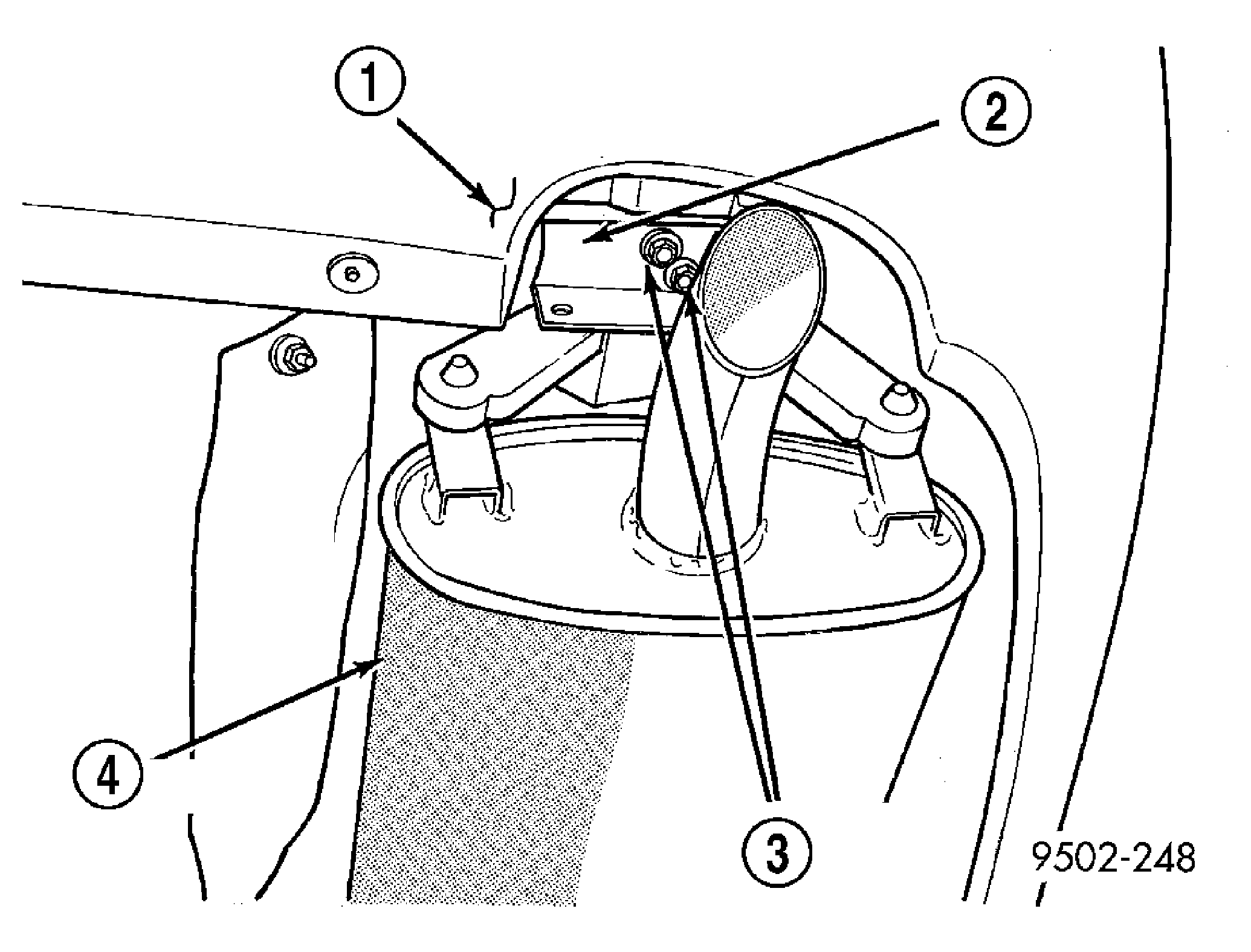

  9. Install muffler support bracket on rear frame rail. See Figure. Install rear exhaust pipe hanger on rear suspension crossmember. See Figure.

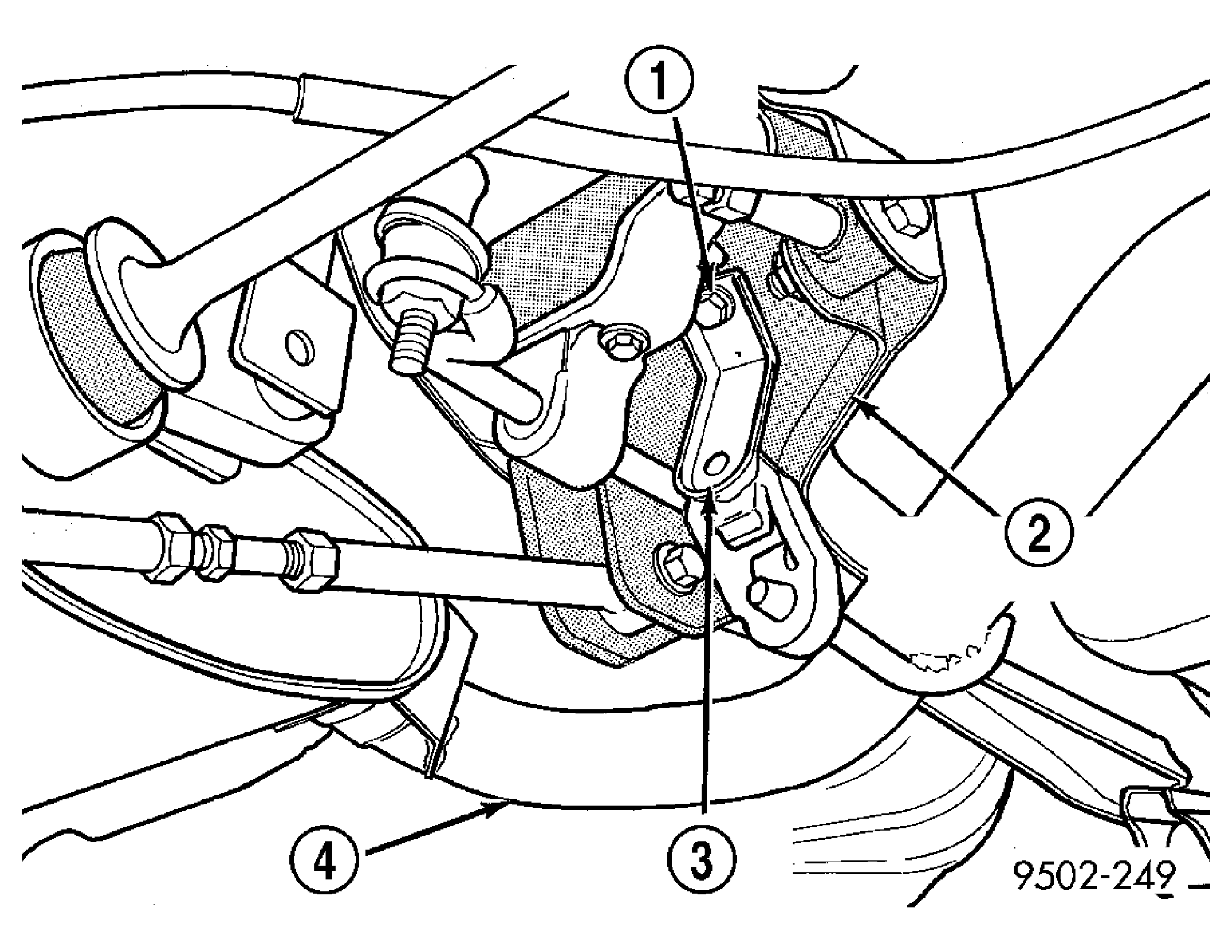

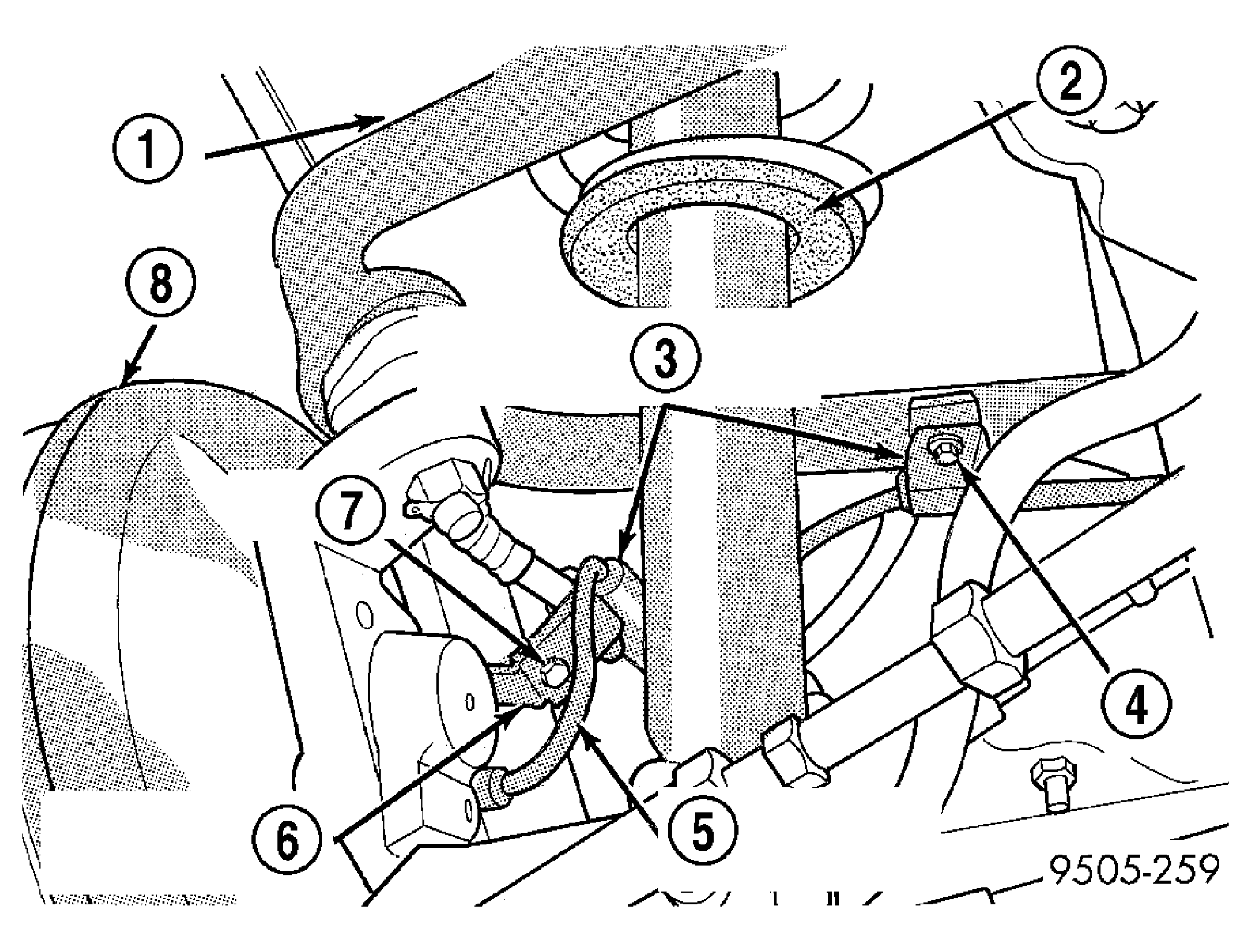

  10. If vehicle is equipped with antilock brakes, install the wheel speed sensor cable routing clip on upper control arm mounting bracket. See Figure. Install and securely tighten attaching bolt.
  11. Install wheel and tire assembly on vehicle. Tighten the wheel mounting stud nuts in proper sequence until all nuts are torqued to half specification. Then repeat the tightening sequence to the full specified 129 N.m (95 ft. lbs.) torque.
  12. Lower vehicle to the ground.
  13. Check and reset if required, rear wheel alignment to meet the preferred specifications.
