Removal - Sedan Jr-41
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
- Release decklid latch and open decklid.
- Remove left rear tail lamp and disengage license plate wire connector from tail lamp.
- Peel back trunk carpeting at tail lamps and remove nut and washer from fascia to quarter panel bracket. Discard nut and washer.
- Remove push-in fasteners attaching decklid slam bumpers to top of fascia.
- Remove push-in fastener attaching center of fascia to rear closure panel.

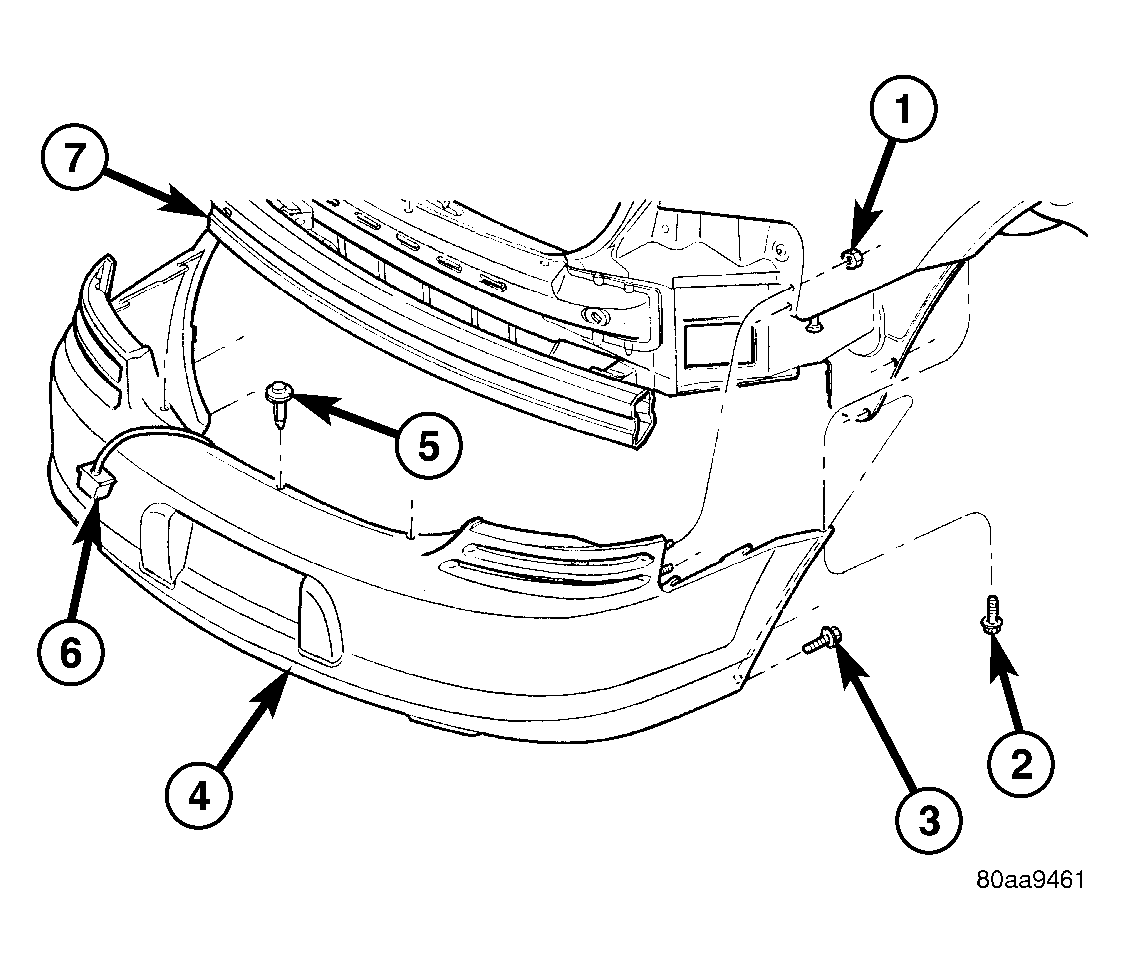

- Remove screws attaching fascia to rear wheelhouse splash shields. See Fig 1.
- Remove screws attaching fascia to quarter panel at the wheelhouse opening.
- Slide fascia rearward to disengage hooks holding fascia to bottom of quarter panel.
- Remove fascia from vehicle.
| 1 - NUT (FASCIA TO QUARTER PANEL) |
| 2 - SCREW AND WASHER (FASCIA TO QUARTER PANEL) |
| 3 - SCREW (FASCIA TO SPLASH SHIELD) |
| 4 - REAR FASCIA |
| 5 - PUSH PIN (FASCIA TO DECKLID OPENING REINFORCEMENT) |
| 6 - LICENSE PLATE LAMP HARNESS |
| 7 - BUMPER REINFORCEMENT |
