Removal - Convertible Jr-27

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release decklid latch and open decklid.
  2. Remove tail lamps.
  3. Remove push-in fasteners attaching decklid slam bumpers to top of fascia.
  4. Remove push-in fastener attaching center of fascia to rear closure panel.
  5. Remove screws attaching fascia to rear wheelhouse splash shields. See Fig 1.
  6. Remove screws attaching fascia to quarter panel at the wheelhouse opening.
  7. Slide fascia rearward to disengage hooks holding fascia to bottom of quarter panel.
  8. Remove fascia from vehicle.

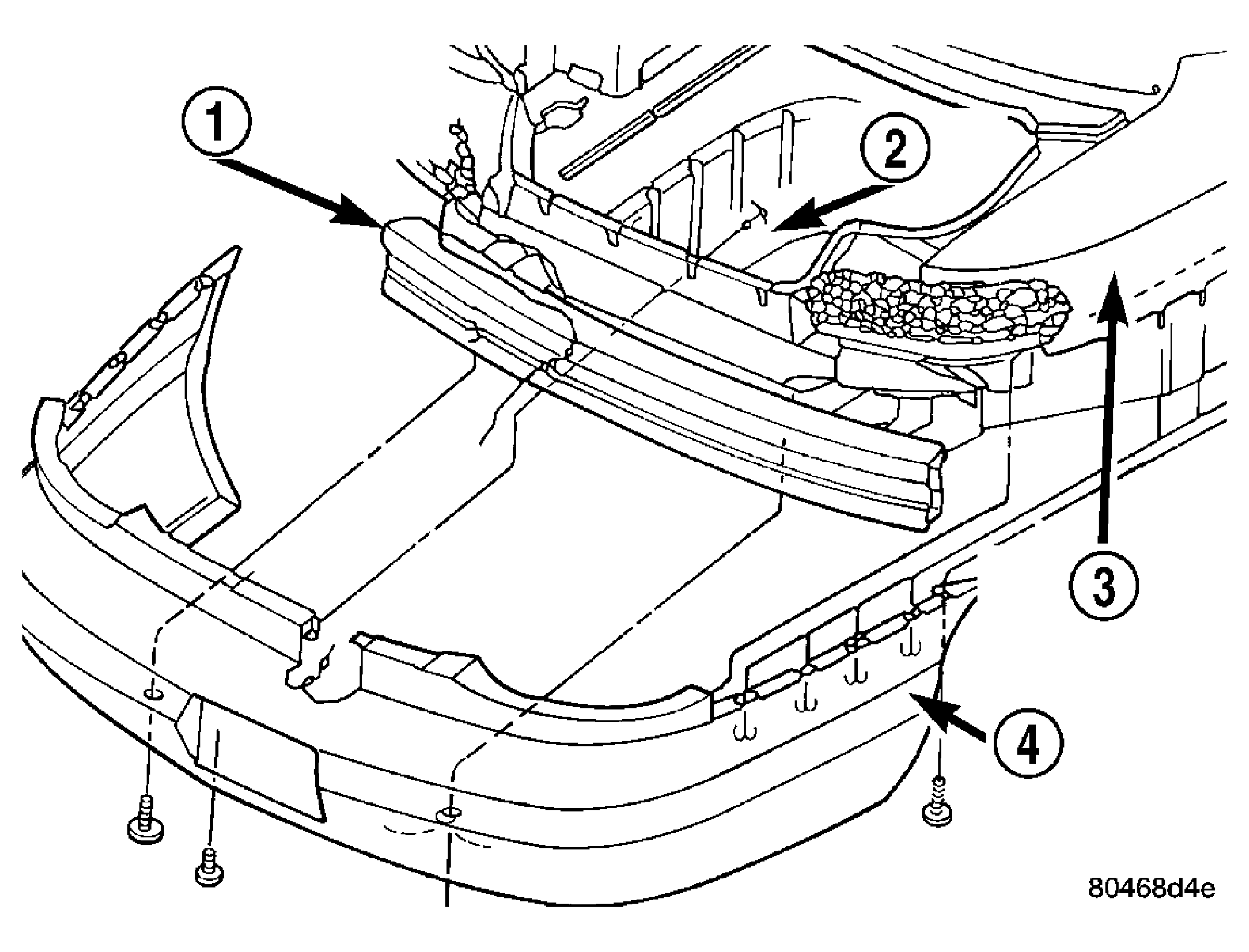

Fig 1: Rear Fascia
GC0031264Courtesy of DAIMLERCHRYSLER CORP.
1 - REAR BUMPER REINFORCEMENT
2 - TRUNK
3 - QUARTER PANEL
4 - REAR FASCIA
