Installation - Convertible Jr-27

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Ensure that the energy management foam is properly installed in rear fascia. See Fig 1.
Slide fascia forward to engage hooks attaching fascia to bottom of quarter panel.
Install push-in fastener attaching center of fascia to rear closure panel.
Install push-in fasteners attaching decklid slam bumpers to top of fascia.
Install screws attaching fascia to quarter panel at wheelhouse opening.
Install fasteners attaching fascia to rear wheelhouse splash shields.
Engage license plate wire connector to left tail lamp.
Install tail lamps.

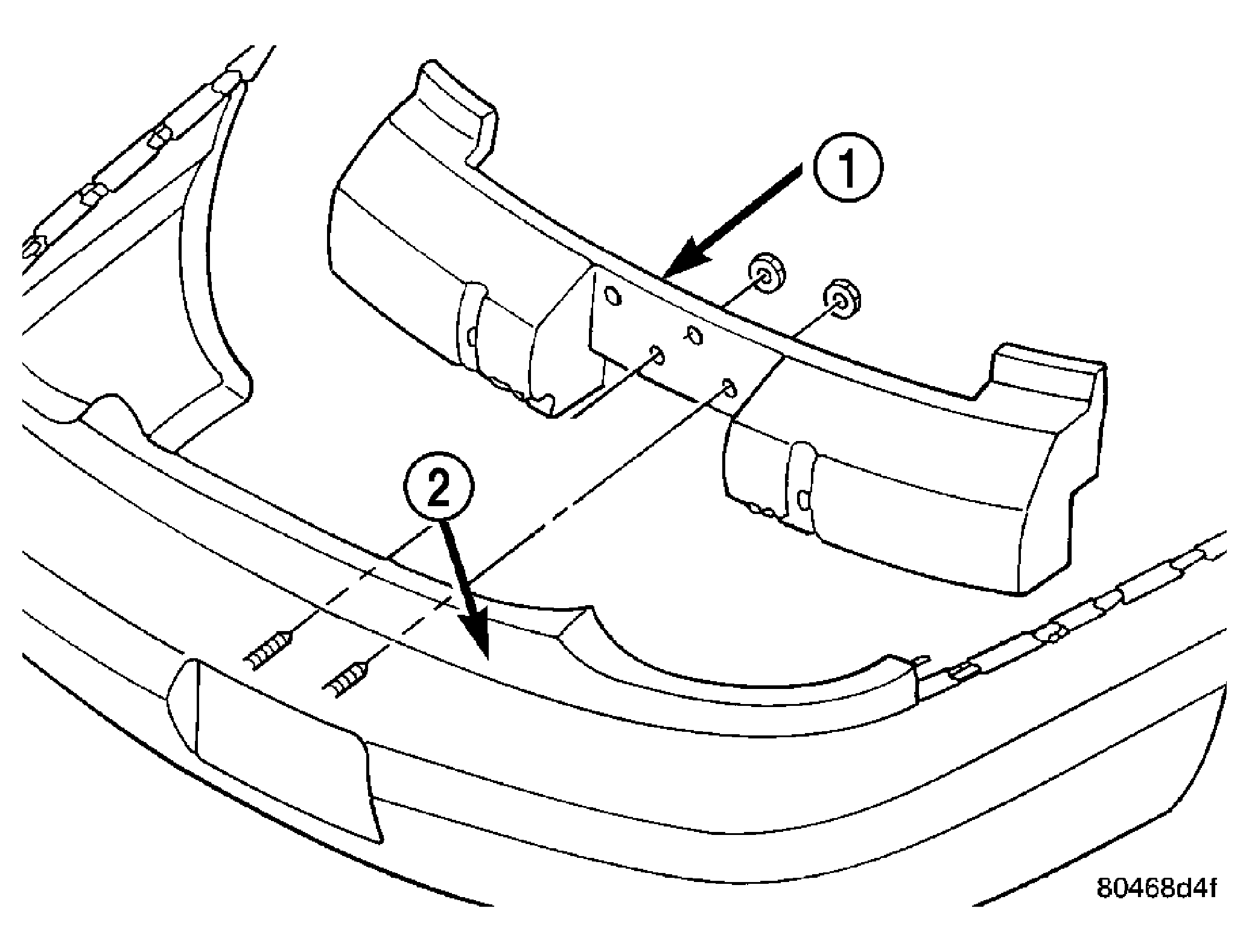

Fig 1: Rear Bumper Energy Management Foam

Courtesy of DAIMLERCHRYSLER CORP.

1 - ENERGY MANAGEMENT FOAM

2 - REAR BUMPER FASCIA
