Front Tow Hook: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise vehicle and support on safety stands.
  2. Remove bolts. See Fig 1.
  3. Remove tow hook from vehicle.

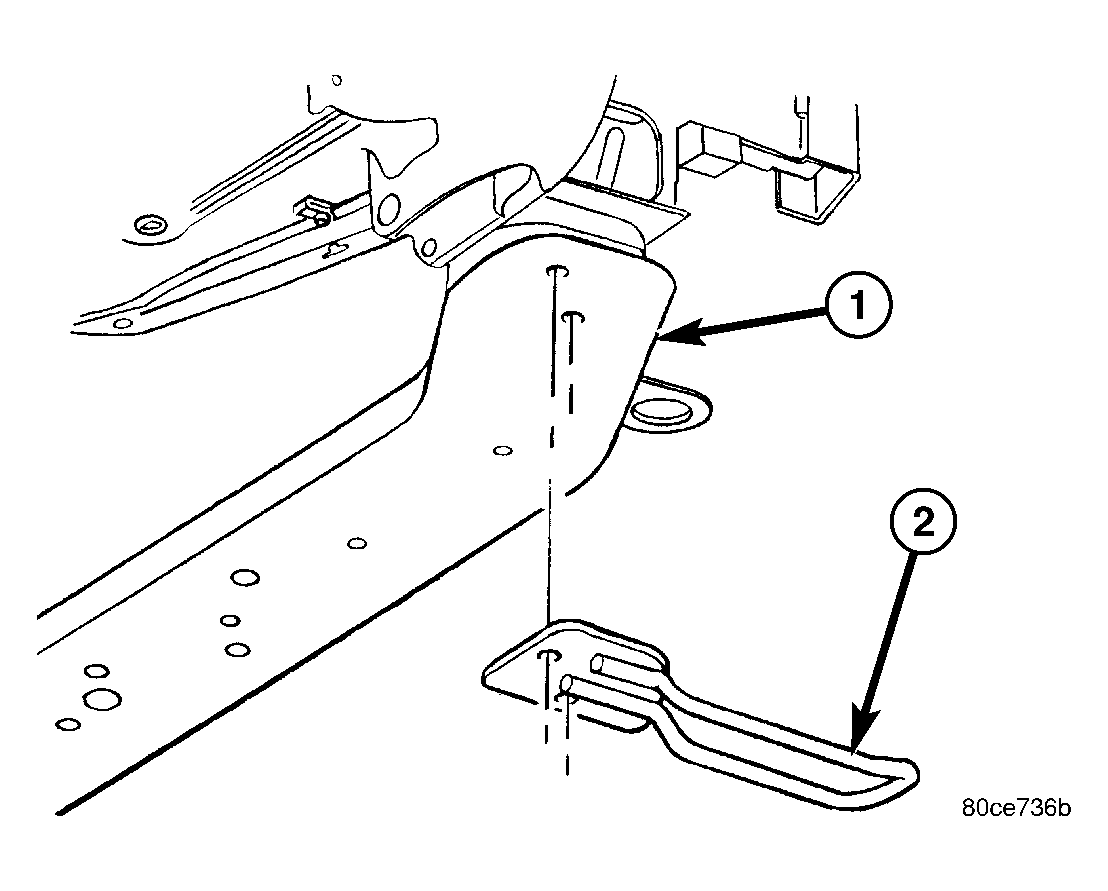

Fig 1: Front Tow Hook
GC0031280Courtesy of DAIMLERCHRYSLER CORP.
1 - FRONT SUB DECKING PALLET
2 - TOW HOOK (RECOVERY BRACKET)
