Installation - Sedan Jr-41

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure that energy management foam is properly installed in front fascia.
  2. Engage fog lamp wire connector to body wire harness, if equipped.

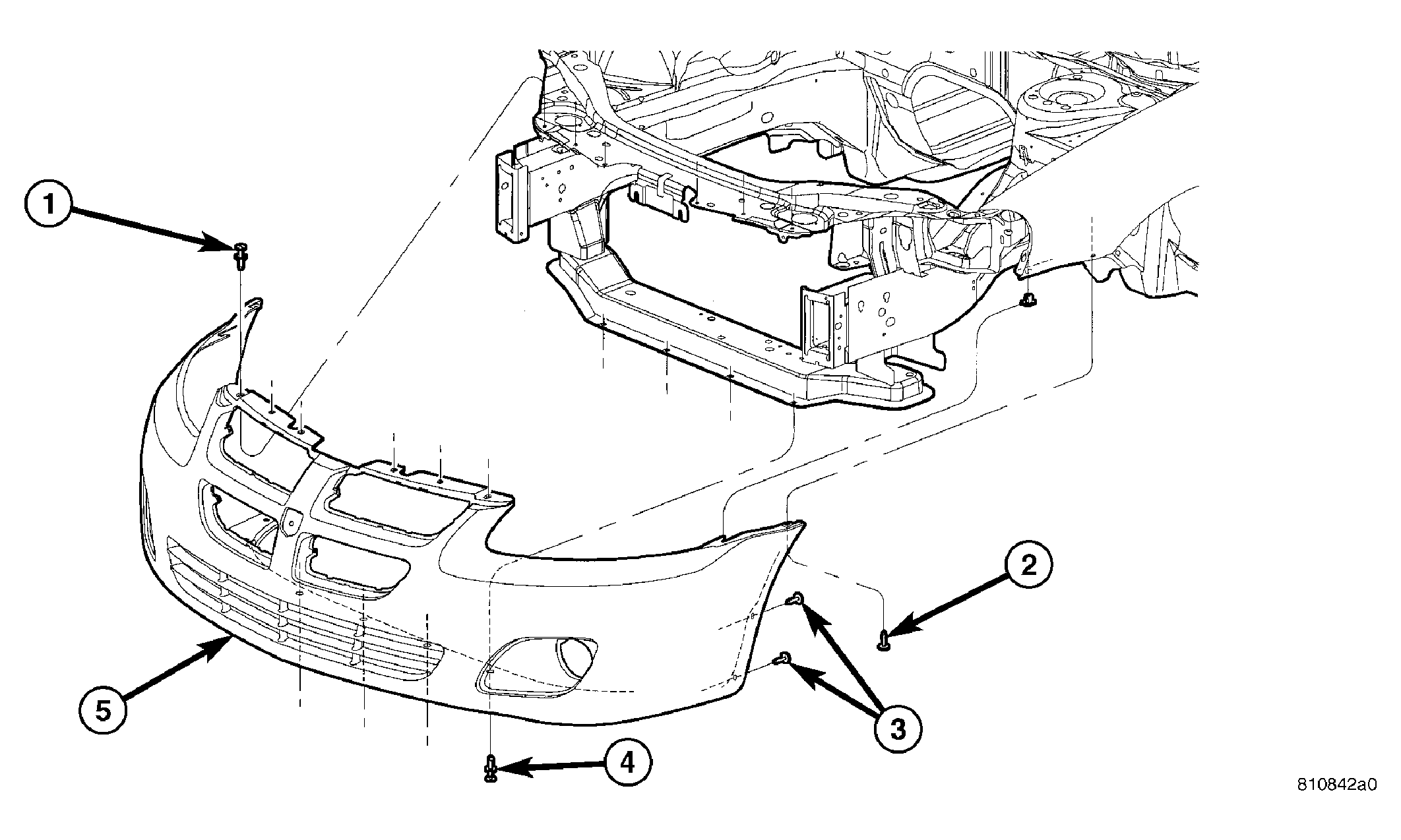

  3. Place fascia on position on vehicle. See Figure.
  4. Install fasteners attaching fascia to front fenders.
  5. Install fasteners attaching bottom of fascia to radiator closure panel and brake ducts.
  6. Install fasteners attaching top of fascia to upper crossmember.
  7. Install front wheelhouse splash shields.
