Installation - Convertible Jr-27
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
- Ensure that energy management foam is properly installed in front fascia. See Fig 1.
- Engage fog lamp wire connectors to back of fog lamps, if so equipped.

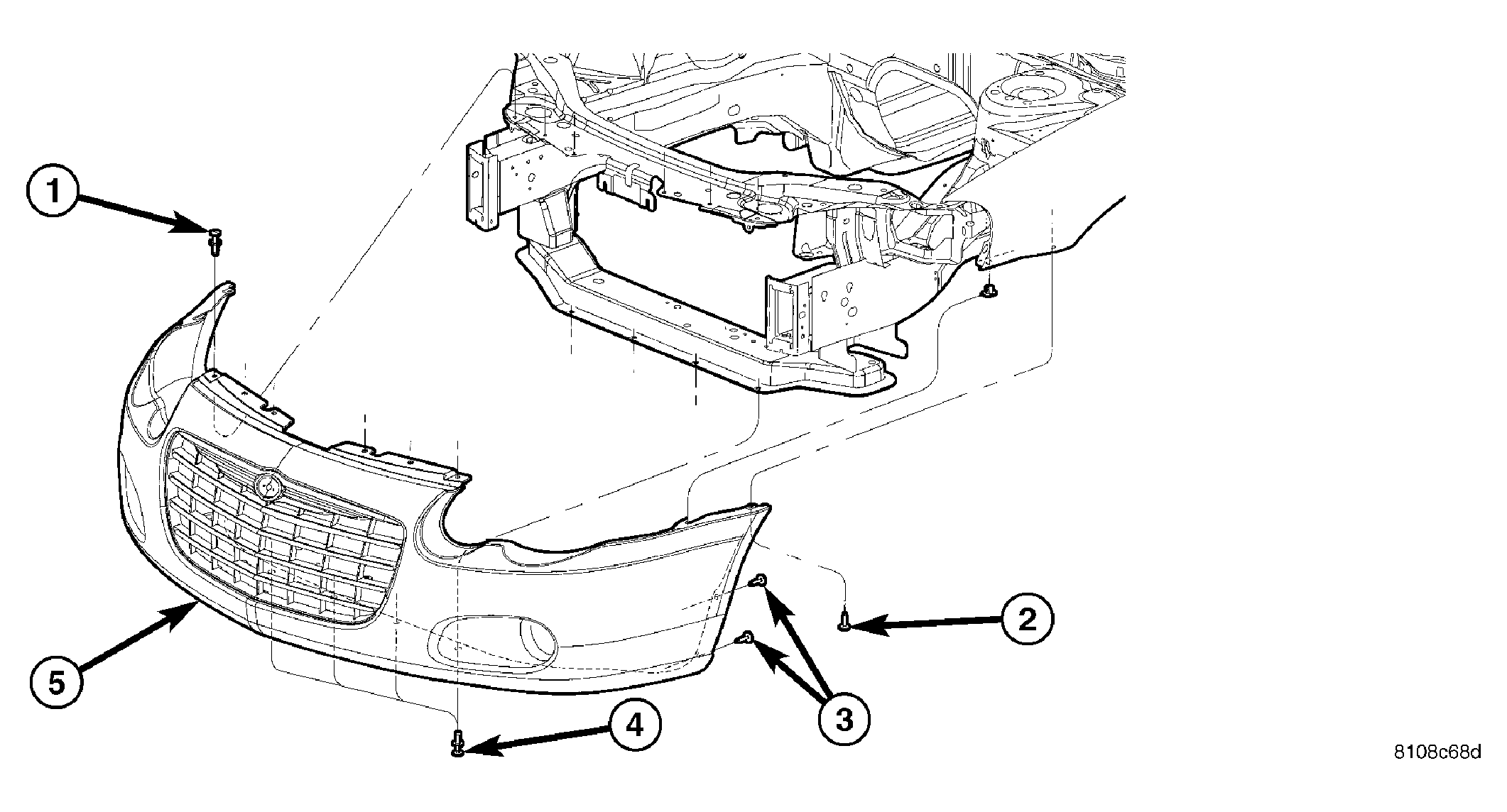

- Position fascia on vehicle and slide rearward, being careful to ensure that the grille slides under hood latch. See Figure.
- Install fasteners attaching bottom of fascia to radiator closure panel and brake ducts.
- Install fasteners attaching top of fascia to upper crossmember.
- Install front wheelhouse splash shields.
| 1 - FRONT BUMPER ENERGY MANAGEMENT FOAM |
| 2 - FRONT FASCIA |
