Vehicle Preparation
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
Position the vehicle on a level work surface. Using screw or bottle jacks, adjust the vehicle PLP heights to the specified dimension above a level work surface. Vertical dimensions can be taken from the work surface to the locations indicated were applicable.
FRAME VIEW INDEX
| DESCRIPTION | FIGURE |
|---|---|

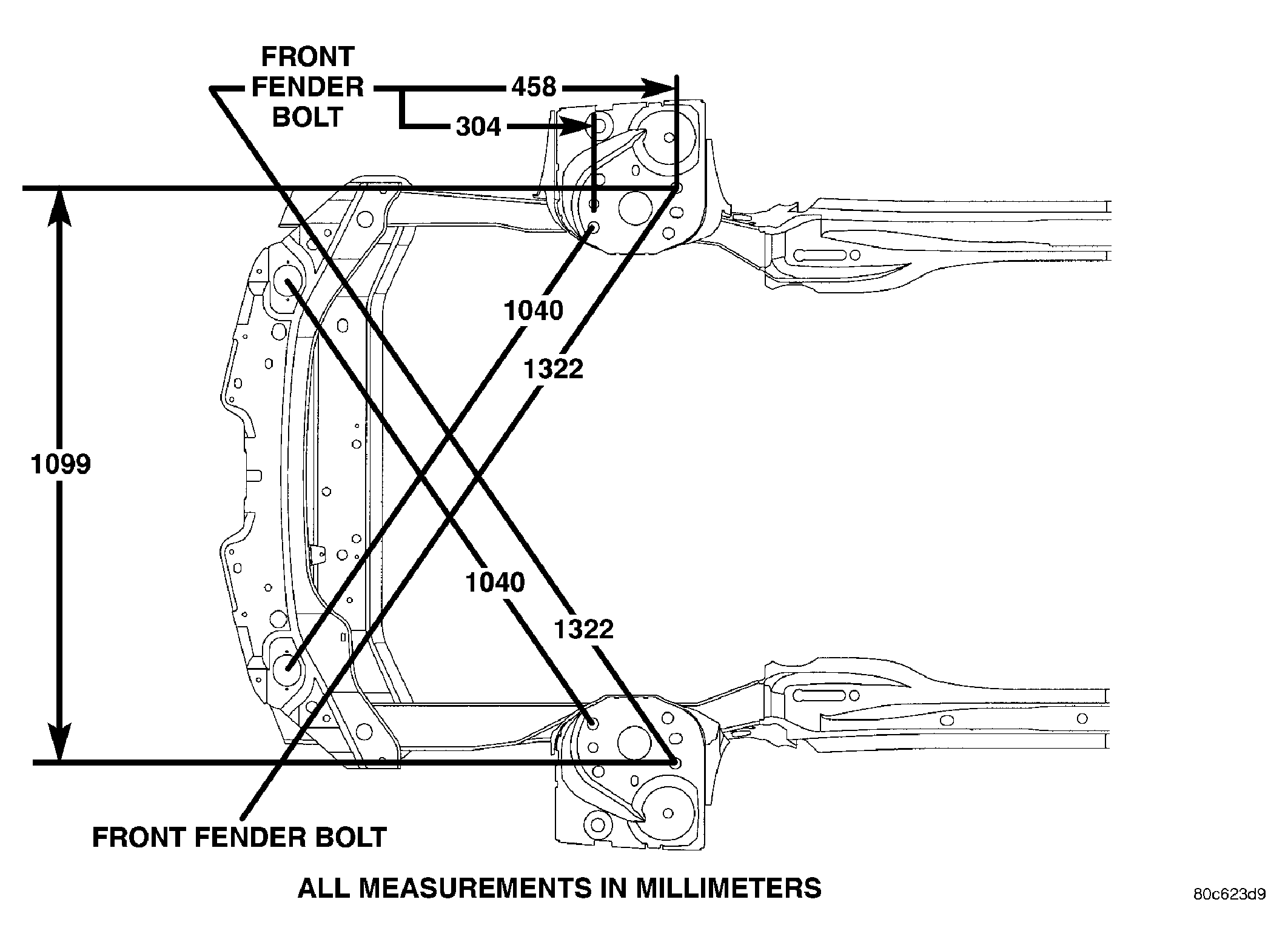

| ENGINE COMPARTMENT TOP VIEW | Fig 1. |

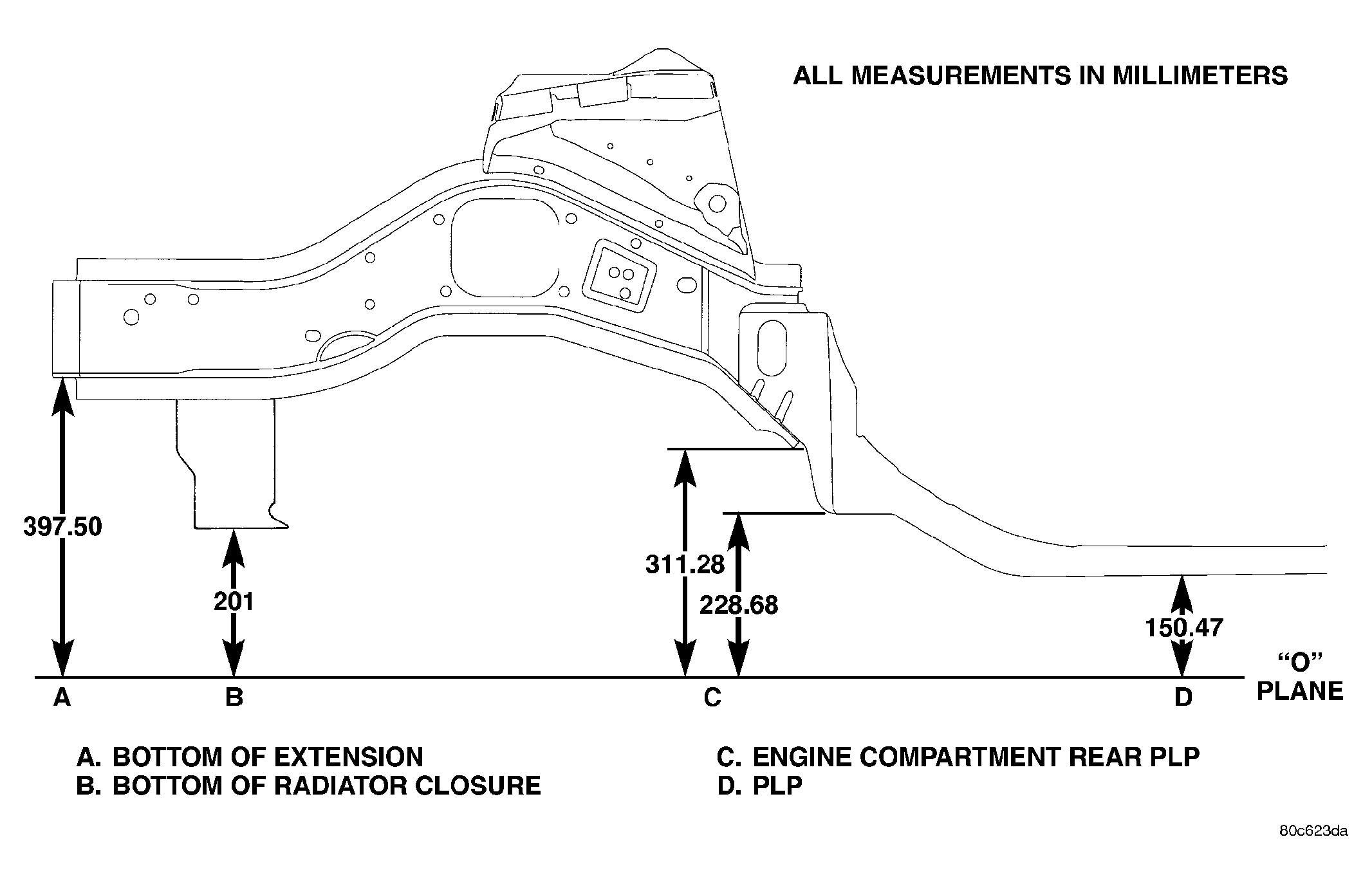

| ENGINE COMPARTMENT SIDE VIEW | Fig 2. |

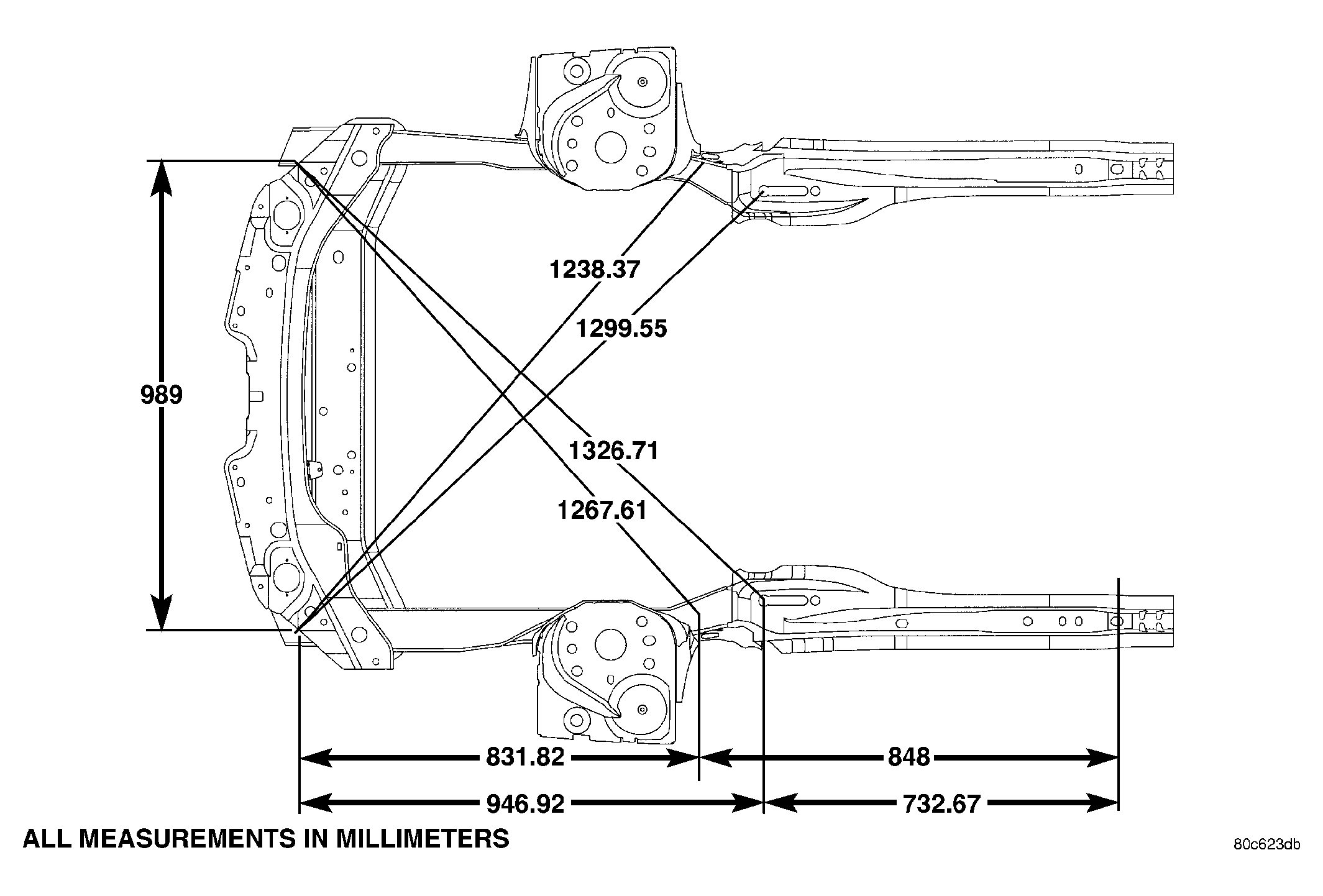

| FORWARD FRAME SECTION BOTTOM VIEW | Fig 3. |

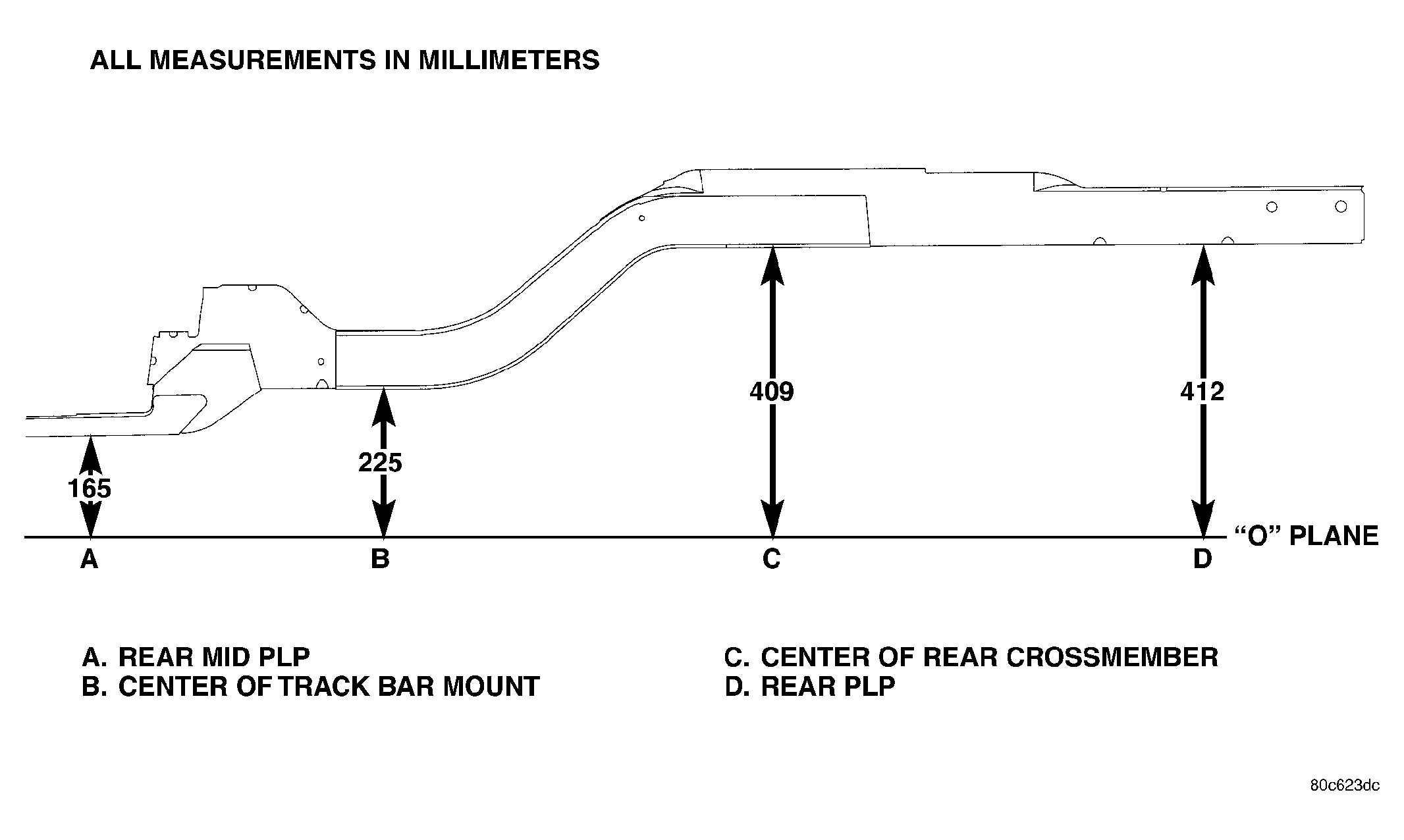

| REAR FRAME SECTION SIDE VIEW | Fig 4. |

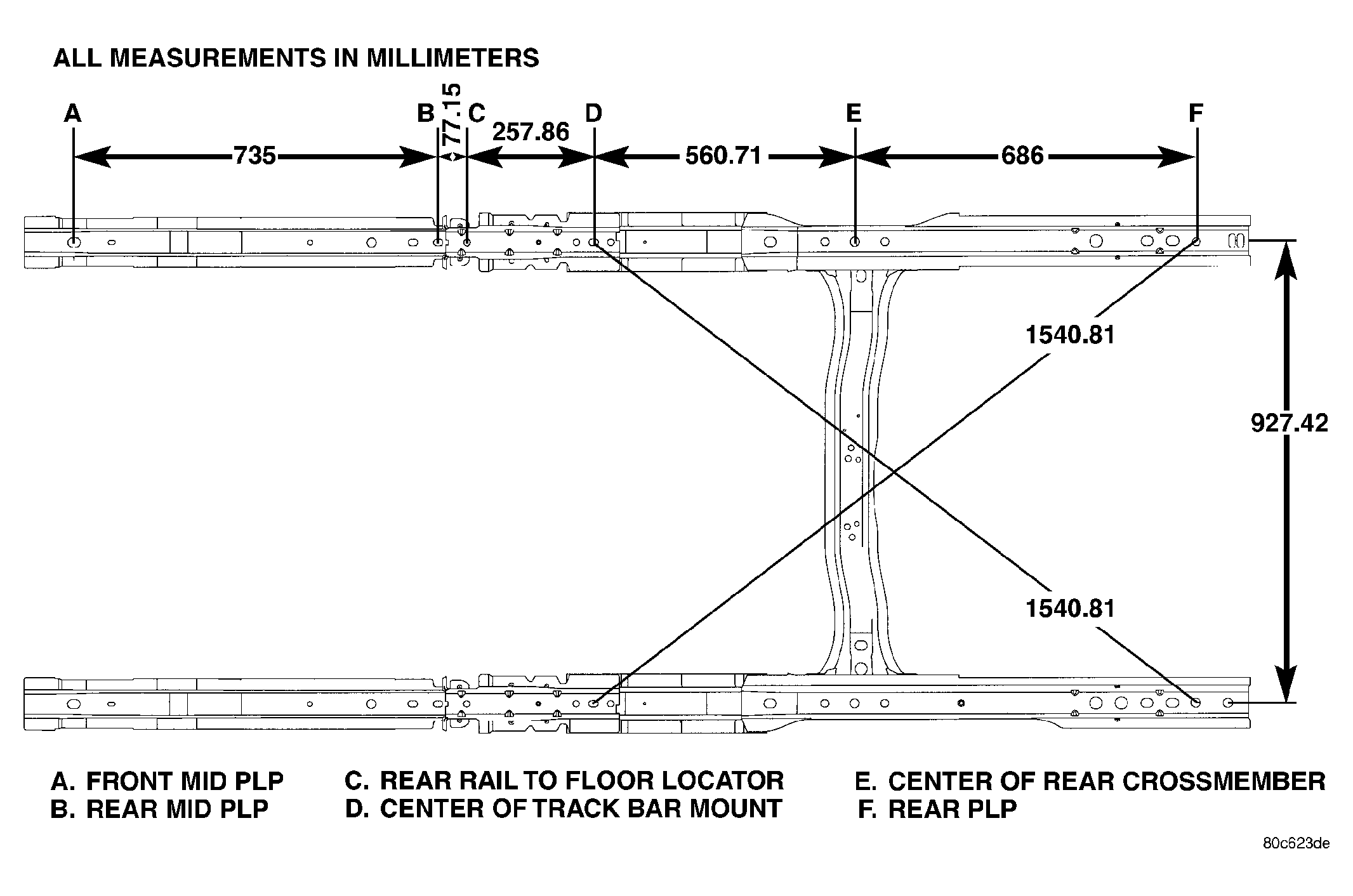

| REAR FRAME SECTION BOTTOM VIEW | Fig 5. |
