Transmission Oil Cooler: Description
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

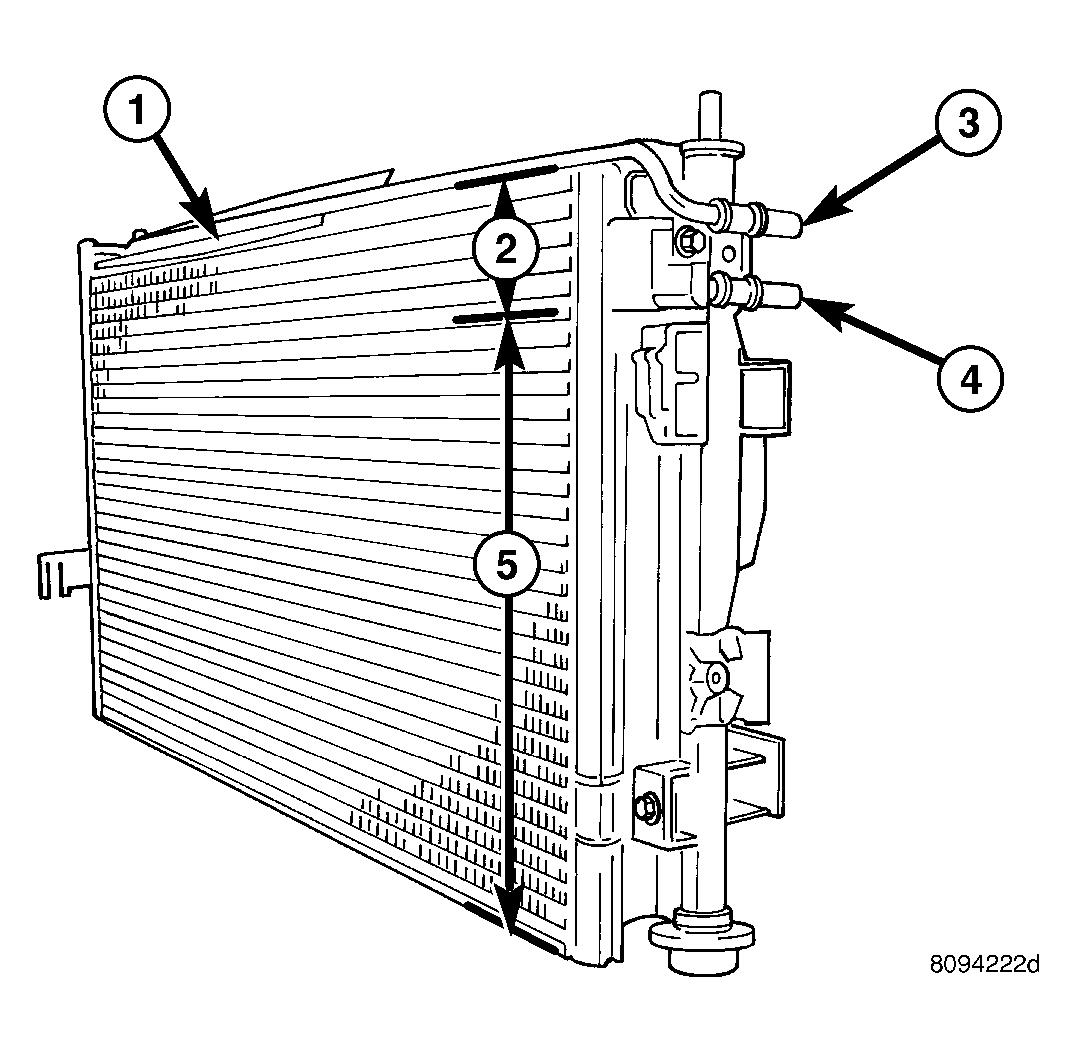

An external oil-to-air type automatic transmission oil cooler is mounted to the front of the radiator and is integral to the A/C condenser. See Fig 1. The six upper tubes are used for transaxle oil cooling, and the remaining tubes below are for the A/C system.
The cooler uses tubes and rubber hoses to feed oil to and from the automatic transaxle. The replaceable inlet and outlet tubes use an O-ring for sealing. The trans oil cooler is replaced with the A/C condenser.
| 1 - AIR CONDITIONING CONDENSER/TRANSMISSION OIL COOLER |
| 2 - TRANSMISSION OIL COOLER PORTION |
| 3 - TRANSMISSION COOLER OUTLET |
| 4 - TRANSMISSION COOLER INLET |
| 5 - AIR CONDITIONING CONDENSER PORTION |
