Description - 2.7L
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

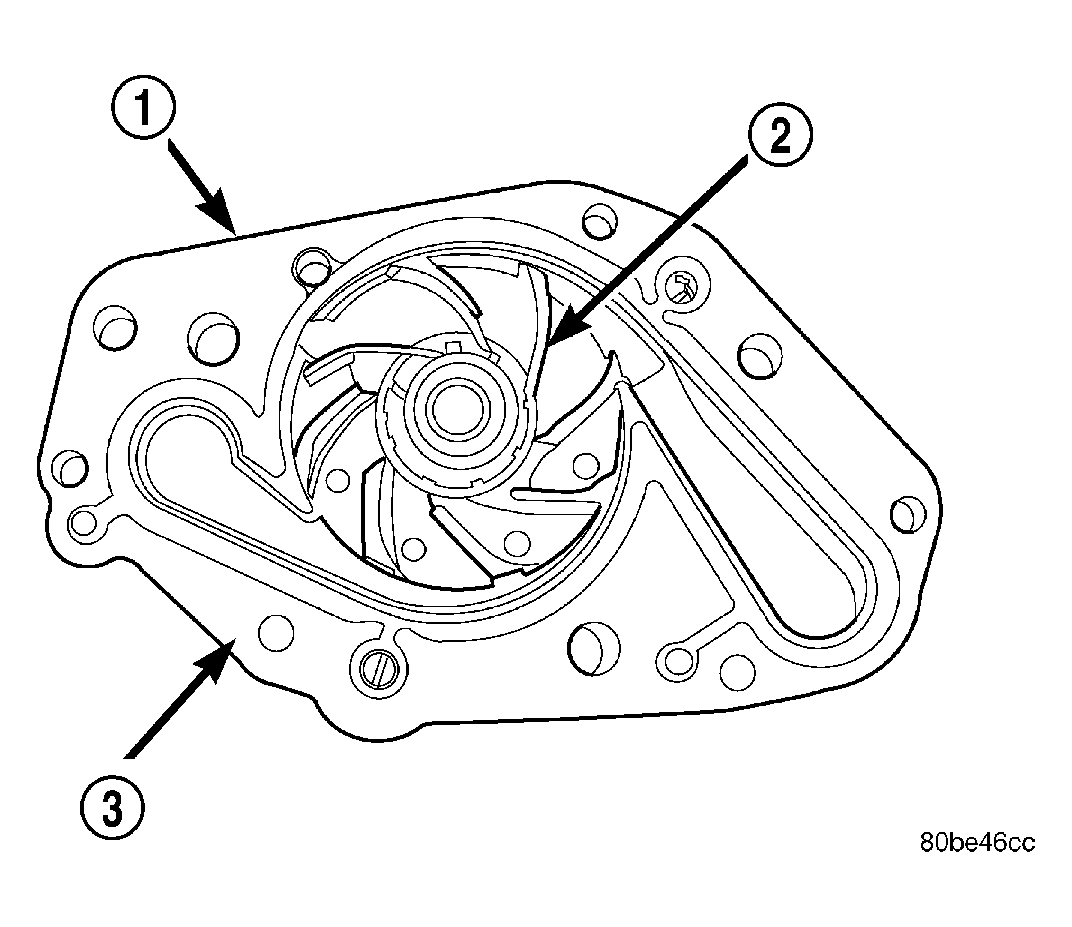

The 2.7L pump has a die cast aluminum housing and a plastic swept vane impeller. It bolts directly to the cylinder block, behind the timing chain cover. See Fig 1. The water pump is driven by the back side of the engine's primary timing chain.
| 1 - WATER PUMP BODY |
| 2 - IMPELLER |
| 3 - GASKET |
