Installation - 2.0L

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

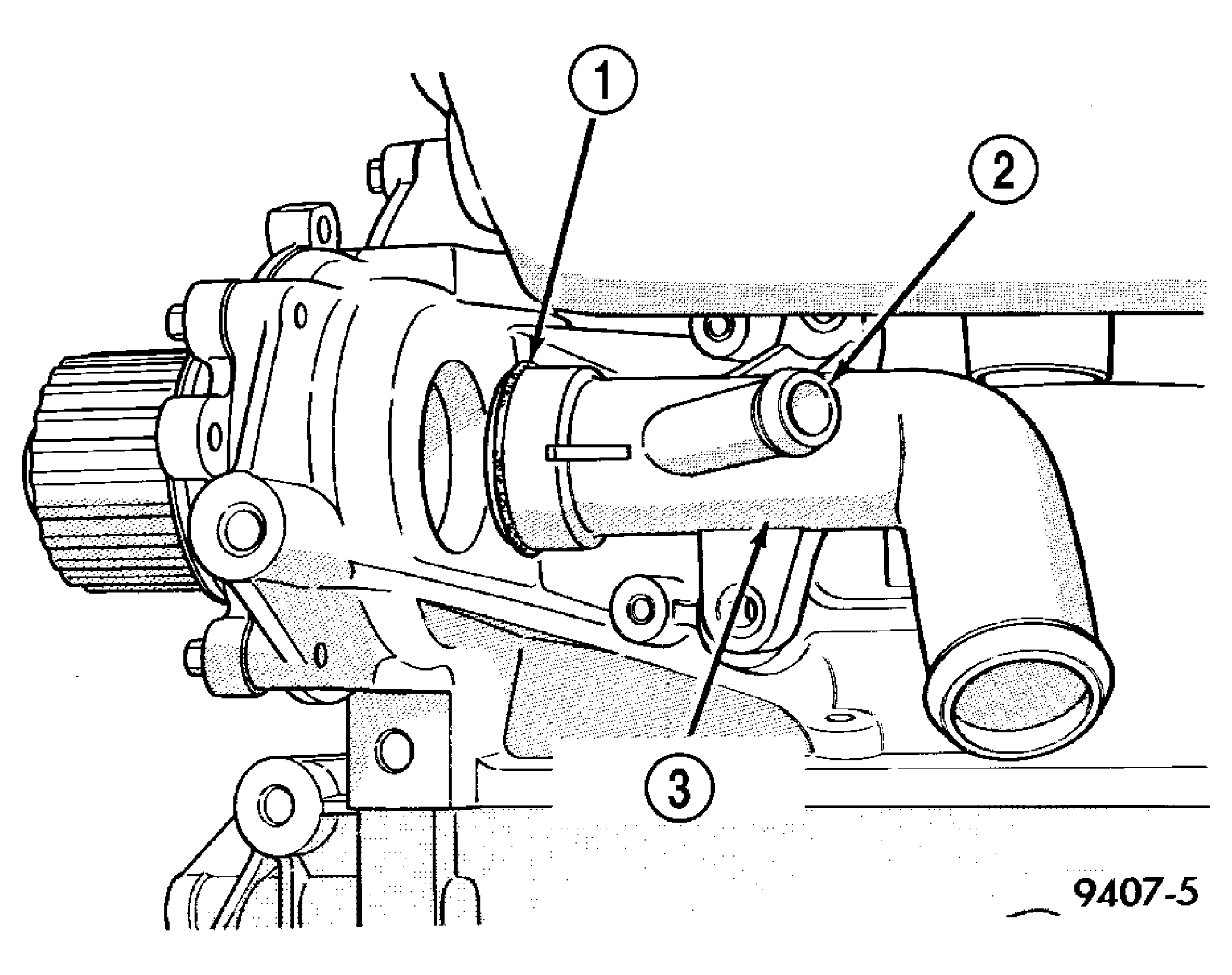

  1. Inspect the O-ring for damage before installing the tube into the cylinder block. See Figure.
  2. Lube O-ring with coolant and install tube into the cylinder block opening.
  3. Install fasteners and tighten to 12 N.m (105 in. lbs.).
  4. Reconnect lower radiator hose and heater hose to inlet tube. See Figure.
  5. Install generator bracket.
  6. Install generator, reconnect connectors.
  7. Install Air Conditioning Compressor/Generator accessory drive belt (Refer to COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION) .
  8. Lower vehicle.
  9. Fill cooling system (Refer to COOLING/ENGINE - STANDARD PROCEDURE) .
