Radiator Fan(S): Removal
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
- Remove upper radiator crossmember.

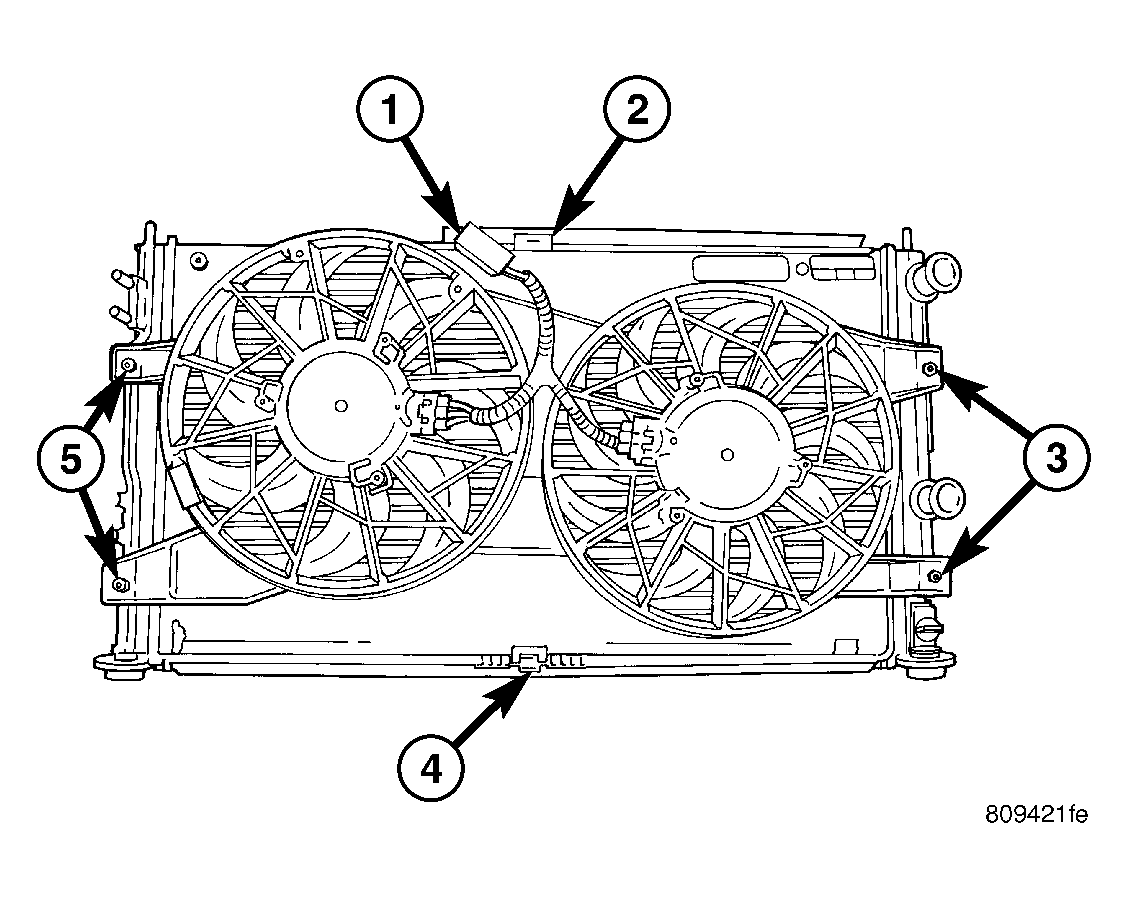

- Disconnect radiator fan electrical connector. See Fig 1.
- Remove fasteners and upper clip attaching fan assembly to radiator. See Fig 1.
- Remove radiator fan assembly by lifting upward.
| 1 - FAN MOTOR ELECTRICAL CONNECTOR |
| 2 - CLIP - UPPER ATTACHING |
| 3 - SCREWS - RIGHT SIDE |
| 4 - CLIP - LOWER RETAINING (REMAINS ON RADIATOR) |
| 5 - SCREWS - LEFT SIDE |
