Radiator Fan(S): Description
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

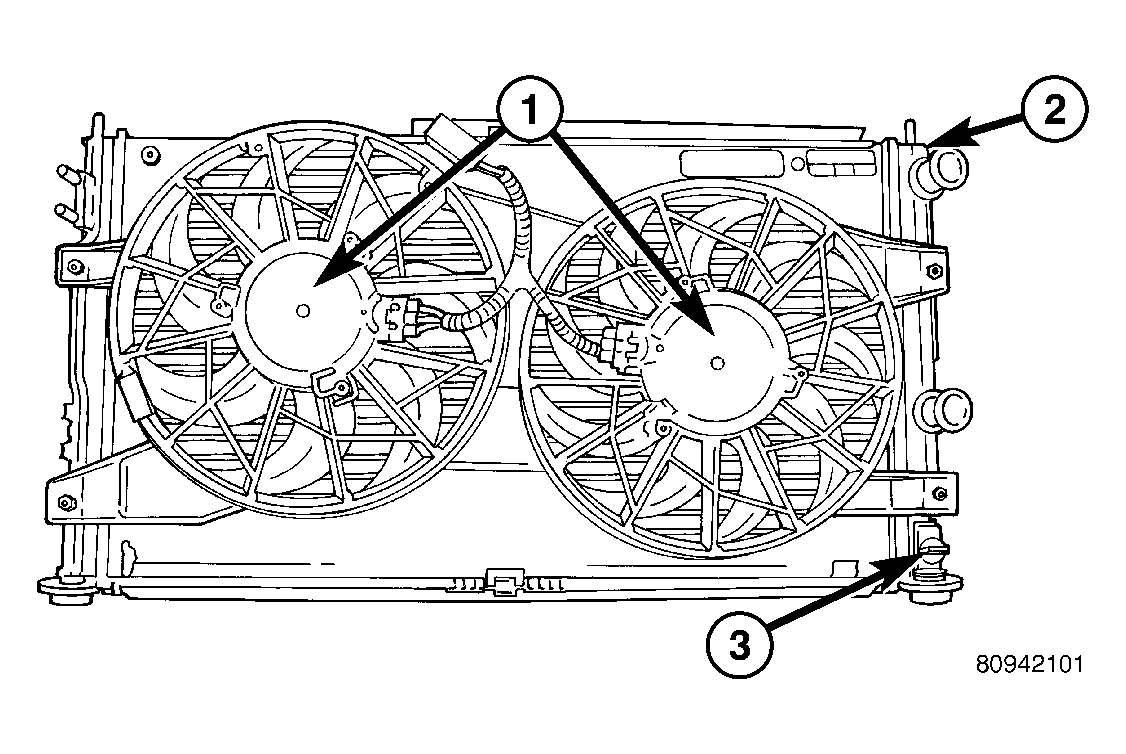

The radiator fan module includes a support shroud with two electrically driven motors with fan blades. See Fig 1. The radiator fan module is fastened to the radiator. The motors, shroud, and fan blades are serviced separately.
| 1 - RADIATOR FAN MOTOR |
| 2 - RADIATOR |
| 3 - RADIATOR DRAINCOCK |
