Operation - Hose Clamps
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
The constant tension type hose clamps maintain constant clamping force on the hose connections as the temperature of the cooling system rises and falls. Worm gear type hose clamps may not have sufficient clamping force in colder weather conditions if installed during warm weather.
To remove a spring type hose clamp, use Special Tool 8495 Hose Clamp Pliers, or equivalent, to compress the hose clamp. See Fig 1.
NOTE:
Special Tool 8495 was specifically designed for use on the "Low Profile" type hose clamps used at the coolant outlet connector hoses on the 2.7L engine. The pliers are also compatible with other styles of constant tension type hose clamps.

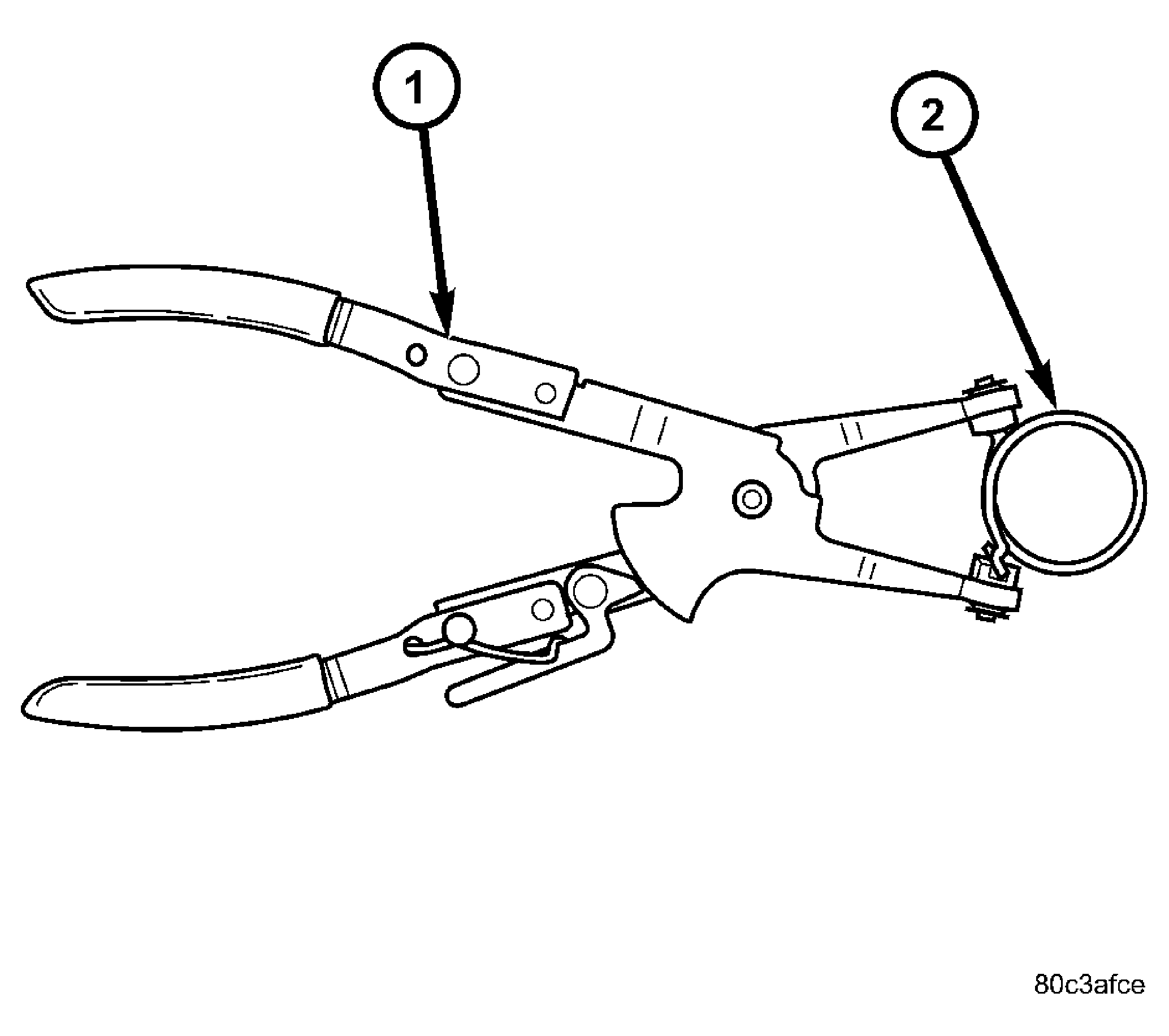

| 1 - SPECIAL TOOL 8495 HOSE CLAMP PLIERS |
| 2 - HOSE CLAMP |
