Coolant Pressure Container - 2.7L: Description
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

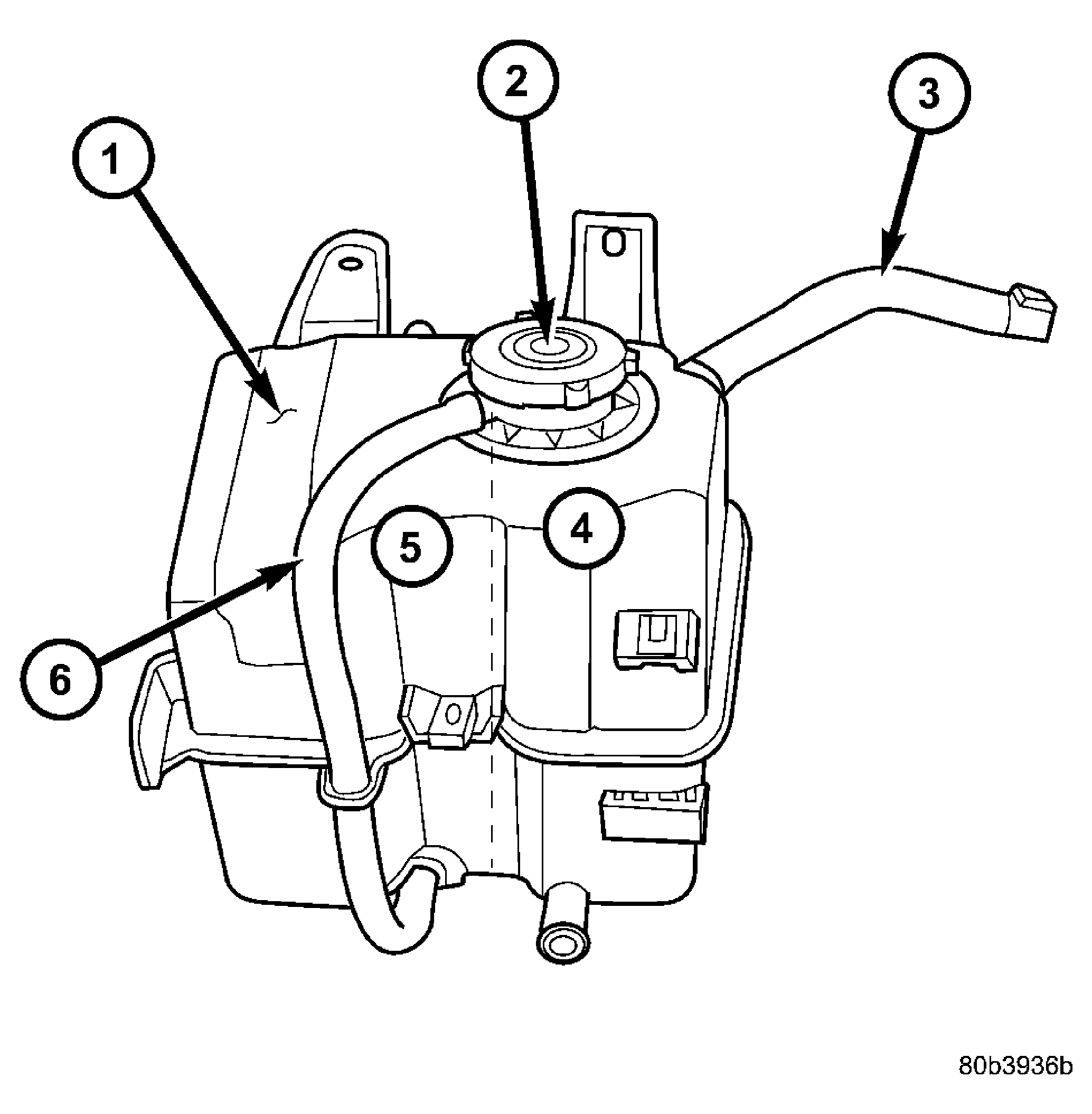

The coolant pressure container consists of a pressure chamber and a overflow chamber. See Fig 1. The coolant pressure container is mounted in the right side engine compartment. An overflow hose connects the pressure chamber to the overflow chamber.
NOTE:
Coolant will normally be in the pressure chamber side of the coolant bottle. The overflow chamber should normally be empty
| 1 - COOLANT PRESSURE CONTAINER |
| 2 - COOLANT PRESSURE CAP |
| 3 - HOSE TO COOLANT OUTLET CONNECTOR |
| 4 - PRESSURE CHAMBER |
| 5 - OVERFLOW CHAMBER |
| 6 - OVERFLOW HOSE |
