Removal - Stabilizer Bar: Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Raise vehicle on jack stands or centered on a frame contact type hoist. (Refer to HOISTING ).

Remove nuts and stabilizer bar attaching link assemblies from the front lower control arms. See Fig 1. When removing attaching link nut, keep stud from turning by installing an Allen wrench in the end of the stud. See Fig 1.

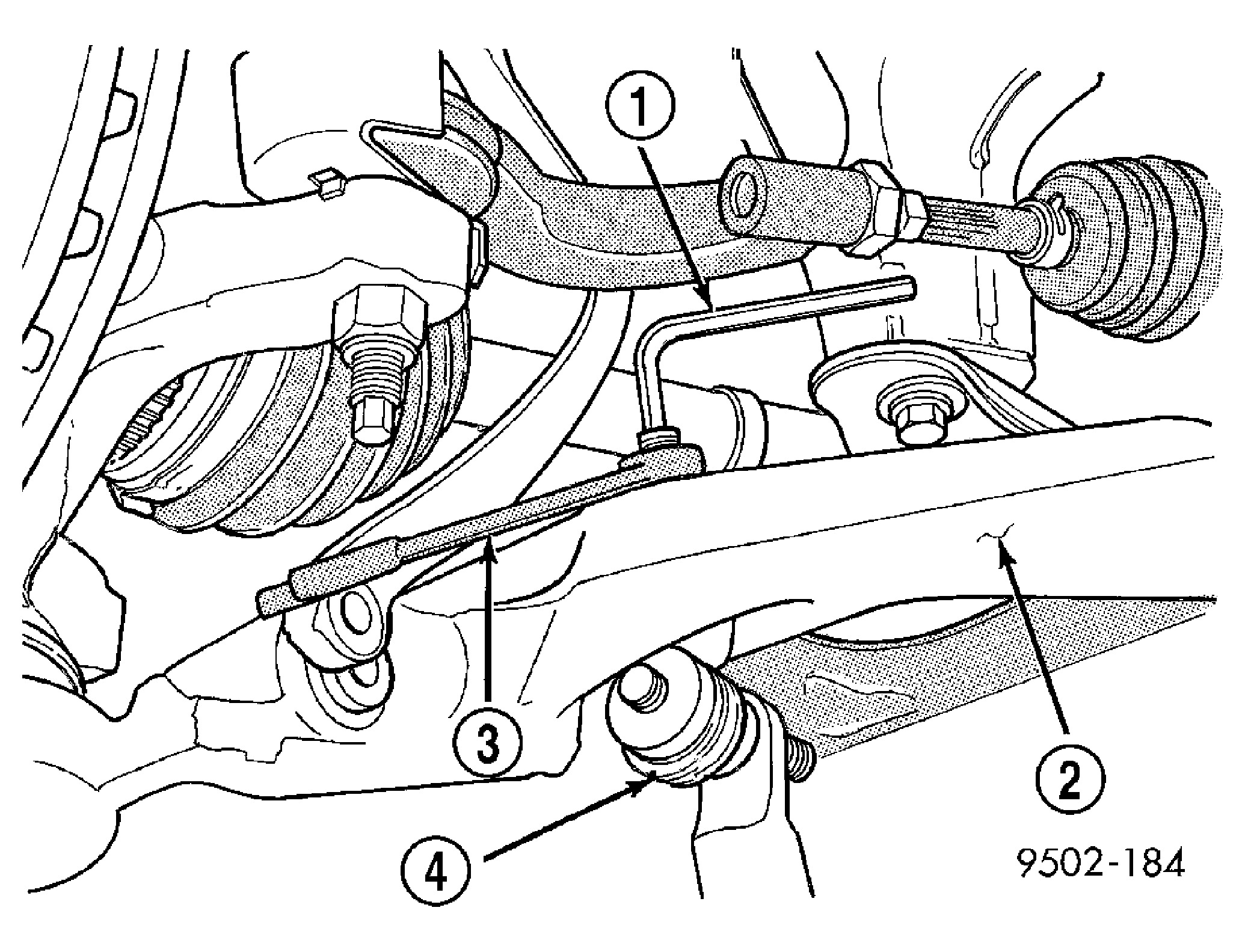

Fig 1: Removing/Installing Nut From Stud Of Stabilizer Link

Courtesy of DAIMLERCHRYSLER CORP.

1 - ALLEN WRENCH

2 - LOWER CONTROL ARM

3 - WRENCH

4 - STABILIZER BAR LINK ASSEMBLY

Remove the 4 bolts attaching the stabilizer bar bushing retainers to the front suspension crossmember and body. See Fig 2. Then remove the stabilizer bar assembly from the vehicle.

Fig 2: Stabilizer Bar Bushing Clamp Attaching Bolts

Courtesy of DAIMLERCHRYSLER CORP.

1 - STABILIZER BAR BUSHING CLAMP

2 - FRONT SUSPENSION CROSSMEMBER

3 - ATTACHING BOLTS

4 - STABILIZER BAR

5 - VEHICLE BODY
