Removal - Stabilizer Bar Bushing (Front)
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
- Bend back the 4 crimp locations on the stabilizer bar bushing retainer. See Fig 1.

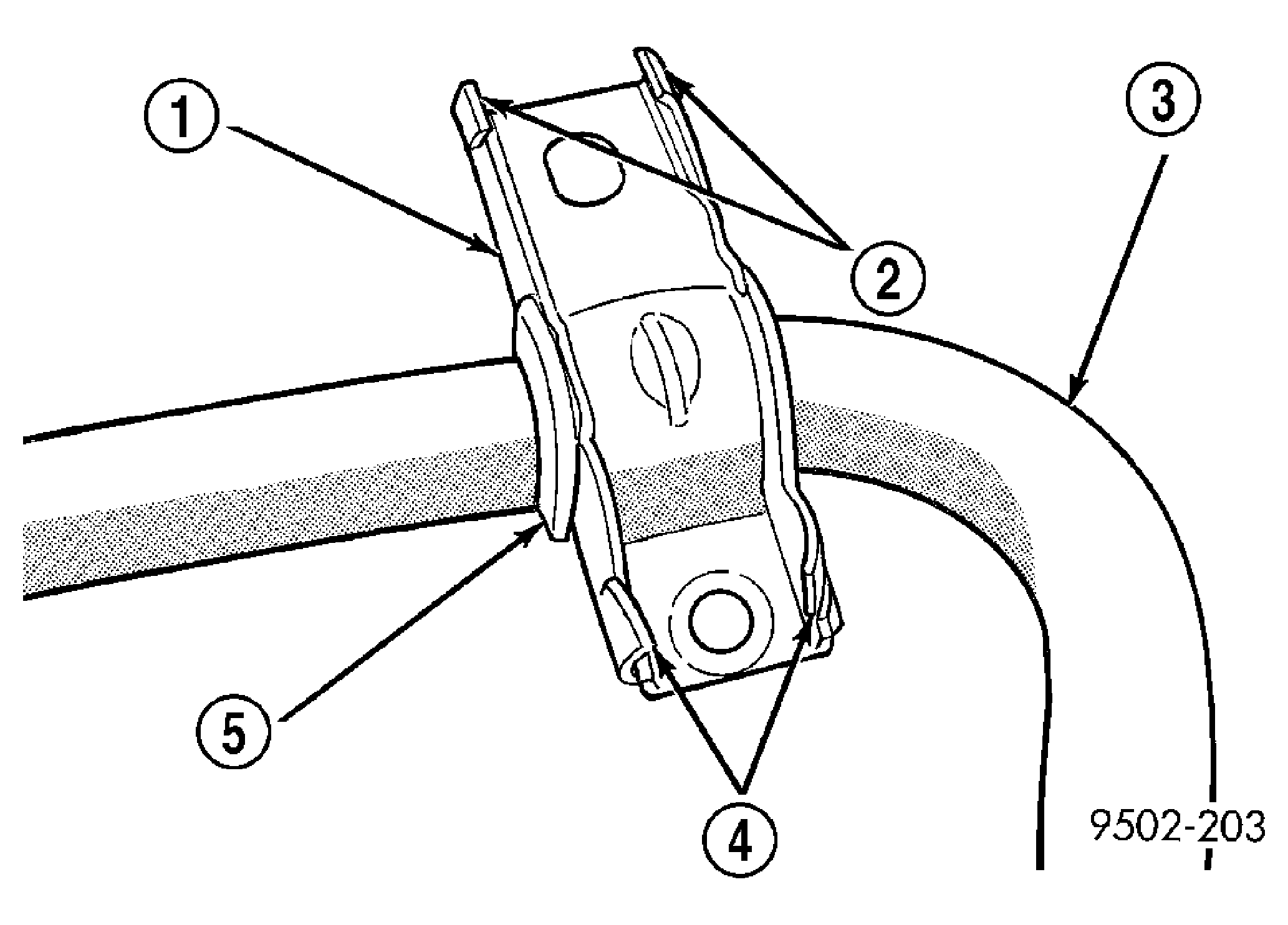

1 - STABILIZER BAR BUSHING RETAINER 2 - CRIMPS 3 - STABILIZER BAR 4 - CRIMPS 5 - STABILIZER BAR BUSHING - Separate the stabilizer bar bushing retainer.
- Stabilizer bar bushings are removed by opening slit and peeling bushing off stabilizer bar.
