Seat Belt & Retractor - Rear Center: Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: INSPECT THE CONDITION OF THE SHOULDER/LAP BELT. REPLACE THE RETRACTOR IF THE BELT IS CUT, FRAYED, TORN, OR DAMAGED IN ANY WAY. FAILURE TO INSPECT THE BELTS COULD RESULT IN IMPROPER RESTRAINT AND COULD CAUSE OCCUPANT PERSONAL INJURY OR DEATH.
  1. Install the center rear seat belt retractor assembly on the rear shelf. Torque the bolt to 40 N.m (30 ft. lbs.).
  2. Route webbing and bezel through rear shelf trim panel.
  3. Install the rear shelf trim panel. Refer to INSTALLATION .
  4. Install the nut attaching the center rear seat belt anchor to the floor pan stud. Be certain the rear seat belts are properly routed to avoid twisted or tangled belts and/or buckles. Torque nut to 40 N.m (30 ft. lbs.).
  5. Install the rear seat cushion.

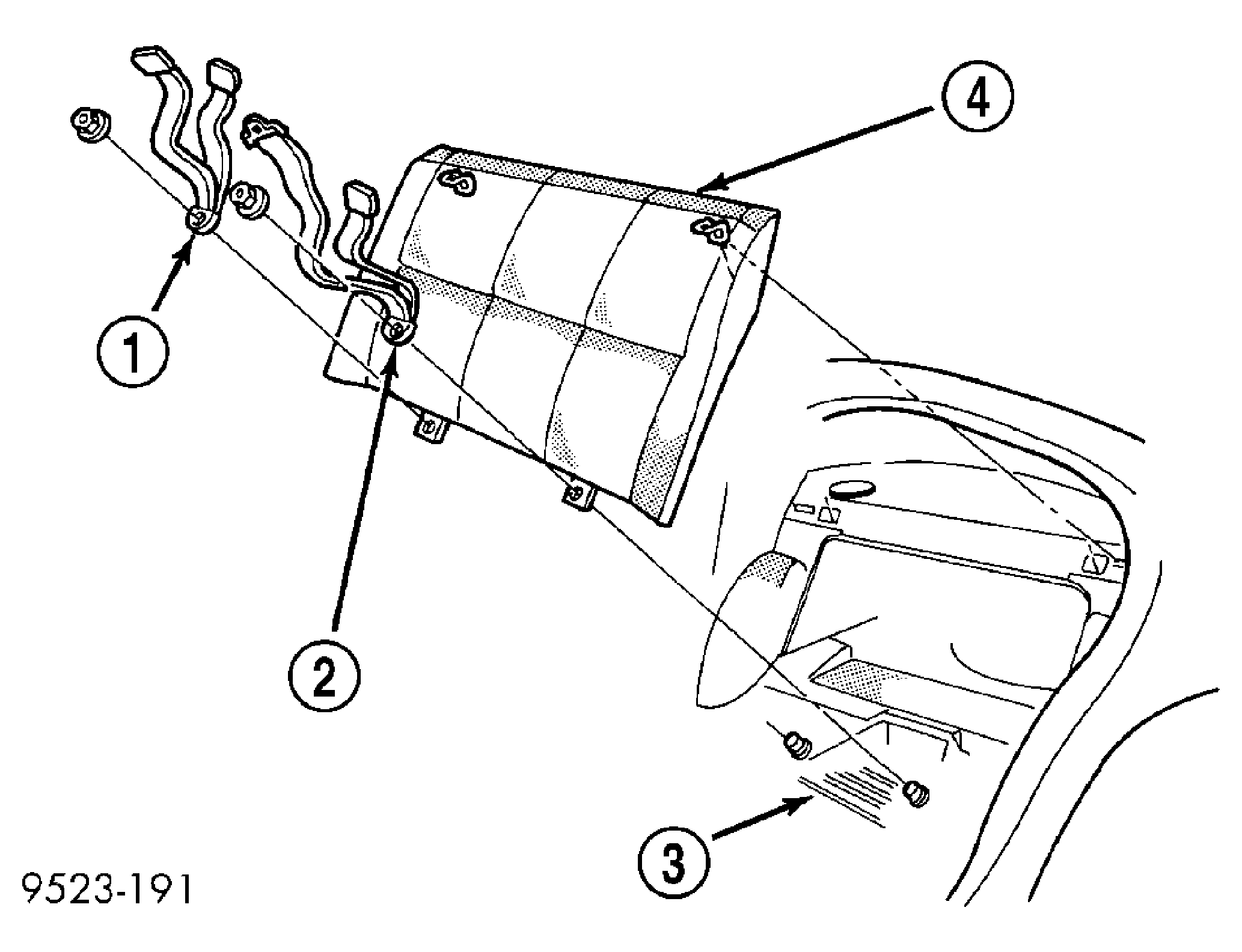

WARNING: THE REAR SEAT BACK RETAINING NUT ALSO SERVES AS THE CENTER SEAT BELT ANCHOR. See Figure. BE CERTAIN TO TORQUE THIS NUT TO 40 N.m (30 ft. lbs.). FAILURE TO DO SO COULD RESULT IN OCCUPANT PERSONAL INJURY OR DEATH.
