Rear Seat Belt & Retractor - Convertible Jr27 Only: Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position rear seat belt and retractor assembly to rear seat support assembly.
  2. Engage hook on seat belt retractor to slot in rear seat support assembly.
  3. Install bolt attaching seat belt retractor to rear seat support assembly. Tighten seat belt fastener to 40 N.m (350 in. lbs.) torque.
  4. Route seat belt through channel and snap bezel onto top of channel.
  5. Install bolt attaching seat belt anchor to floor pan. Tighten seat belt fastener to 40 N.m (350 in. lbs.) torque.

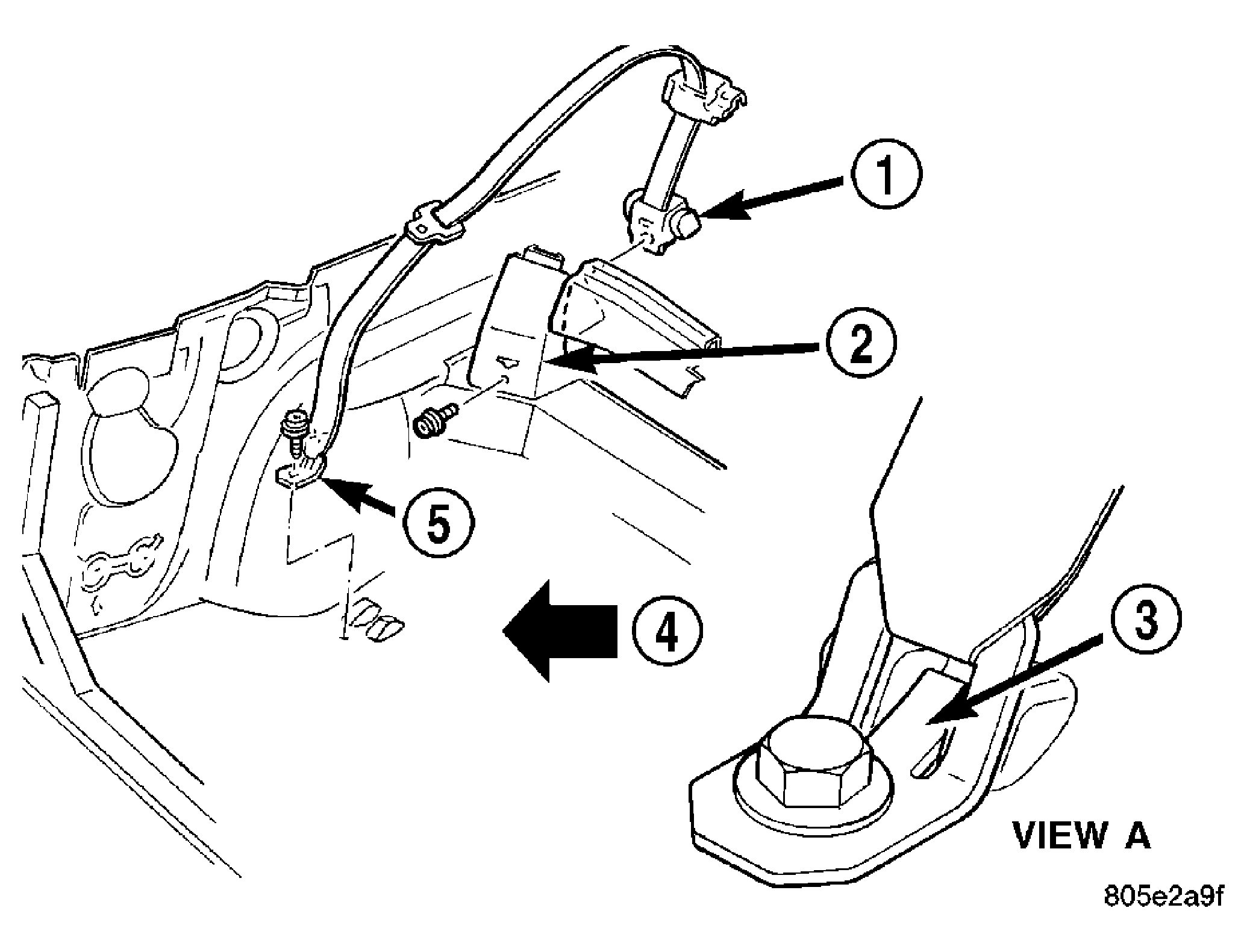

  6. Verify that seat belt is not twisted when engaged to seat belt buckle and that the tab on the lower seat belt anchor is between the formations on the floor pan. See Figure.
  7. Install quarter trim panel. Refer to INSTALLATION .
  8. Install rear seat back. Refer to INSTALLATION .
  9. Install rear seat cushion. Refer to INSTALLATION .
  10. Connect the battery negative cable.
