Power Steering Pressure Switch: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative cable from the battery. Be sure cable is isolated from negative post on battery.
  2. Raise vehicle.
  3. Locate power steering pressure switch on back side of power steering gear. See Fig 1.

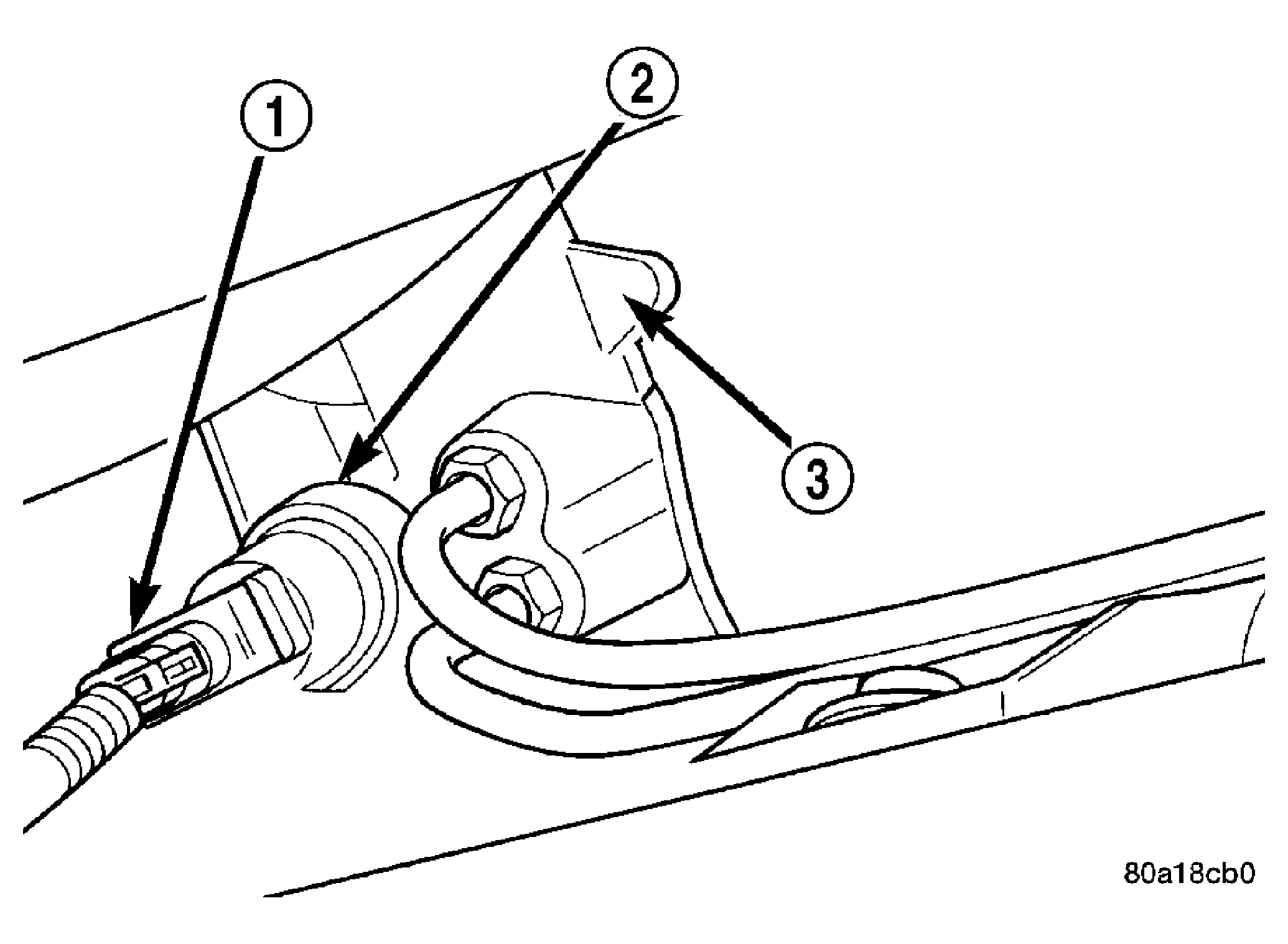

    Fig 1: Power Steering Pressure Switch Location
    GC0031066Courtesy of DAIMLERCHRYSLER CORP.
    1 - WIRING HARNESS CONNECTOR
    2 - POWER STEERING PRESSURE SWITCH
    3 - POWER STEERING GEAR
  4. Remove the wiring harness connector from the power steering pressure switch.
  5. Using a crow foot and long extension, remove power steering pressure switch, from power steering gear.
