Section 71 (Steering System - Except Coupe): Gear: Gear: Disassembly
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

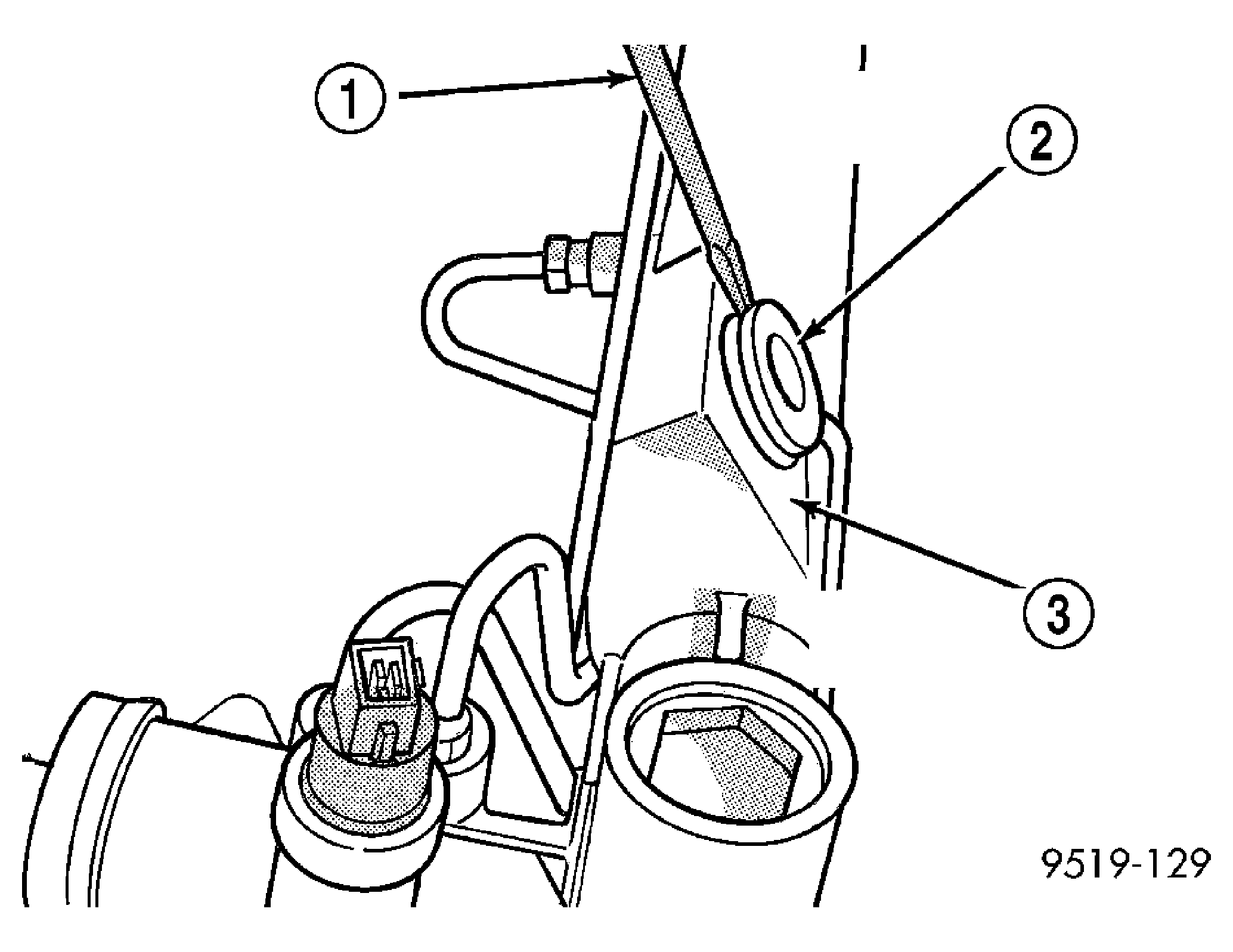

- Using a screwdriver, pry the sleeve out of the mounting bolt isolator. See Fig 1.
1 - SCREWDRIVER 2 - ISOLATOR BUSHING SLEEVE 3 - STEERING GEAR MOUNTING BRACKET - Pry the mounting bolt isolator bushing from the steering gear mounting bracket.
