Engine 2.7L DOHC: Description

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

The 2.7 Liter (167 Cubic Inches) 60 degree V-6 engine is a double overhead camshaft design with hydraulic lifters and four valves per cylinder. See Fig 1. The engine does not have provisions for a free wheeling valve train.

The cylinders are numbered from front to rear, with the right bank odd numbered, and the left bank even numbered. See Fig 2. The firing order is 1-2-3-4-5-6.

The engine identification number is located on the rear of the cylinder block just below the left cylinder head. See Fig 3

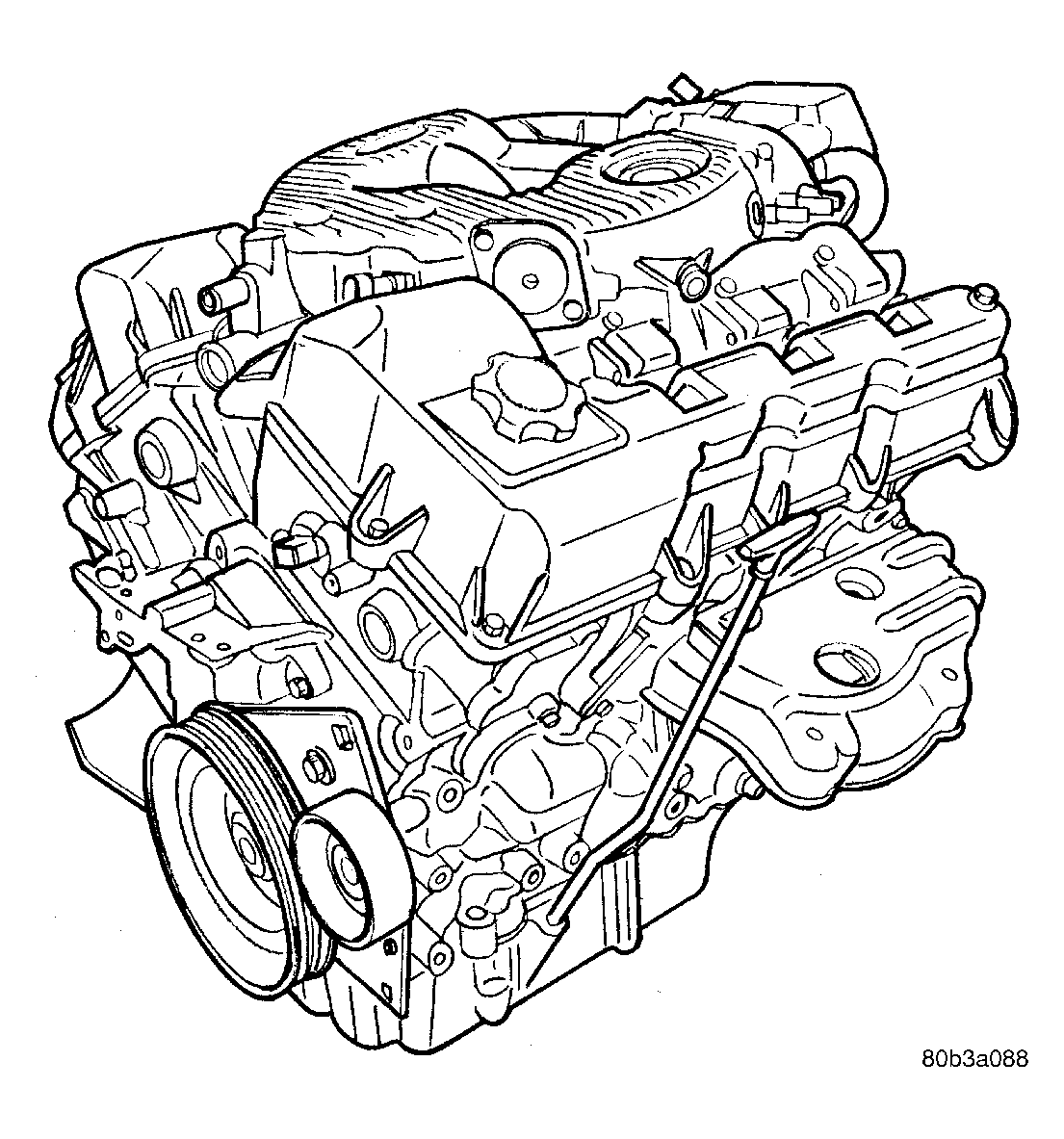

Fig 1: 2.7 Liter Engine

Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: Cylinder Numbering and Firing Order

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Engine Identification

Courtesy of DAIMLERCHRYSLER CORP.
