Cylinder Head Cover - Left: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable.
  2. Remove upper intake manifold (Refer to ENGINE/MANIFOLDS/INTAKE MANIFOLD - REMOVAL)  .
  3. Disconnect electrical connectors from ignition coils and capacitor. Reposition electrical harness.
  4. Remove ground strap from cylinder head cover stud.
  5. Disconnect electrical harness retaining clips from cylinder head cover studs. Reposition electrical harness.
  6. Remove fastener attaching ignition coil capacitor.
  7. Remove ignition coils.
  8. Loosen all cylinder head cover fasteners. See Fig 1.
    NOTE: Cylinder head cover attaching bolts are captured to the cover.
    CAUTION: Make certain the double ended studs in the center of the cylinder head cover are loose before attempting to remove cover. See Fig 1.
  9. Remove cylinder head cover.

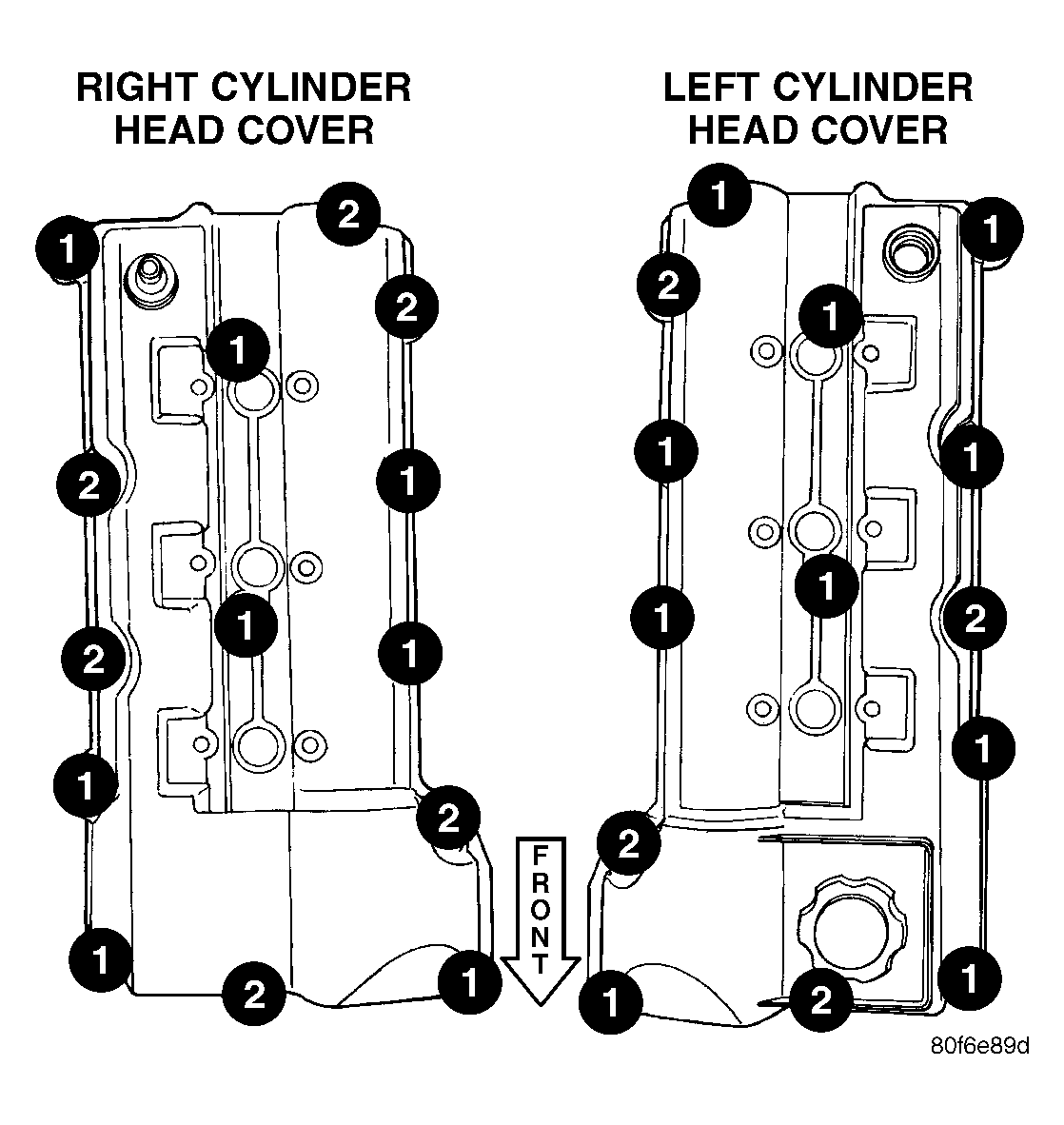

Fig 1: Cylinder Head Cover Fasteners
GC0032147Courtesy of DAIMLERCHRYSLER CORP.
1 - DOUBLE ENDED STUDS
2 - BOLTS

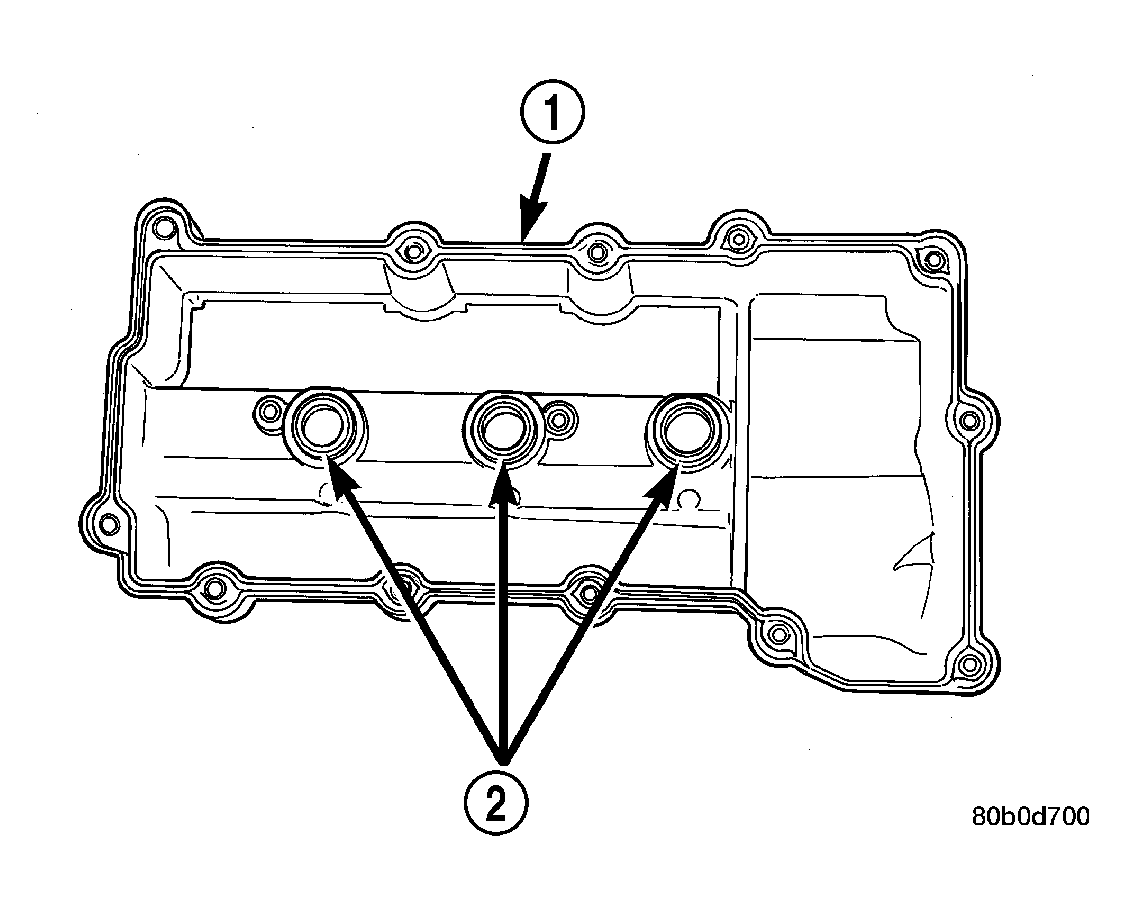

Fig 2: Cylinder Head Cover Gasket and Spark Plug Seals
GC0032146Courtesy of DAIMLERCHRYSLER CORP.
1 - ONE PIECE GASKET
2 - SPARK PLUG WELL SEALS
