Crankshaft Rear Oil Seal Retainer: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove crankshaft rear oil seal and oil pan. (Refer to ENGINE/ENGINE BLOCK/CRANKSHAFT OIL SEAL - REAR - REMOVAL) (Refer to ENGINE/LUBRICATION/OIL PAN - REMOVAL) .
  2. Remove seal retainer attaching screws. See Fig 1.
  3. Remove retainer and gasket. See Fig 1.

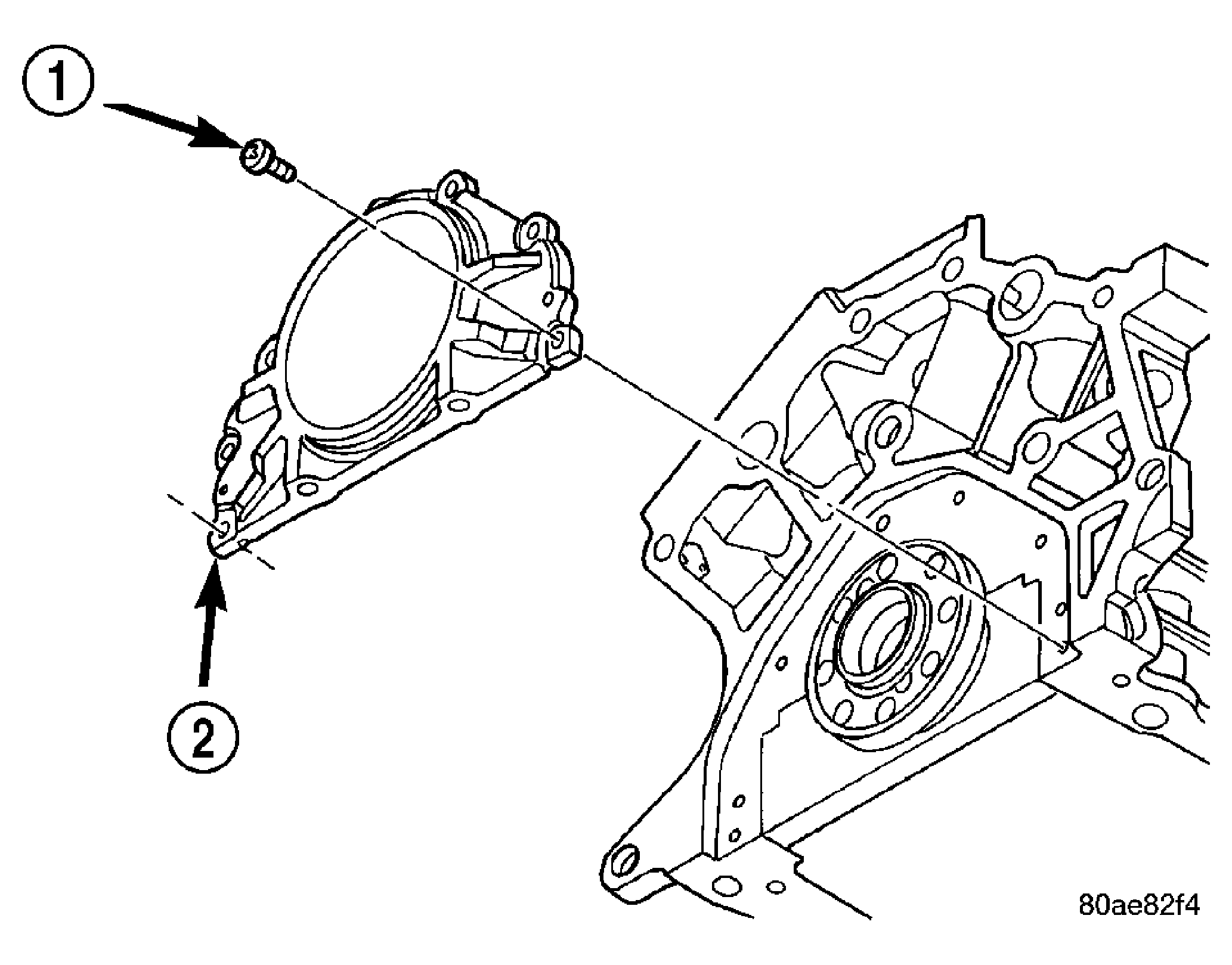

Fig 1: Oil Seal Retainer
GC0032151Courtesy of DAIMLERCHRYSLER CORP.
1 - SCREWS (7)
2 - SEAL RETAINER
