Crankshaft Oil Seal - Rear: Installation
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
If a burr or scratch is present on the crankshaft edge (chamfer), clean surface using 400 grit sand paper to prevent seal damage during installation.
- Place Special Tool 6926-1 Guide on crankshaft. See Fig 1. This is a pilot tool with a magnetic base.
- Position seal over pilot tool. Assure that lip of seal is facing towards the crankshaft during installation. The pilot tool remains on crankshaft during seal installation.
- Using Special Tool 6926-2 Installer, and C-4171 Handle, drive seal into the retainer housing until seal is flush with housing surface. See Fig 1.
- Install drive plate and transaxle. (Refer to DIAGNOSIS & OVERHAUL - 41TE - EXCEPT COUPE )

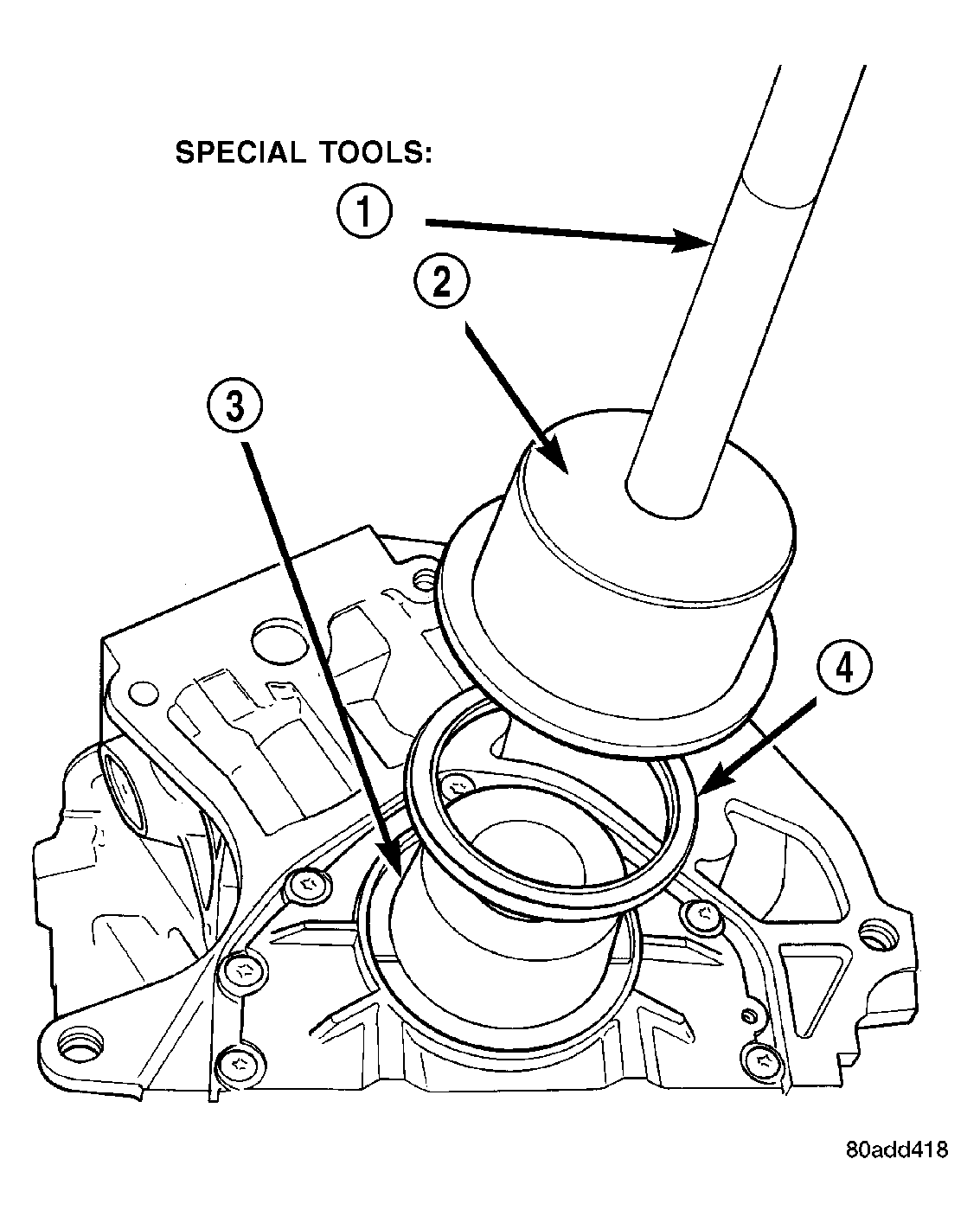

| 1 - C-4171 HANDLE |
| 2 - 6926-2 INSTALLER |
| 3 - 6926-1 GUIDE |
| 4 - SEAL |
