Air Cleaner Element: Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean any debris from inside air cleaner housing.
  2. Install air cleaner element into air cleaner housing. See Fig 1. Verify element rests properly on mounting bosses inside air cleaner housing.
    Fig 1: AIR FILTER IN HOUSING
    GC0032143Courtesy of DAIMLERCHRYSLER CORP.

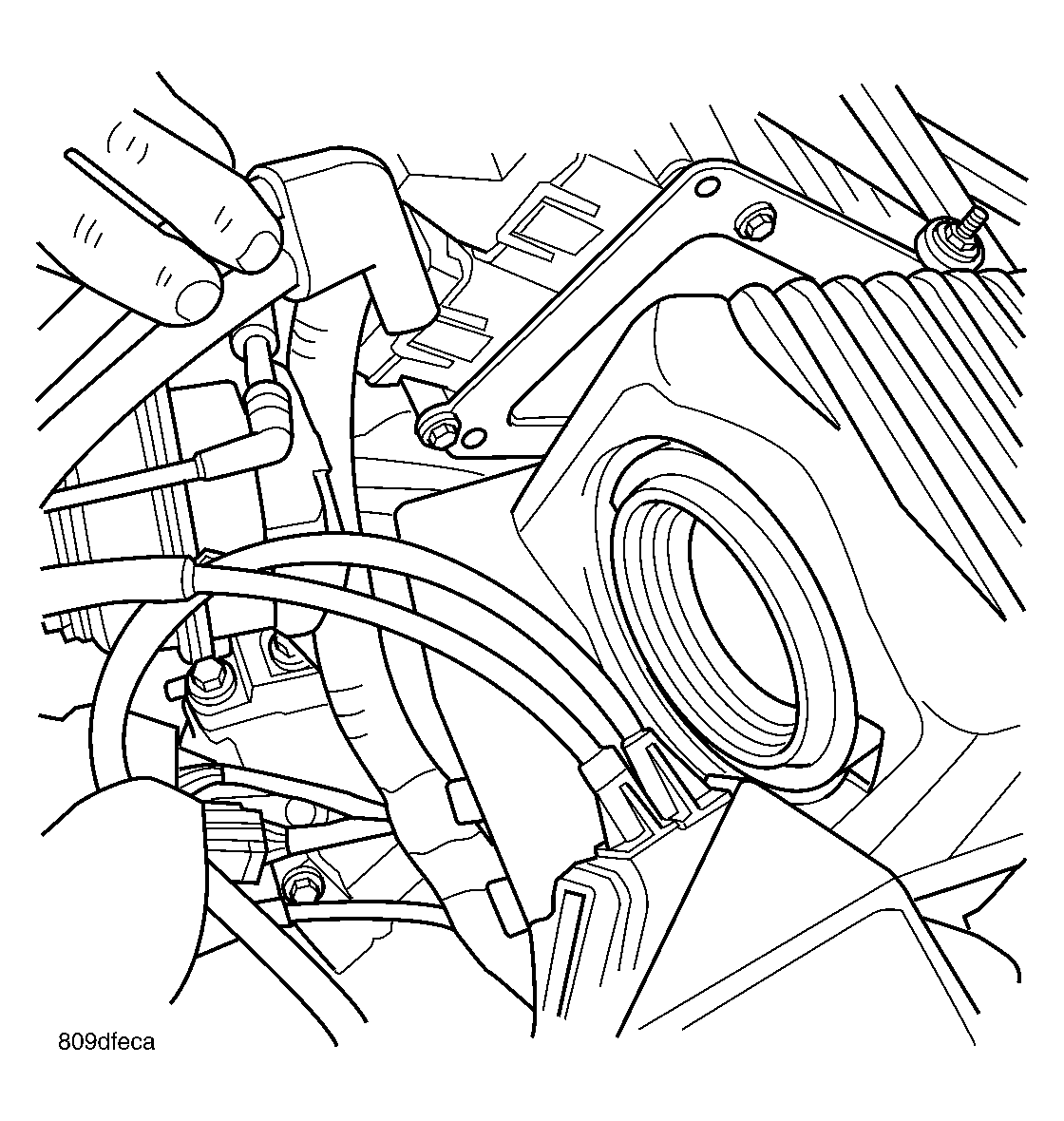

  3. Install throttle body air inlet hose into air cleaner housing. Push in on hose until an audible "click" is heard from locking tabs.
  4. Install hose on throttle body. Tighten hose clamp. See Figure.
  5. Connect fresh air makeup hose. See Figure.
  6. Connect inlet air temperature sensor electrical sensor. See Figure.
  7. Connect negative battery cable.
