Oil Pump: Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Make sure all surfaces are clean and free of oil and dirt.
  2. Apply Mopar(R) Gasket Maker to oil pump as shown in Fig 1. Install oil ring into oil pump body discharge passage.

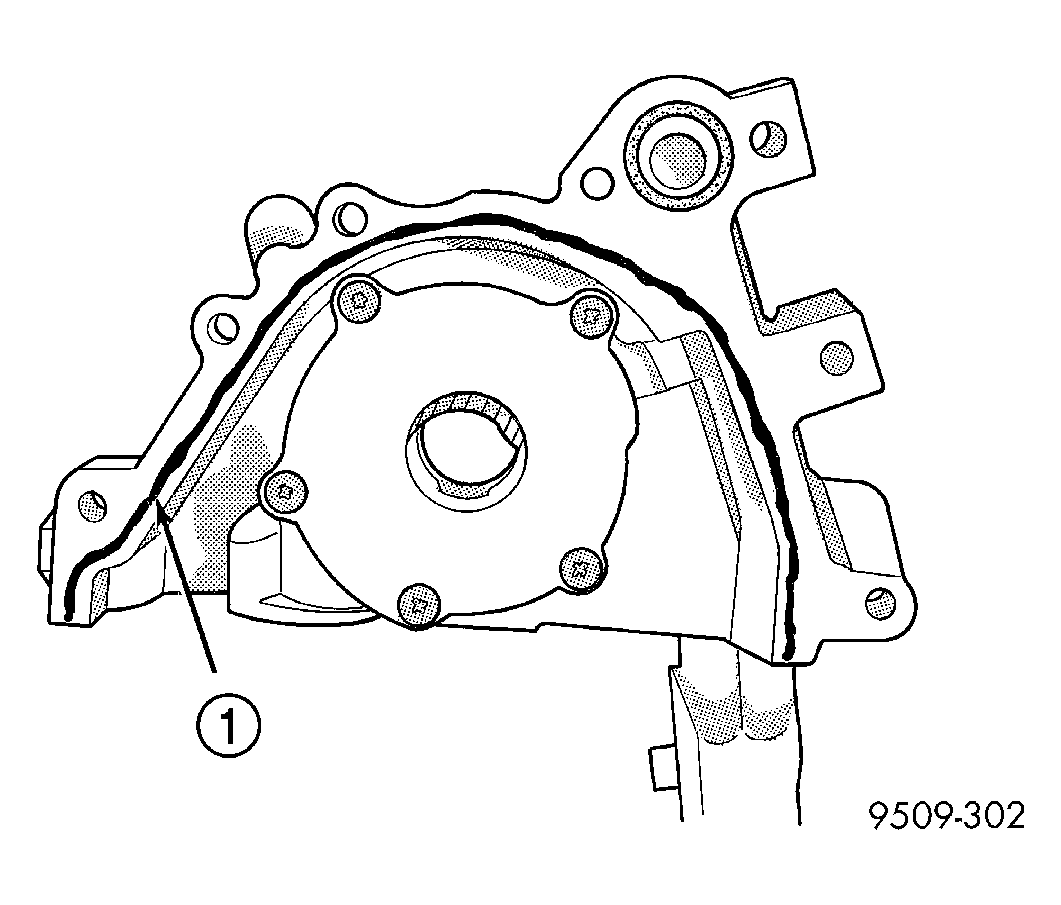

    Fig 1: Oil Pump Sealing
    GC0032116Courtesy of DAIMLERCHRYSLER CORP.
    1 - APPLY GASKET MAKER TO OIL PUMP BODY FLANGE
  3. Prime oil pump before installation.
  4. Align oil pump rotor flats with flats on crankshaft as you install the oil pump to the block.
    NOTE: Front crankshaft seal MUST be out of pump to align, or damage may result.
  5. Install new front crankshaft seal using Special Tool 6780. See Fig 2.
    Fig 2: Front Crankshaft Seal-Installation
    GC0032101Courtesy of DAIMLERCHRYSLER CORP.
    1 - PROTECTOR
    2 - SEAL
    3 - SPECIAL TOOL 6780
  6. Install crankshaft sprocket using Special Tool 6792. See Fig 3.

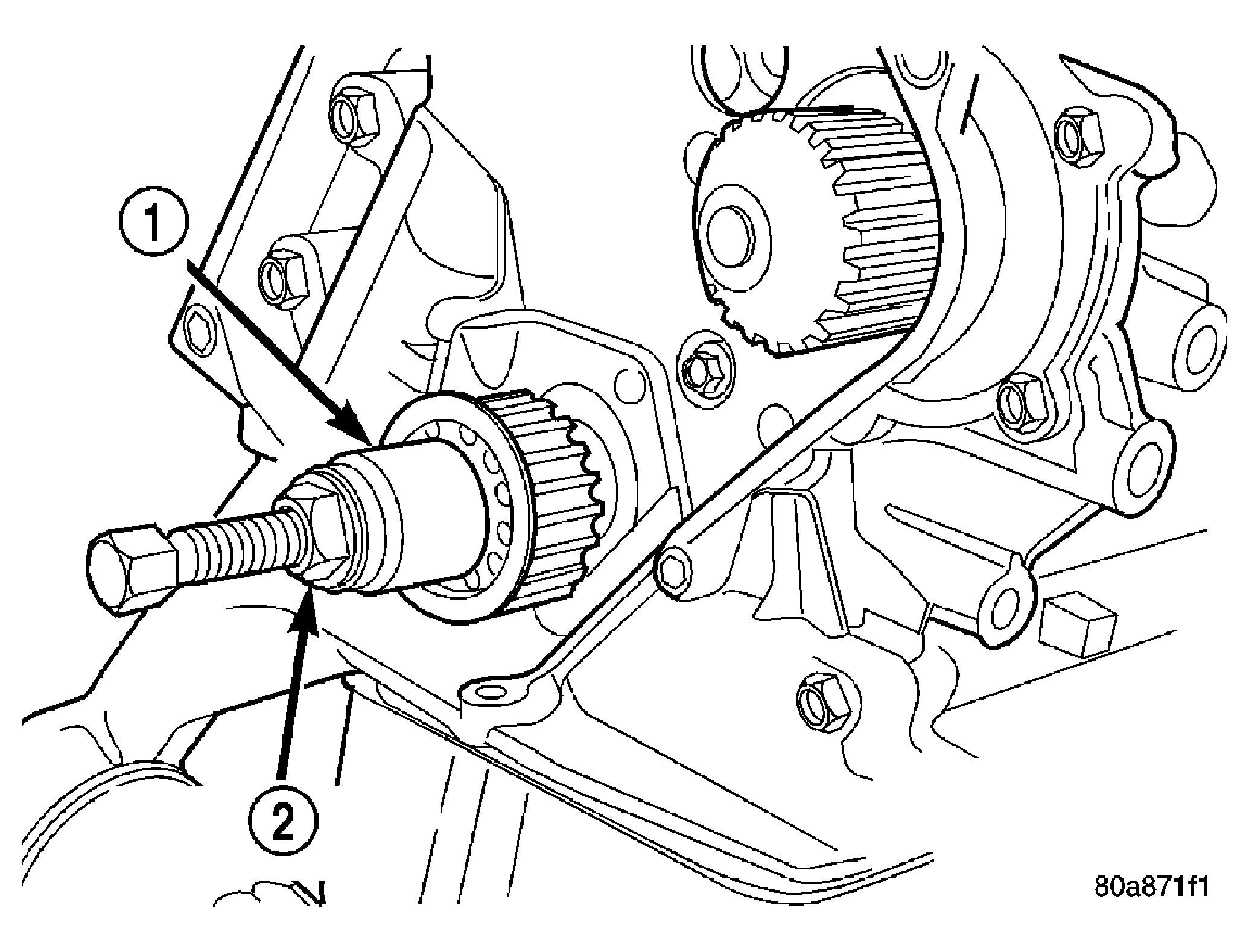

    Fig 3: Crankshaft Sprocket-Installation
    GC0024502Courtesy of DAIMLERCHRYSLER CORP.
    1 - SPECIAL TOOL 6792
    2 - TIGHTEN NUT TO INSTALL
  7. Install oil pump pick-up tube.
  8. Install oil pan (Refer to ENGINE/LUBRICATION/OIL PAN - INSTALLATION)  .
  9. Install Timing Belt (Refer to ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND SPROCKETS - INSTALLATION)  .
  10. Install crankshaft damper (Refer to ENGINE/ENGINE BLOCK/VIBRATION DAMPER - INSTALLATION)  .
  11. Replace oil filter.
  12. Lower vehicle.
  13. Fill engine crankcase with proper oil to correct level.
  14. Connect negative battery cable.
