Section 69 (2.4L DOHC Engine (Service Information) - Except Coupe): Lubrication: Description
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Some 2.4L engines are not equipped with a oil pan gasket. Use the appropriate RTV sealant.

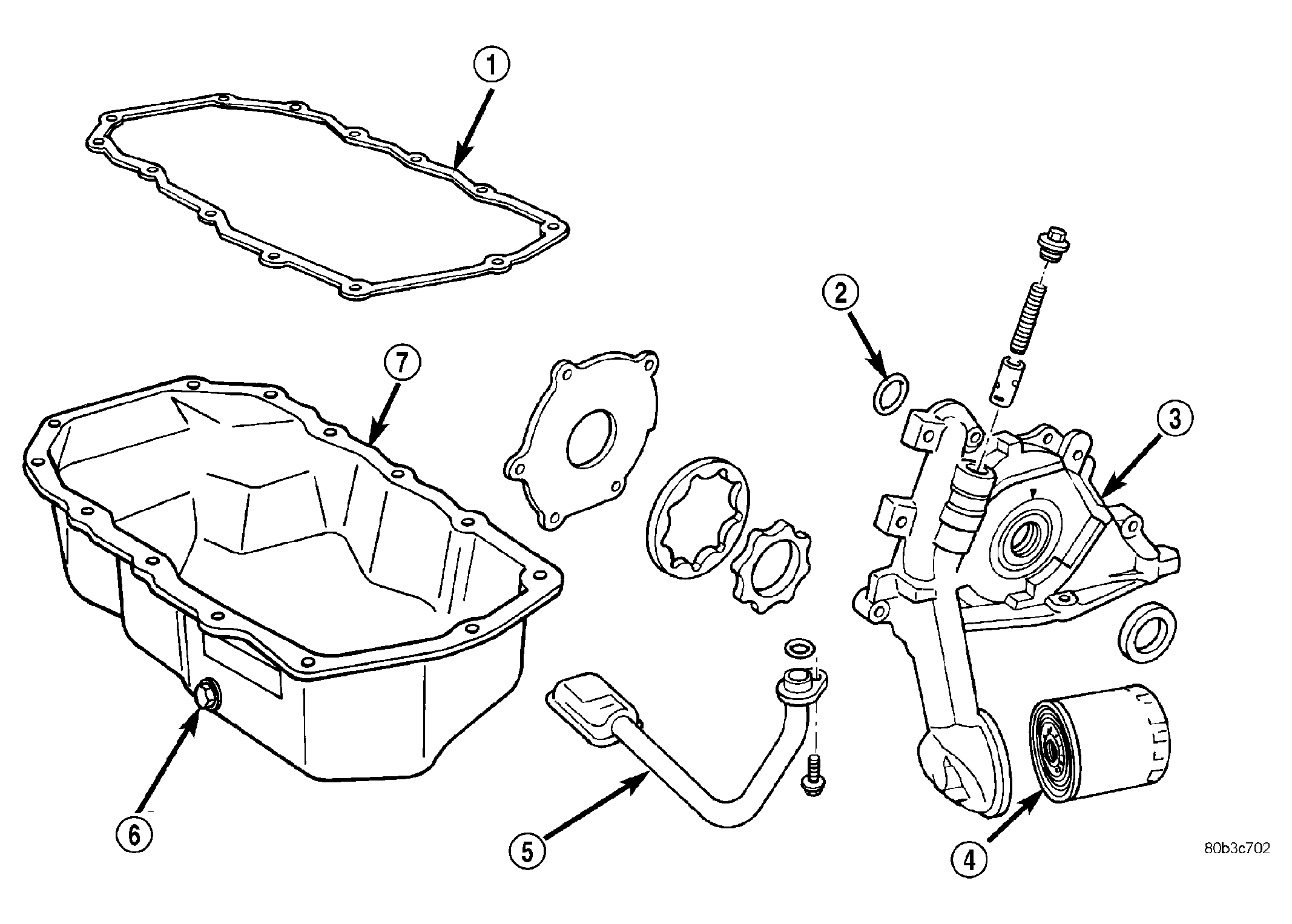

The lubrication system is a full-flow filtration, pressure feed type. The oil pump is mounted in the front engine cover and driven by the crankshaft. See Fig 1.
| 1 - OIL PAN GASKET |
| 2 - O-RING |
| 3 - OIL PUMP BODY |
| 4 - FILTER |
| 5 - OIL PICK-UP TUBE |
| 6 - DRAIN PLUG |
| 7 - OIL PAN |
