Front Mount: Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position front mount on lower radiator crossmember.
  2. Loose install front mount to bracket through bolt.

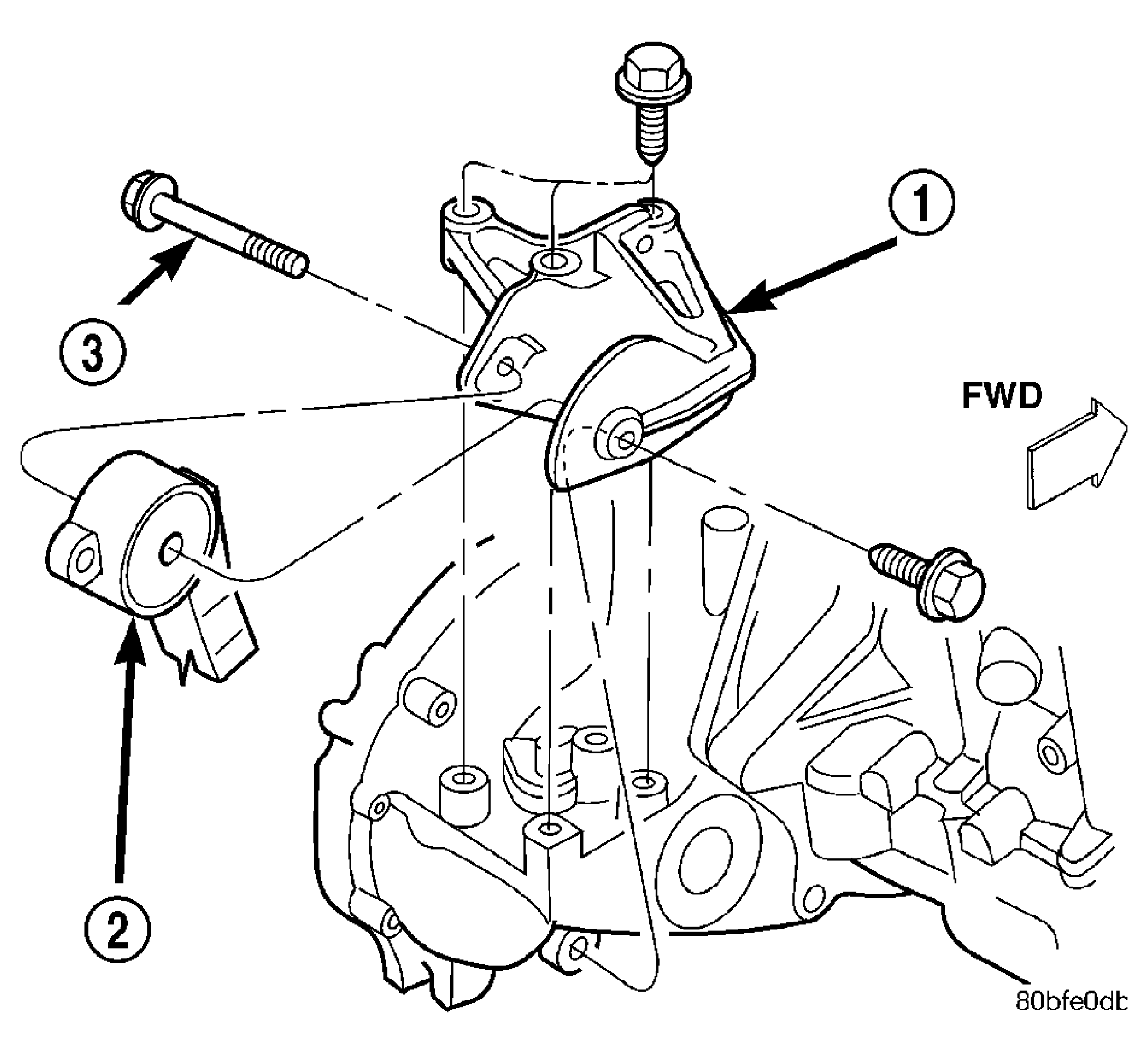

  3. Install front mount vertical bolts. Tighten bolts to 61 N.m (45 ft. lbs.). See Figure.
    NOTE: Be sure the weight of the engine is static and in rest position.
  4. Tighten rear horizontal through bolt to 75 N.m (55 ft. lbs.). See Figure.
  5. Install the AIR pump.
  6. Tighten front horizontal through bolt to 75 N.m (55 ft. lbs.). See Figure
  7. Lower vehicle.
