Flex Plate: Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

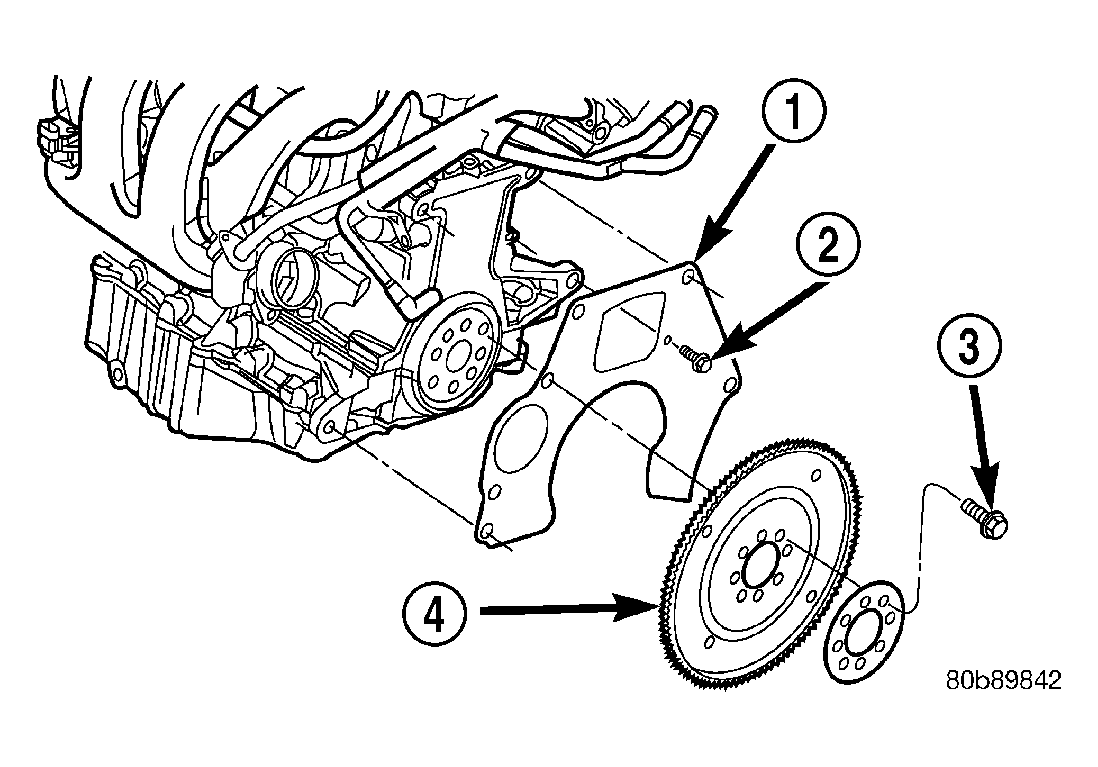

  1. Position the drive plate on crankshaft. See Figure.
  2. Apply Mopar(R) Lock & Seal Adhesive to flex plate bolt threads.
  3. Install the flex plate bolts and tighten to 95 N.m (70 ft. lbs.). See Figure.
  4. Install the transaxle (Refer to TRANSMISSION/TRANSAXLE/AUTOMATIC - 41TE - INSTALLATION) .
