Measuring Crankshaft End Play

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Mount a dial indicator to front of engine with the locating probe on nose of crankshaft. See Fig 1.
  2. Move crankshaft all the way to the rear of its travel.
  3. Zero the dial indicator.
  4. Move crankshaft all the way to the front and read the dial indicator. (Refer to ENGINE - SPECIFICATIONS)  for end play specification.

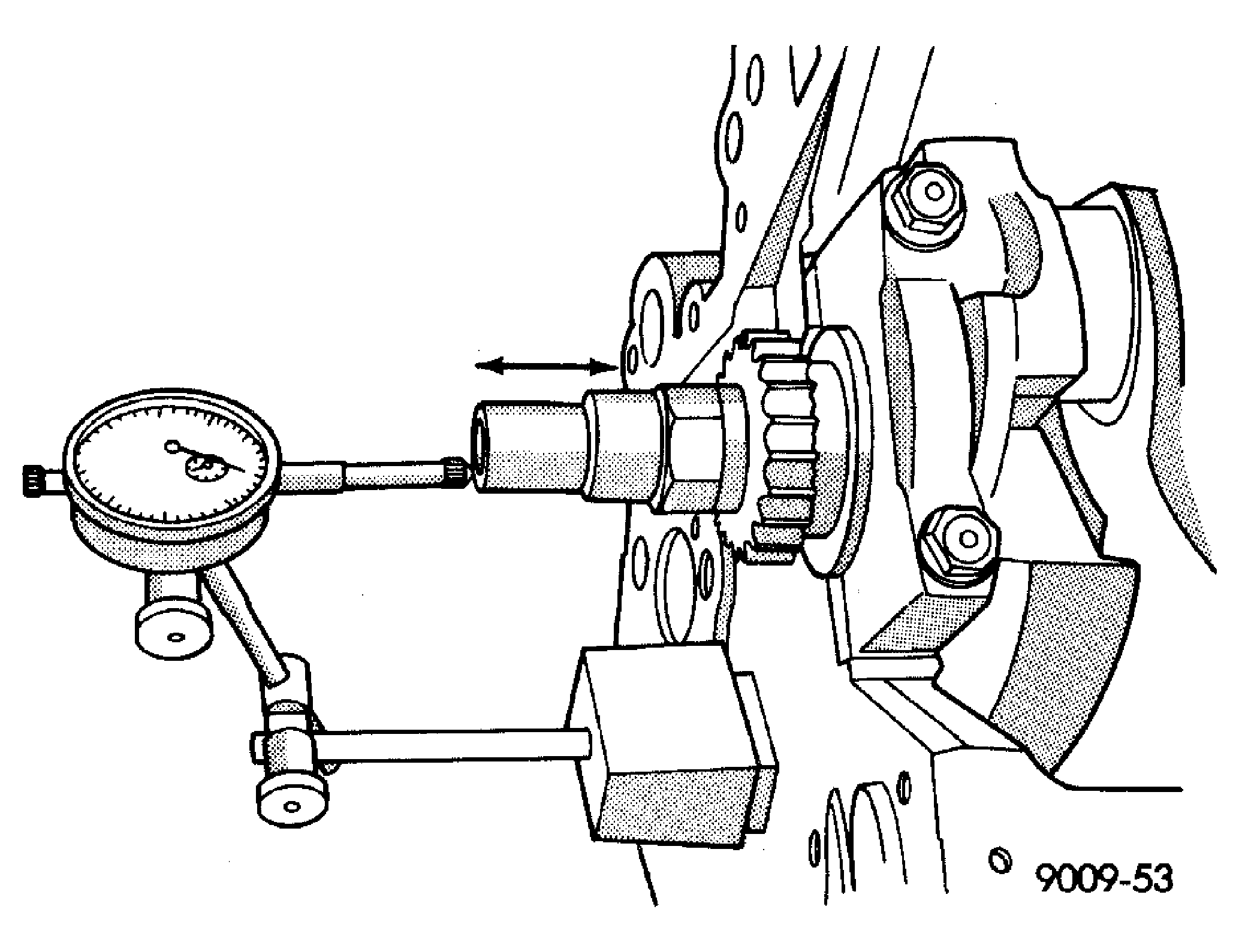

Fig 1: Checking Crankshaft End Play - Typical
GC0021207Courtesy of DAIMLERCHRYSLER CORP.
