Valve Timing Verification

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove number one spark plug.
  2. Using a dial indicator, set number one cylinder to TDC on the compression stroke.
  3. Remove the access plug from the front timing belt cover.
  4. Check the timing marks on the camshaft sprockets, they should align with each other. See Fig 1.

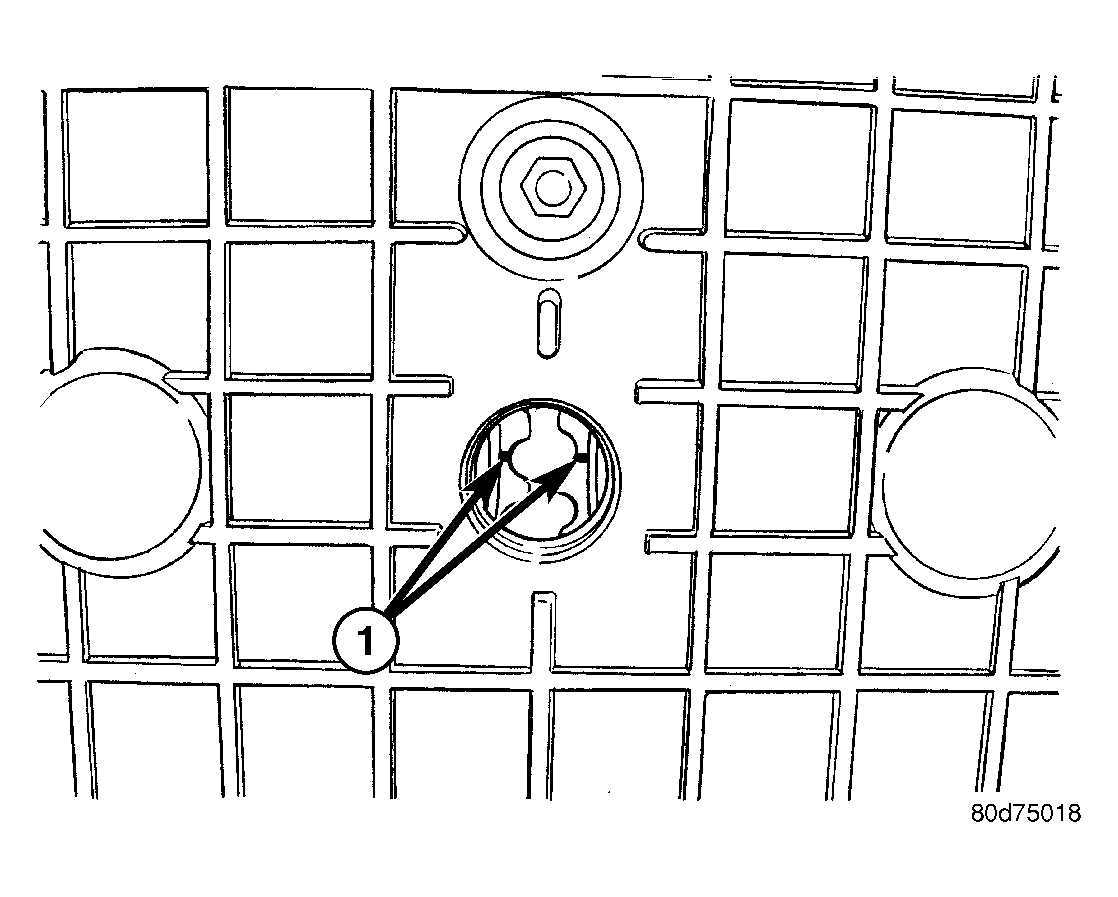

Fig 1: Camshaft Timing Check
GC0032075Courtesy of DAIMLERCHRYSLER CORP.
1 - CAMSHAFT TIMING MARKS SHOULD LINE UP
