Timing Belt TENSIONER & Pulley: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the timing belt (Refer to ENGINE/VALVE TIMING/TIMING BELT AND SPROCKETS - REMOVAL)  .
  2. Remove bolts attaching the timing belt tensioner assembly to engine.
  3. Remove the timing belt tensioner assembly. See Fig 1.

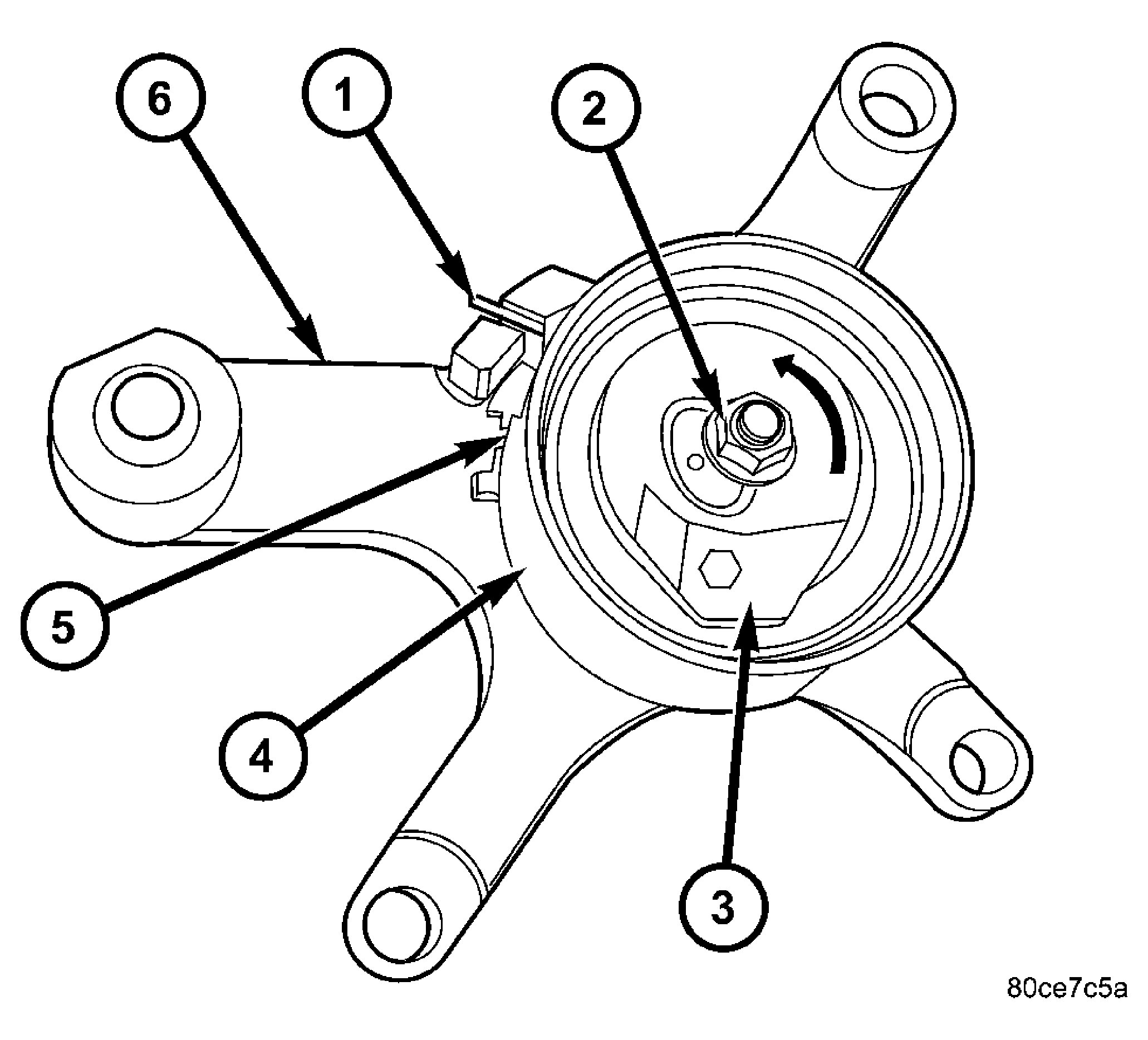

Fig 1: Timing Belt Tensioner Assembly
GC0021160Courtesy of DAIMLERCHRYSLER CORP.
1 - SPRING TANG
2 - LOCK NUT
3 - TOP PLATE
4 - PULLEY
5 - SETTING NOTCH
6 - BRACKET
