Rear Cover

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install rear cover and tighten bolts to 12 N.m (105 in. lbs.).

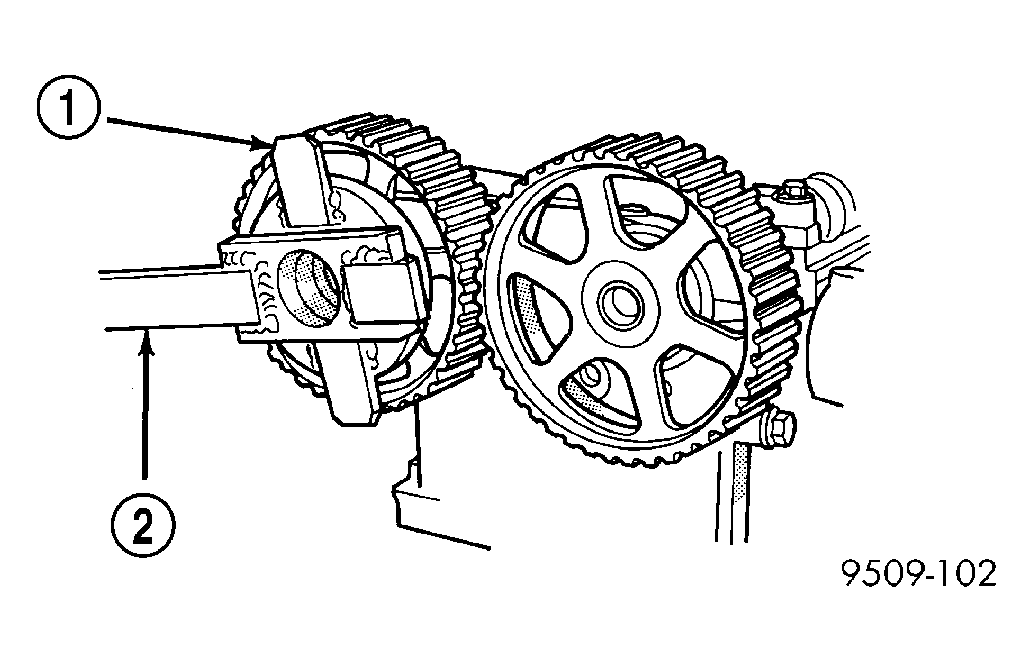

  2. Install camshaft sprockets. While holding sprockets with Special Tools C-4687 and Adaptor C-4687-1, tighten attaching bolts to 115 N.m (85 ft. lbs.). See Figure.
  3. Install timing belt idler pulley.
  4. Install timing belt tensioner assembly (Refer to ENGINE/VALVE TIMING/TIMING BELT TENSIONER & PULLEY - INSTALLATION)  .
  5. Install timing belt (Refer to ENGINE/VALVE TIMING/TIMING BELT AND SPROCKETS - INSTALLATION)  .
  6. Install front cover.
