Crankshaft Sprocket
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect negative battery cable.
- Remove timing belt (Refer to ENGINE/VALVE TIMING/TIMING BELT AND SPROCKETS - REMOVAL) .

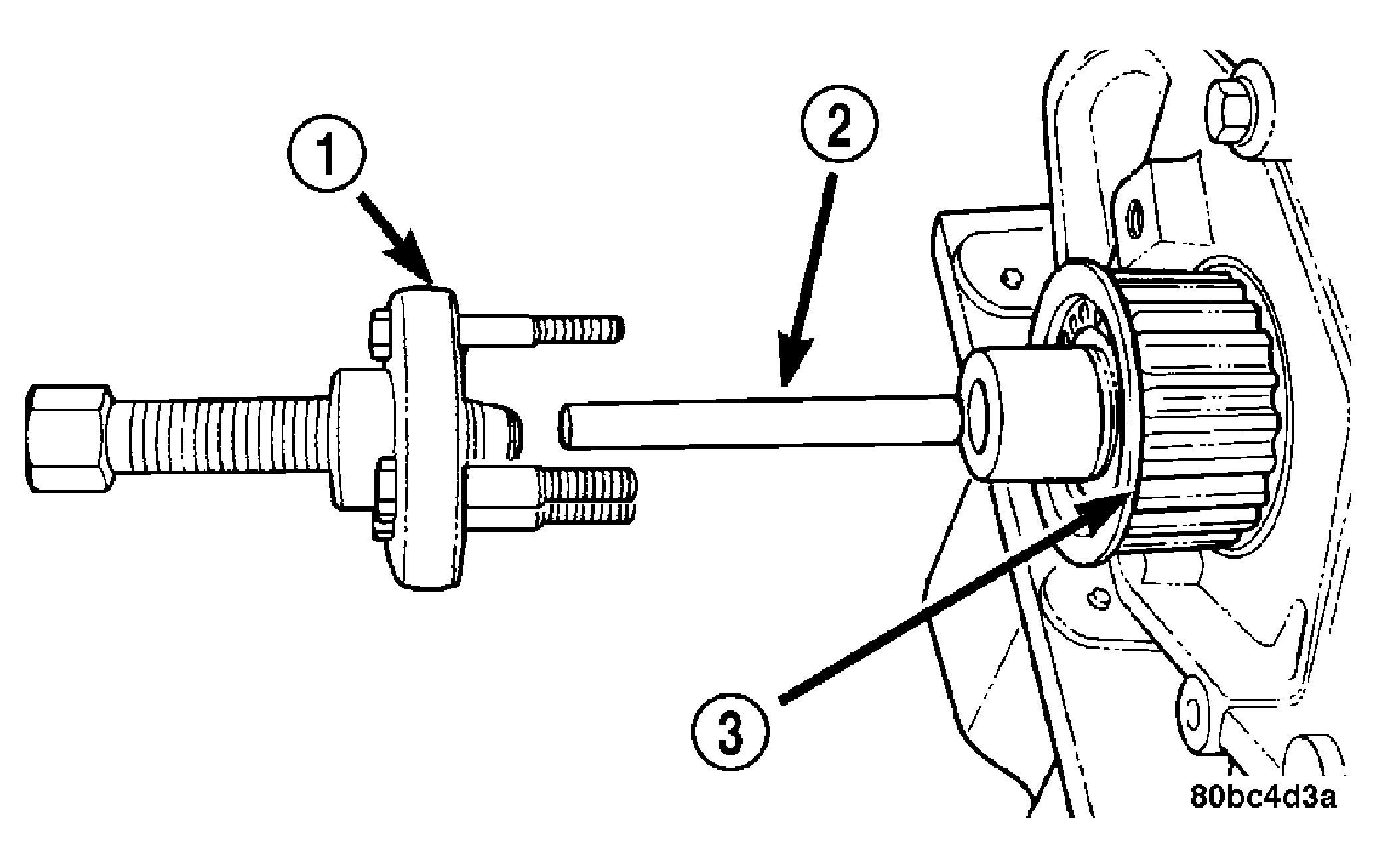

- Remove crankshaft sprocket using Special Tools 6793 and insert C-4685-C2. See Fig 1.
| 1 - SPECIAL TOOL 6793 |
| 2 - SPECIAL TOOL C-4685-C2 |
| 3 - CRANKSHAFT SPROCKET |
