Crankshaft Sprocket

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: The crankshaft sprocket is set to a predetermined depth from the factory for correct timing belt tracking. If removed, use of Special Tool 6792 is required to set the sprocket to original installation depth. An incorrectly installed sprocket will result in timing belt and engine damage.
  1. Install crankshaft sprocket using Special Tool 6792. See Fig 1.

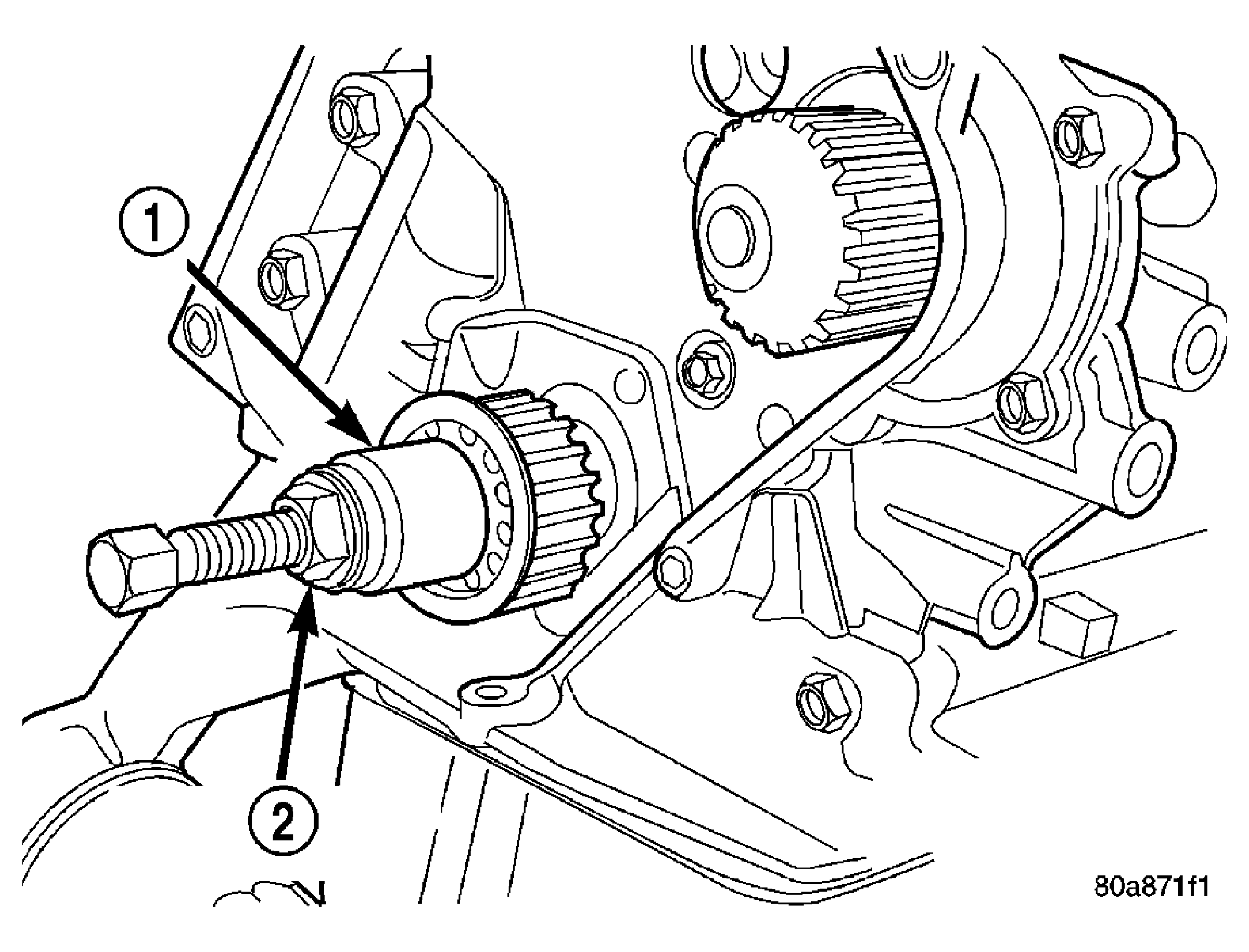

    Fig 1: Crankshaft Sprocket-Installation
    GC0032085Courtesy of DAIMLERCHRYSLER CORP.
    1 - SPECIAL TOOL 6792
    2 - TIGHTEN NUT TO INSTALL
  2. Install timing belt (Refer to ENGINE/VALVE TIMING/TIMING BELT AND SPROCKETS - INSTALLATION)  .
  3. Connect negative battery cable.
