Rocker Arms: Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate rocker arm with clean engine oil.

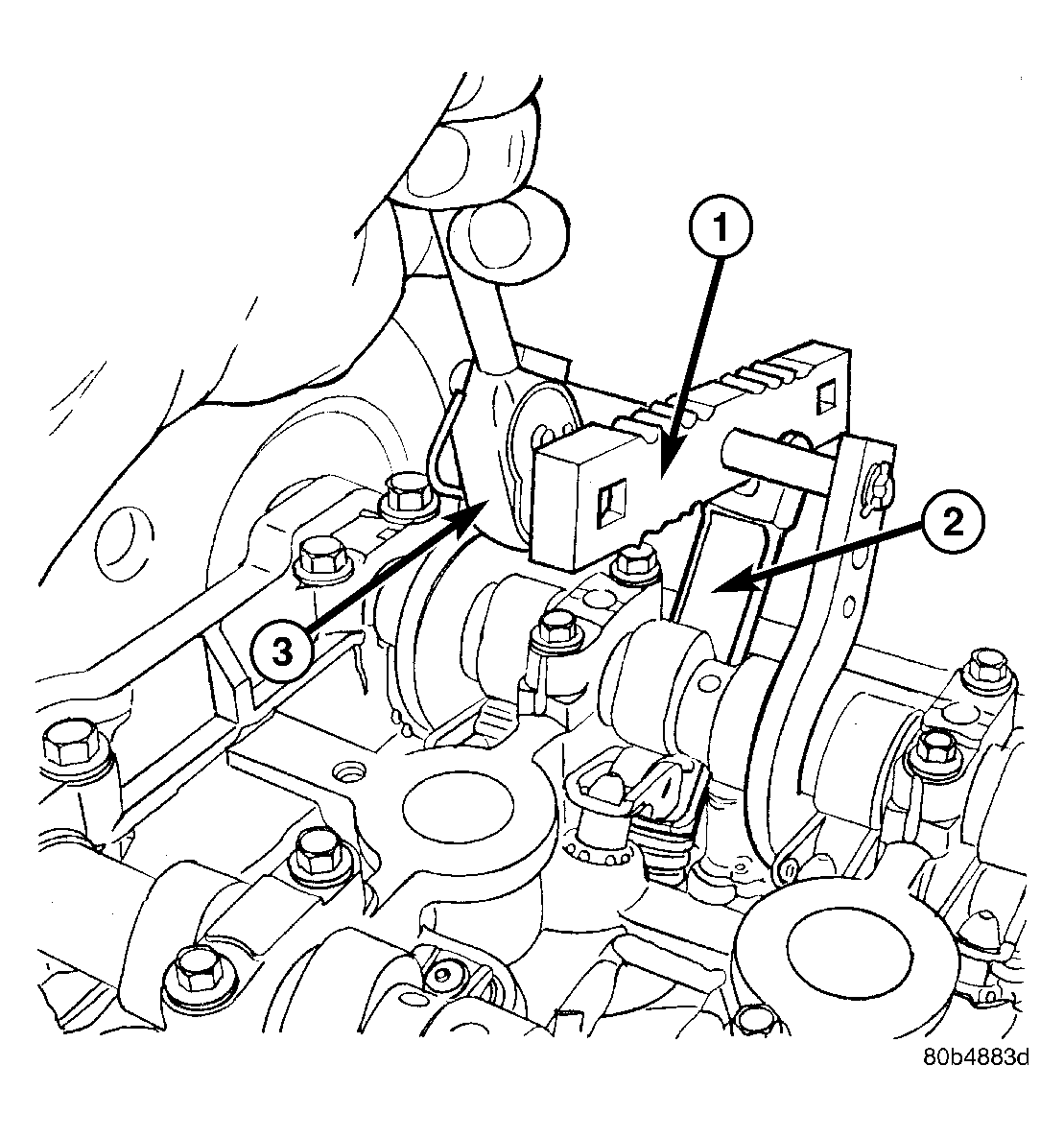

  2. Using Special Tools 8215-A and 8436 slowly depress valve assembly until rocker arm can be installed on the hydraulic lifter and valve stem. See Figure.
  3. Repeat installation procedure for each rocker arm.
  4. Install spark plugs.
  5. Install cylinder head cover (Refer to ENGINE/CYLINDER HEAD/CYLINDER HEAD COVER(S)  - INSTALLATION).
  6. Connect negative battery cable.
