Piston Rings: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a suitable ring expander, remove upper and intermediate piston rings. See Fig 1.

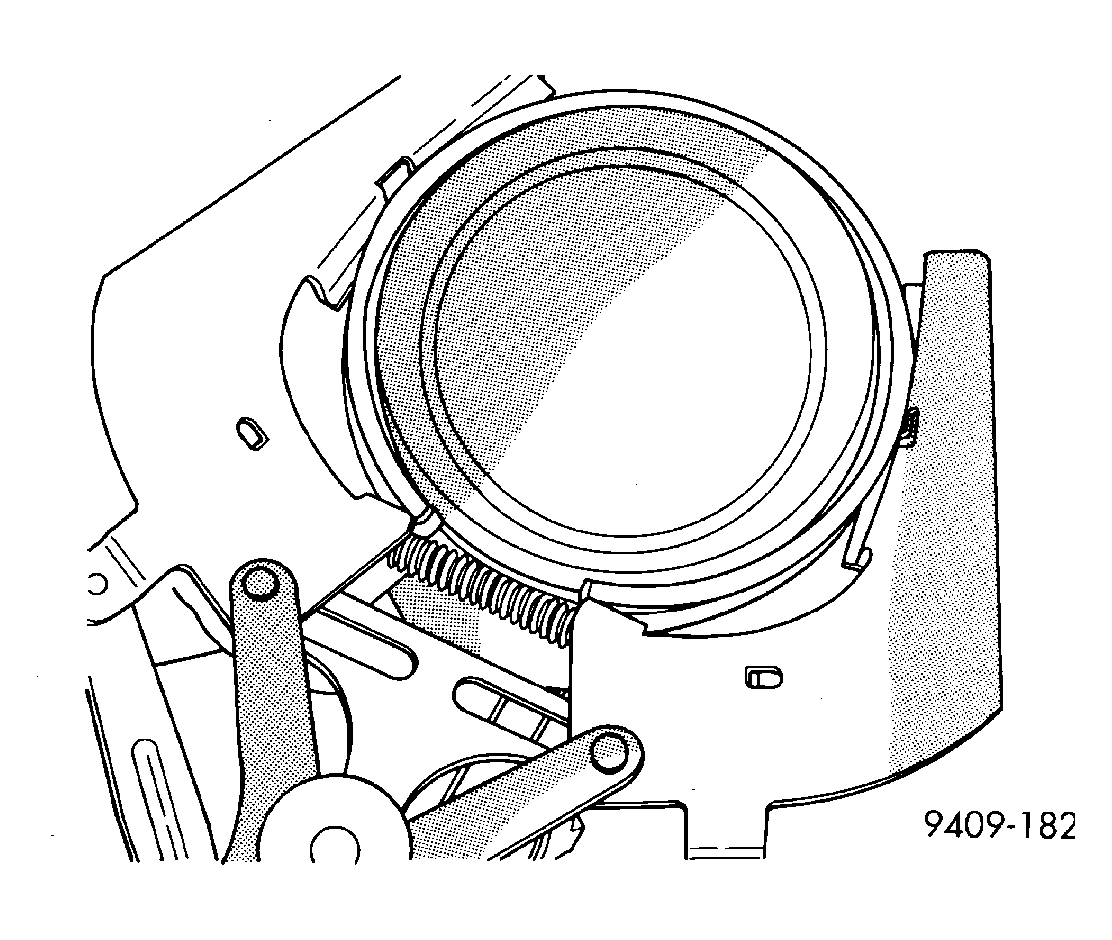

    Fig 1: Piston Rings-Removing and Installing
    GC0021094Courtesy of DAIMLERCHRYSLER CORP.
  2. Remove the upper oil ring side rail, lower oil ring side rail and then oil ring expander from piston.
  3. Clean ring grooves of any carbon deposits.
