Oil Pump: Assembly

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install oil pump rotors. See Figure.
  2. Install oil pump cover and screws. See Figure. Tighten screws to 12 N.m (105 in. lbs.).

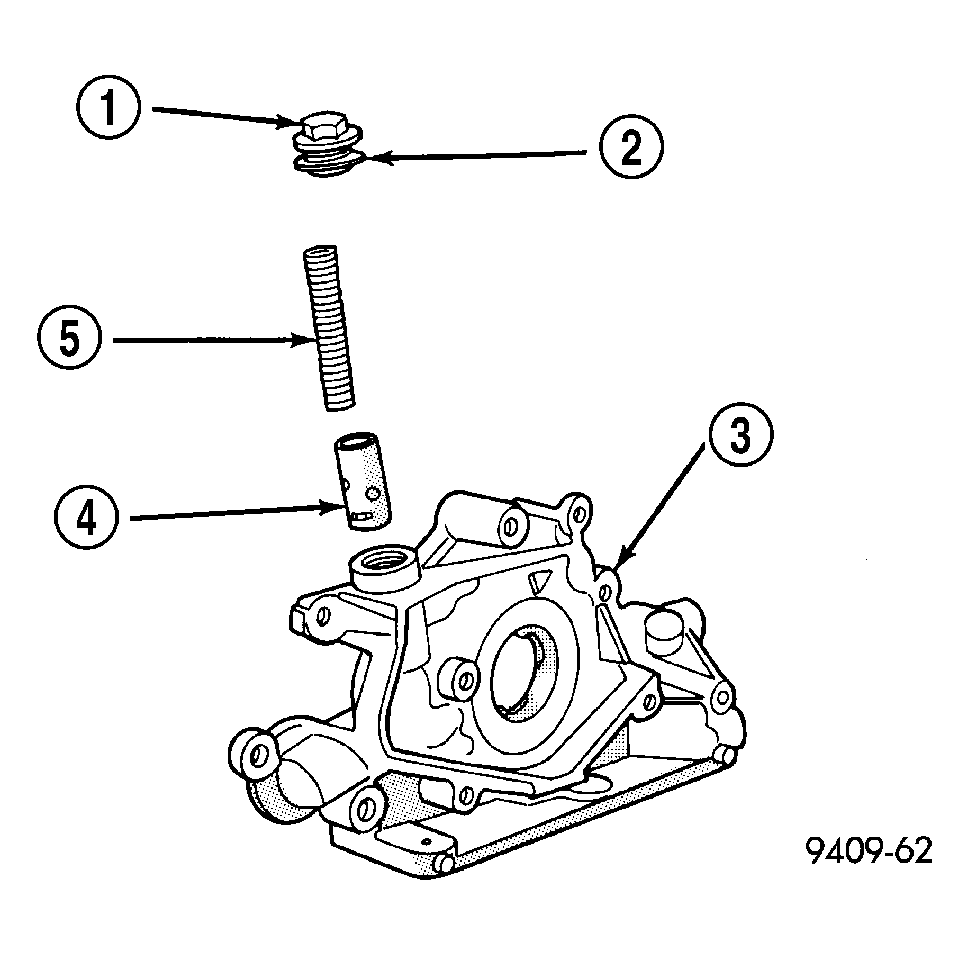

    CAUTION: Oil pump pressure relief valve must be installed as shown in Figure or serious damage may occur.
  3. Install spring and relief valve. See Figure.
  4. Install threaded plug and gasket to the oil pump. See Figure. Tighten plug to 41 N.m (30 ft. lbs.).
