Exhaust Manifold: Removal
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect negative battery cable.
- Raise vehicle on hoist.
- Remove complete exhaust system (Refer to EXHAUST SYSTEM - REMOVAL) .
- Remove rear engine mount and transaxle bracket.

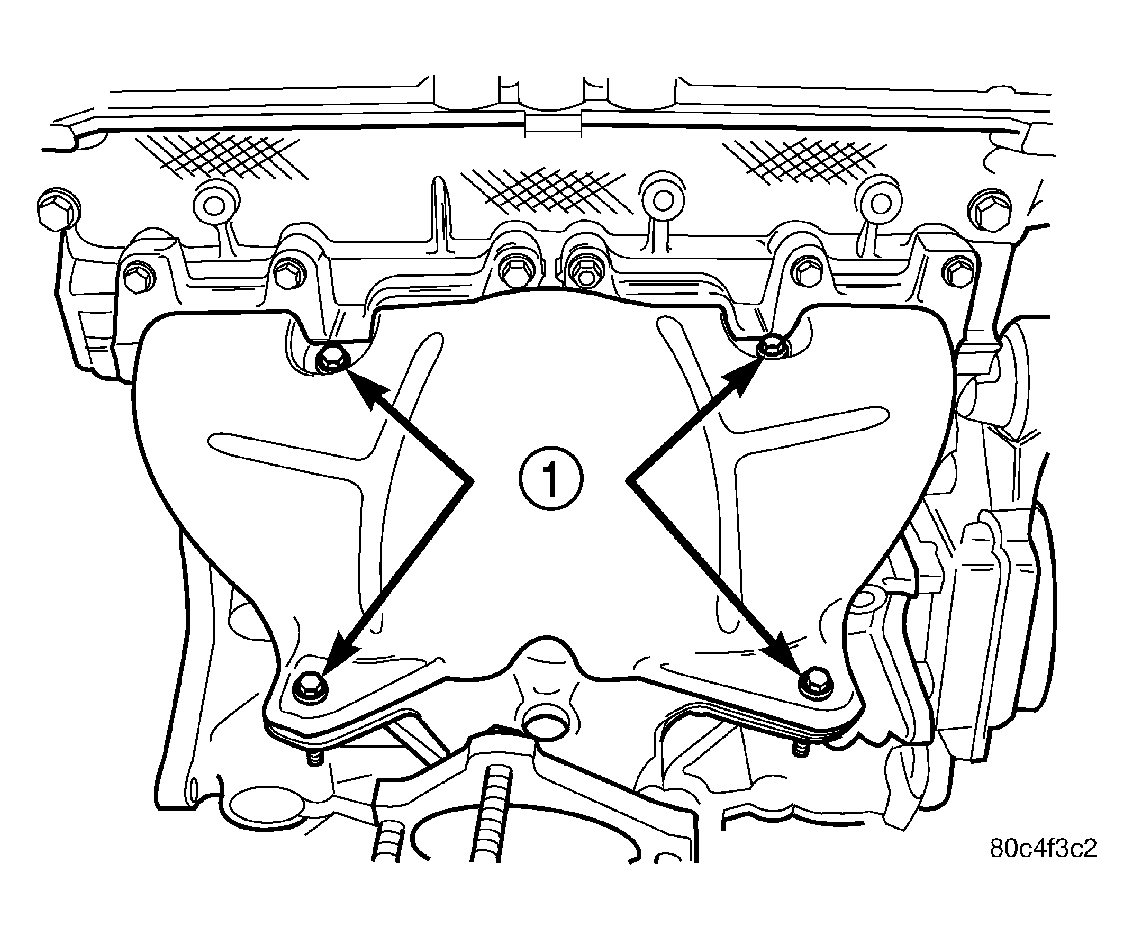

- Remove exhaust manifold heat shield. See Fig 1.
- Disconnect oxygen sensor electrical connector.
- Remove exhaust manifold retaining fasteners and remove exhaust manifold.
- Remove and discard manifold gasket.
| 1 - BOLTS |
