Engine 2.0L DOHC: Description

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

The 2.0 Liter (122 cu. in.) in-line four cylinder engine is a dual over-head camshaft with hydraulic lash adjusters and four valves per cylinder design. See Fig 1. The engine does not have provisions for a free wheeling valvetrain.

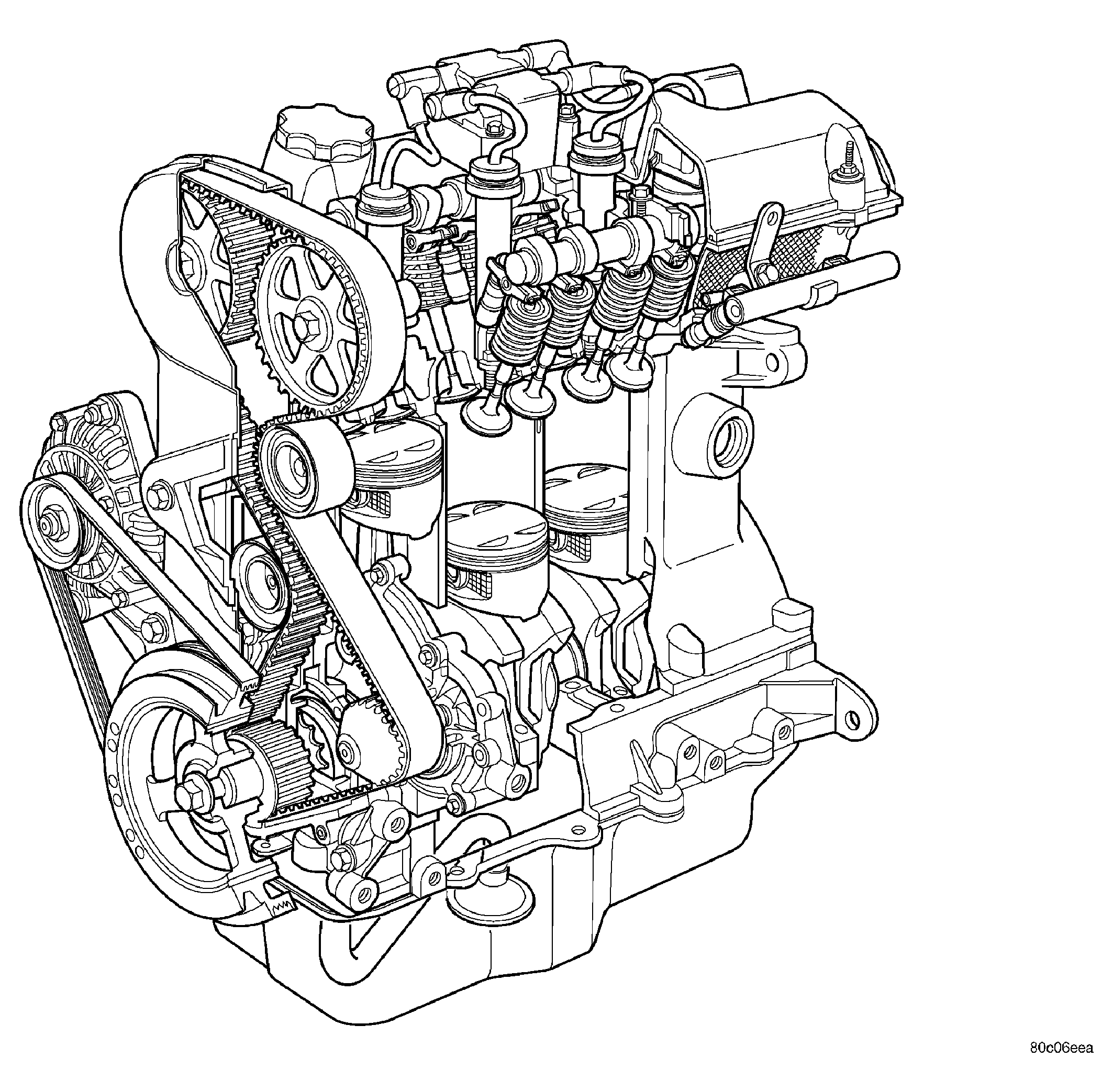

Fig 1: 2.0L DOHC Engine

Courtesy of DAIMLERCHRYSLER CORP.

The cylinders are numbered from front of the engine to the rear. The firing order is 1-3-4-2.

The engine identification number is located on the left side of the engine block at the bed plate/engine block parting line near the crankshaft position sensor. See Fig 2.

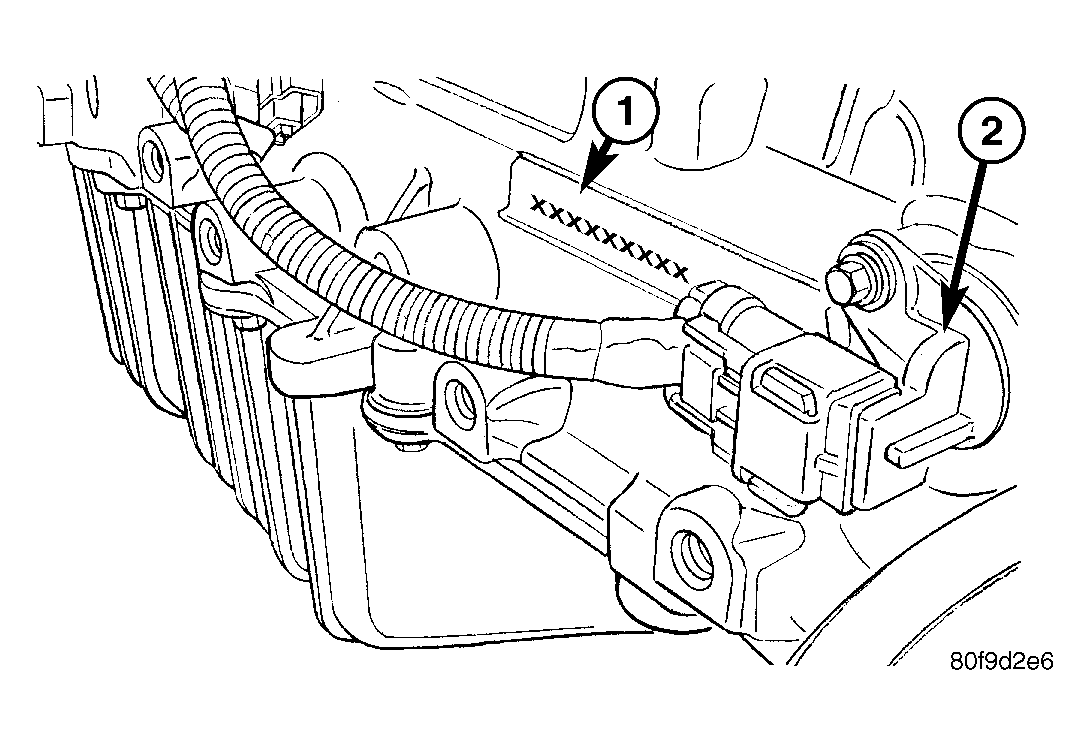

Fig 2: Engine Identification

Courtesy of DAIMLERCHRYSLER CORP.

1 - ENGINE IDENTIFICATION LOCATION

2 - CRANKSHAFT POSITION SENSOR
