Standard Procedure - Crankshaft End Play

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Mount a dial indicator to front of engine, locating probe on nose of the crankshaft. See Fig 1.

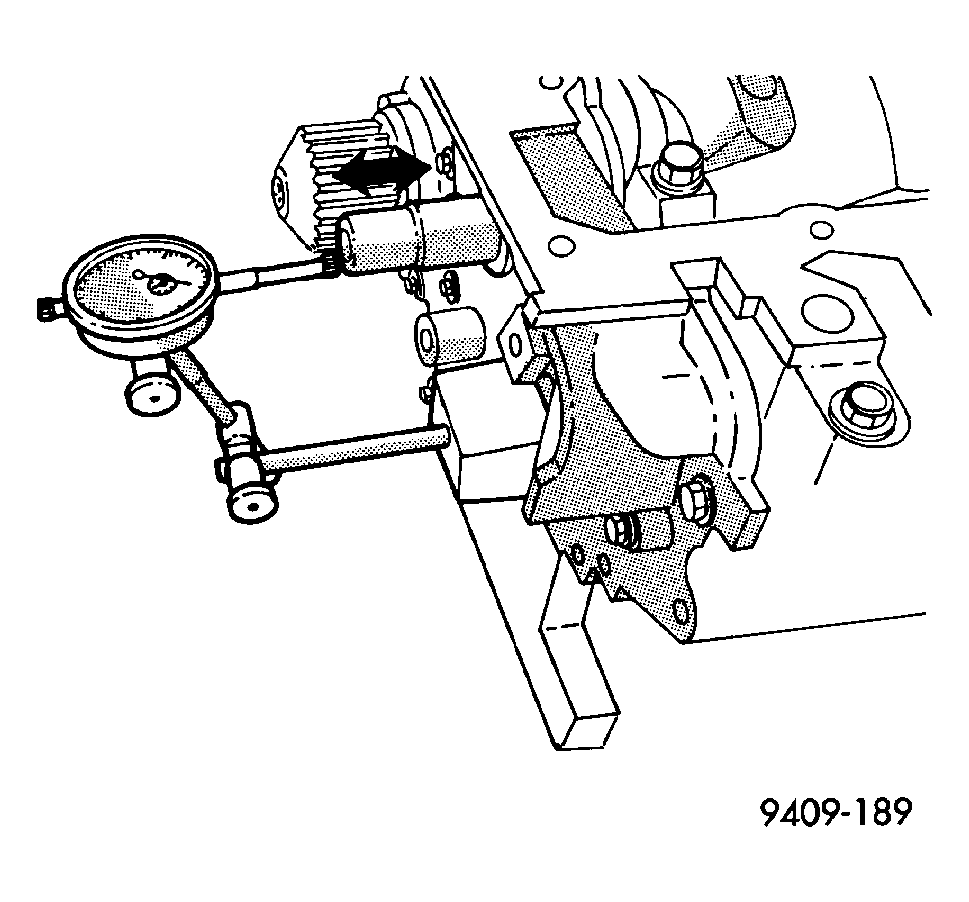

    Fig 1: Checking Crankshaft End Play - Typical
    GC0021064Courtesy of DAIMLERCHRYSLER CORP.
  2. Move crankshaft all the way to the rear of its travel.
  3. Zero the dial indicator.
  4. Move crankshaft all the way to the front of its travel and read the dial indicator. For crankshaft specifications (Refer to ENGINE - SPECIFICATIONS)
