Section 68 (2.0L DOHC Engine (Service Information) - Except Coupe): Camshaft(S): Removal
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
- Remove cylinder head cover (Refer to ENGINE/CYLINDER HEAD/CYLINDER HEAD COVER(S) - REMOVAL).
- Remove camshaft position sensor and camshaft target magnet (Refer to ELECTRICAL/IGNITION CONTROL/CAMSHAFT POSITION SENSOR - REMOVAL) .
- Remove timing belt (Refer to ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND SPROCKETS - REMOVAL) .
- Remove camshaft sprockets and rear timing belt cover (Refer to ENGINE/VALVE TIMING/TIMING BELT / CHAIN COVER(S) - REMOVAL).

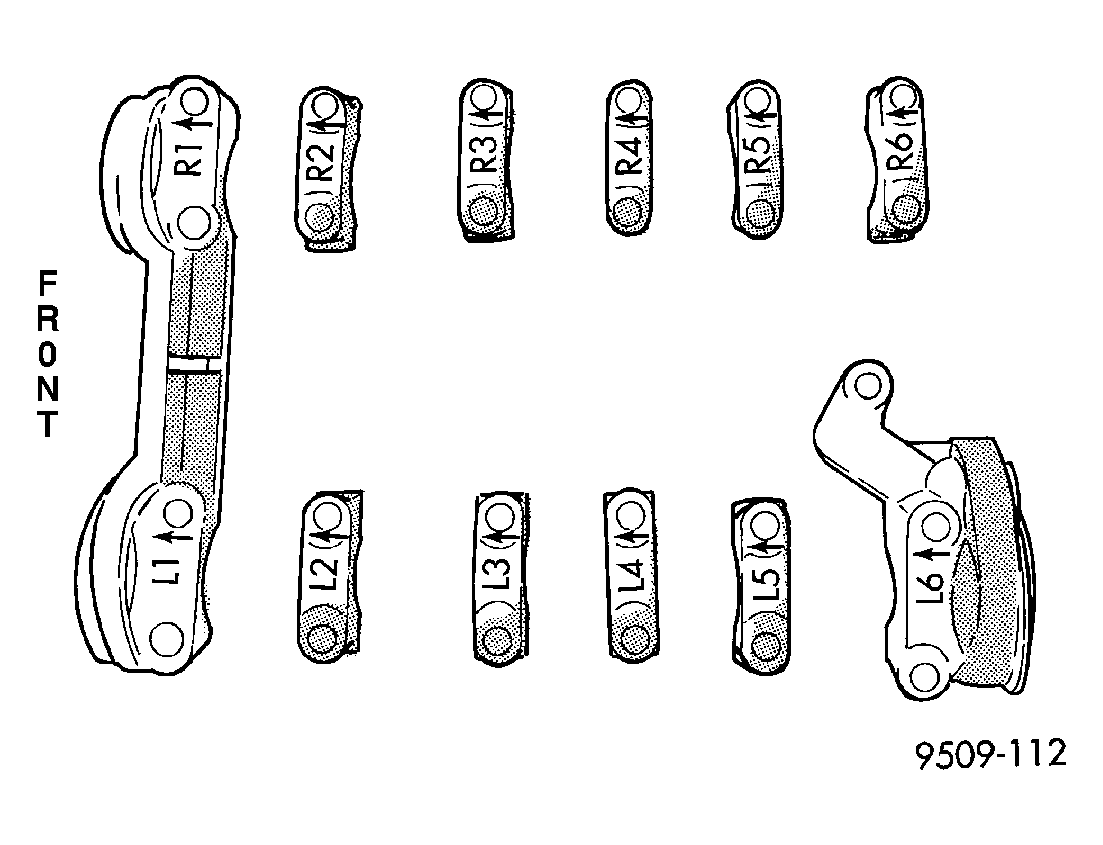

- Bearing caps are identified for location. Remove the outside bearing caps first. See Fig 1.
- Loosen the camshaft bearing cap attaching fasteners in sequence shown one camshaft at a time. See Fig 2.CAUTION: Camshafts are not interchangeable. The intake cam number 6 thrust bearing face spacing is wider.
- Identify the camshafts before removing from the head. The camshafts are not interchangeable.
- Remove camshafts from cylinder head.
NOTE:
If removing rocker arms, identify for reinstallation in the original position.

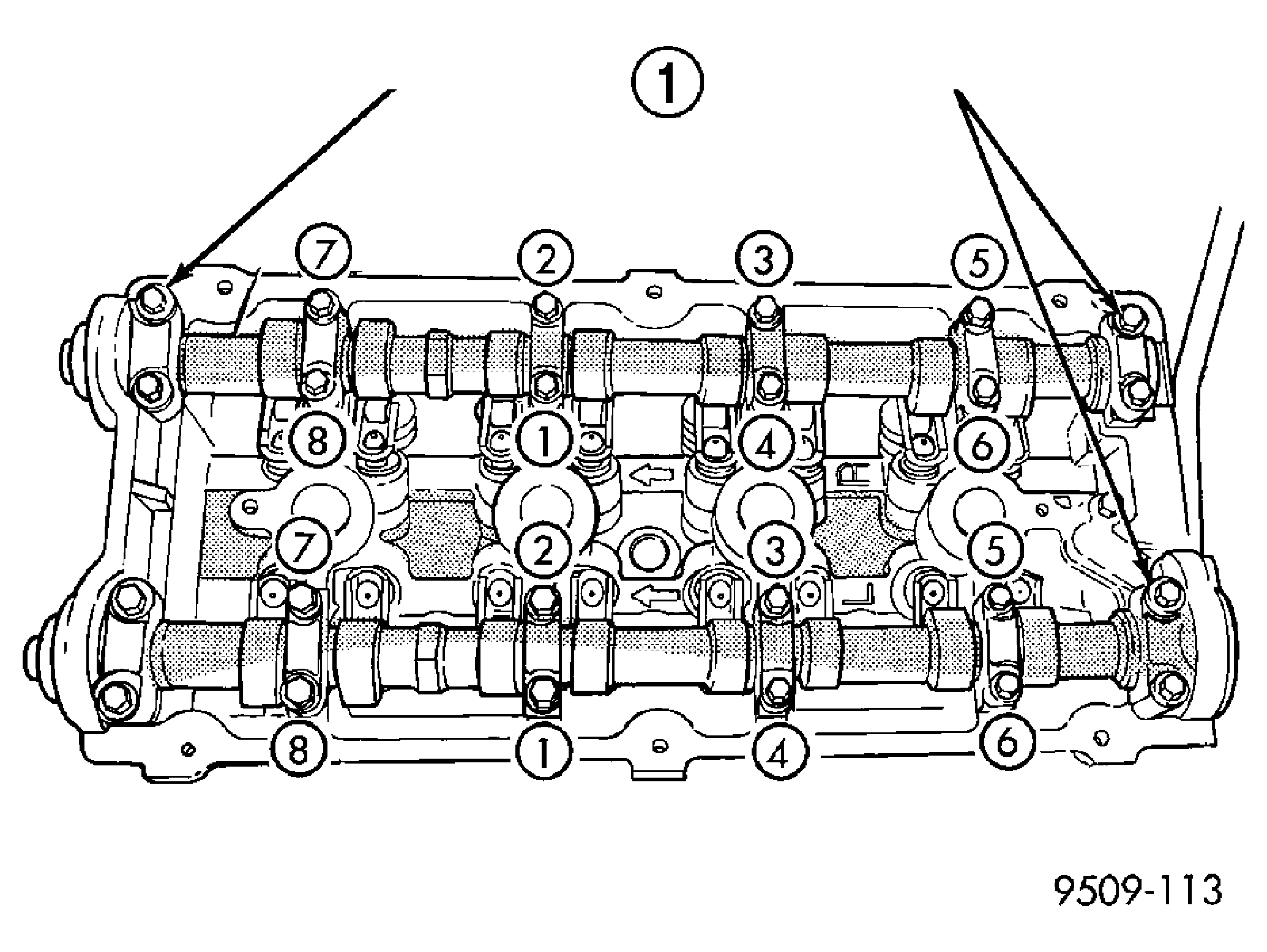

| 1 - REMOVE OUTSIDE BEARING CAPS FIRST |
