Camshaft Oil Seal(S): Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Remove timing belt. (Refer to ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND SPROCKETS - REMOVAL)
Hold each camshaft sprocket with Special Tool C-4687 and adaptor C-4687-1, while removing center bolt. See Fig 1.
Remove camshaft sprockets.
Remove rear timing belt cover. (Refer to ENGINE/VALVE TIMING/TIMING BELT / CHAIN COVER(S) - REMOVAL)
Remove camshaft seal using Special Tool C-4679A. See Fig 2.

Fig 1: Camshaft Sprocket - Removal/Installation

Courtesy of DAIMLERCHRYSLER CORP.

1 - ADAPTER C-4687-1

2 - SPECIAL TOOL C-4687

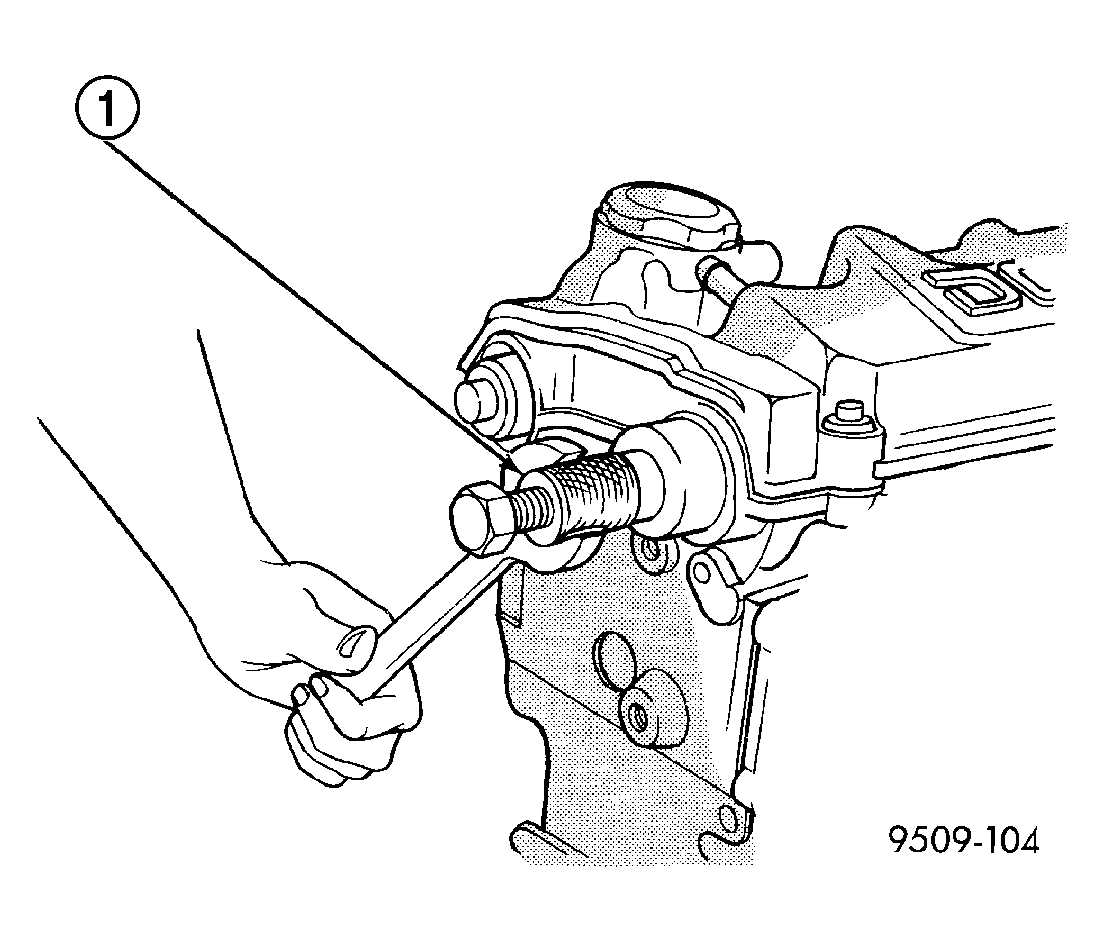

Fig 2: Camshaft Oil Seal - Removal With C-4679A

Courtesy of DAIMLERCHRYSLER CORP.

1 - SPECIAL TOOL C-4679A

CAUTION: Do not nick shaft seal surface or seal bore.
